Запчасти Case 480C (296) - PARKER LOADER CONTROL VALVE, LOADER LIFT SPOOL (35) - HYDRAULIC SYSTEMS

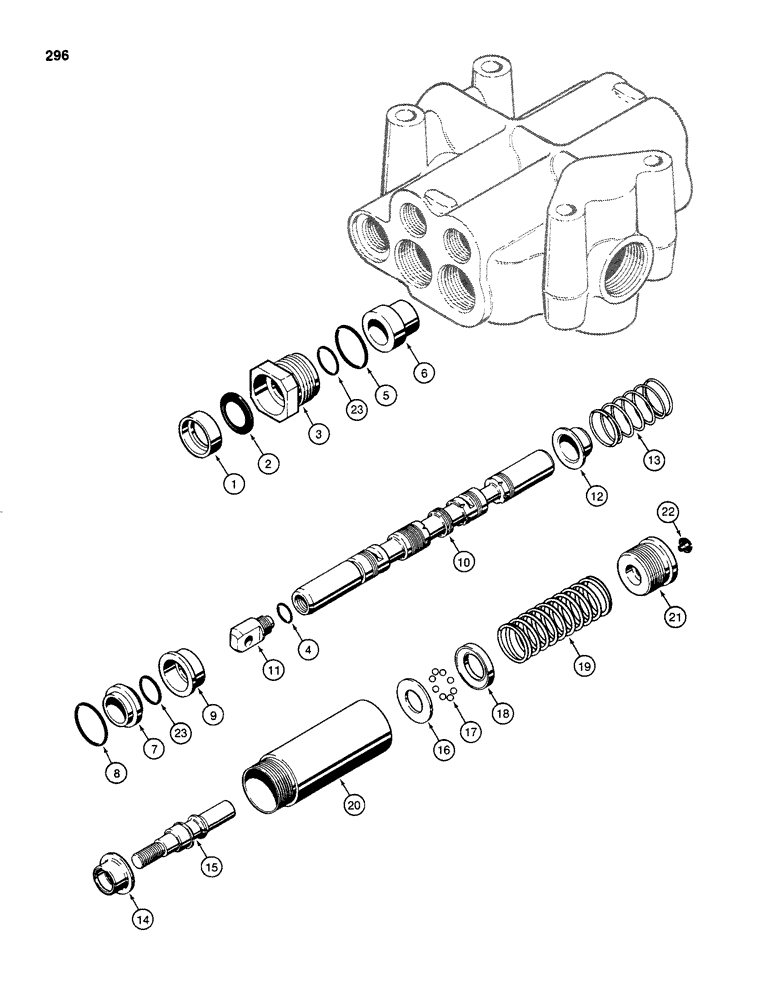

Схема запчастей Case 480C - (296) - PARKER LOADER CONTROL VALVE, LOADER LIFT SPOOL (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

N6592

VALVE

SPOOL ASSEMBLY - loader lift, Includes: Ref. 1 - 23

1шт.

1

D37153

RETAINER

- wiper ring

1шт.

2

A14527

SCRAPER

RING - wiper

1шт.

3

D37152

RETAINER

GLAND - spool

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - small, gland

1шт.

5

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

- large, gland

1шт.

6

D37076

SLEEVE

- spool, eye end

1шт.

7

D33857

RETAINER

- O-ring, inner

1шт.

8

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- spool

1шт.

9

D33856

RETAINER

- O-ring, outer

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - four position

1шт.

11

NSS

NOT SOLD SEPARAT

EYE - spool

1шт.

12

A14533

BRONZE BUSHING

SEAT - spring, upper

1шт.

13

N6013

SPRING

CENTERING SPRING - spool

1шт.

14

A16881

SEAT

- spring, lower

1шт.

15

N6014

STUD

- detent

1шт.

16

L30455

WASHER

- detent

1шт.

17

211-8

BALL,9/32" Dia

- detent 9/32" Dia

8шт.

18

N6015

CAM

- detent

1шт.

19

L30626

SPRING

- detent

1шт.

20

L30454

CAP

HOUSING - detent adjustment

1шт.

21

N6643

PLUG

- detent adjustment

1шт.

22

N6644

PLUG

- check

1шт.

23

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- spool seal, control valve body

2шт.

Выбрано товаров: 24
