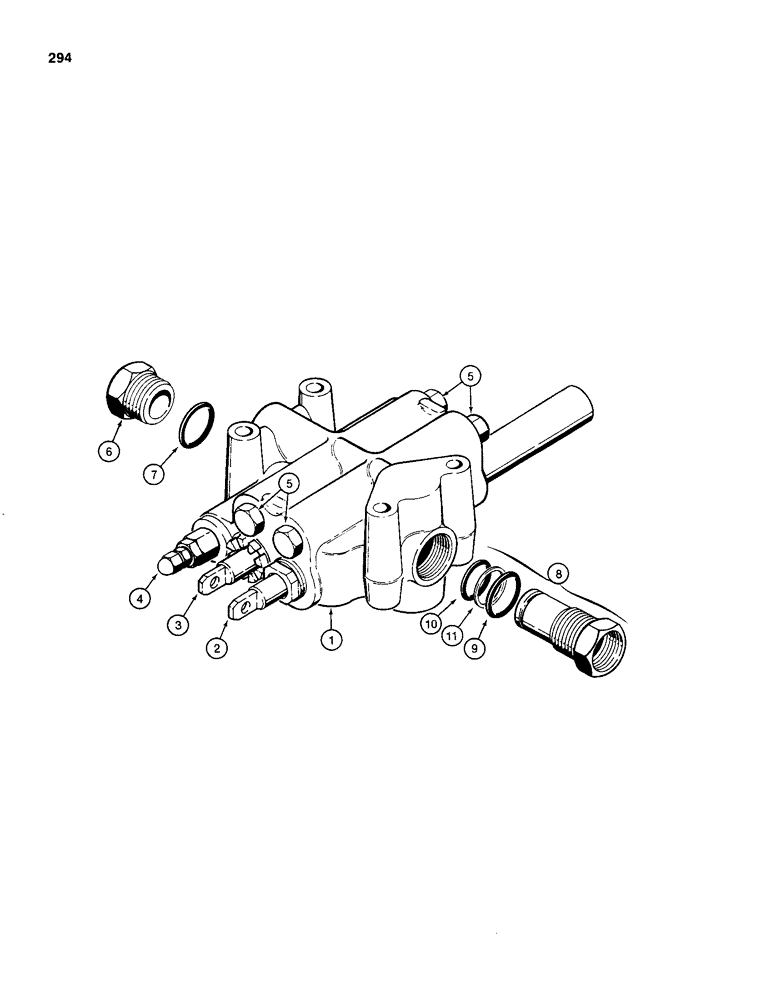

Запчасти Case 480C (294) - PARKER LOADER CONTROL VALVE, USED ON MODELS WITH SINGLE CONTROL LEVER (35) - HYDRAULIC SYSTEMS

1

D99093

VALVE

CONTROL VALVE - loader, two-spool, Parker No. VDSP22DF67, Includes: Ref. 2 - 11

1шт.

2

N6592

VALVE

SPOOL - loader lift, parts list Figure 296

1шт.

3

D37050

SPOOL

- loader bucket, parts list Figure 298

1шт.

4

NSS

NOT SOLD SEPARAT

MAIN RELIEF VALVE - control valve, parts list Figure 300

1шт.

5

NSS

NOT SOLD SEPARAT

LOAD CHECK VALVE - control valve, parts list Figure 302

4шт.

6

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref. 7 Hex Soc, 1 1/16"-12 ORB

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

8

D89496

FITTING

SLEEVE - power beyond, Includes: Ref. 9 - 11

1шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large

1шт.

10

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- small

1шт.

11

L31332

BACK-UP RING

BACKUP RING - O-ring

1шт.
