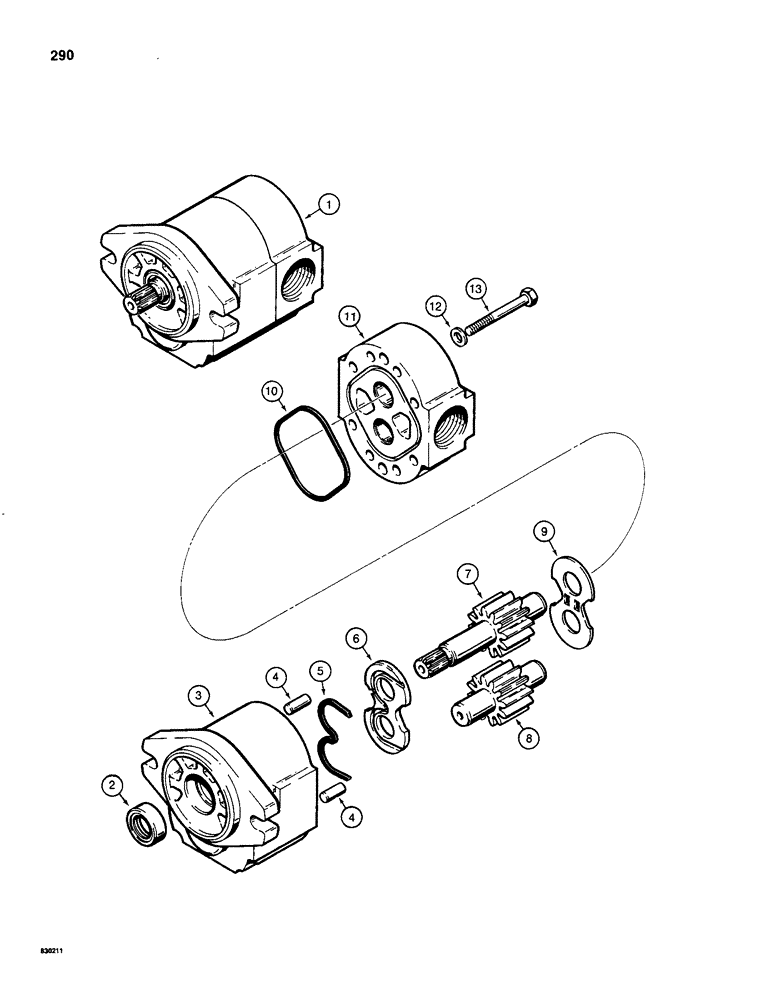

Запчасти Case 480C (290) - D73079 WARNER HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

D73079

PUMP

ASSEMBLY - hydraulic, complete, Warner Motive S30S-24EJ5-3-L, Includes: Ref. 2 - 13

1шт.

For pump identification see name plate on pump, check make and model number of pump before ordering parts, see other pump options on Figures 284-288.

1шт.

2

D73624

SEAL

- shaft

1шт.

3

D74415

BODY

HOUSING AND COVER - shaft end

1шт.

4

D58188

PIN

DOWEL PIN -, Serial Range: cover-housing

2шт.

5

D73620

SEAL

- load

1шт.

6

D73619

PLATE

- wear

1шт.

7

D74416

GEAR

- drive

1шт.

8

D74417

GEAR

- driven

1шт.

9

D73623

PLATE

- thrust

1шт.

10

D73622

SPECIAL RING

SEAL - square section

1шт.

11

D73615

COVER

- port end

1шт.

12

D74441

WASHER

- special

8шт.

13

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

8шт.
