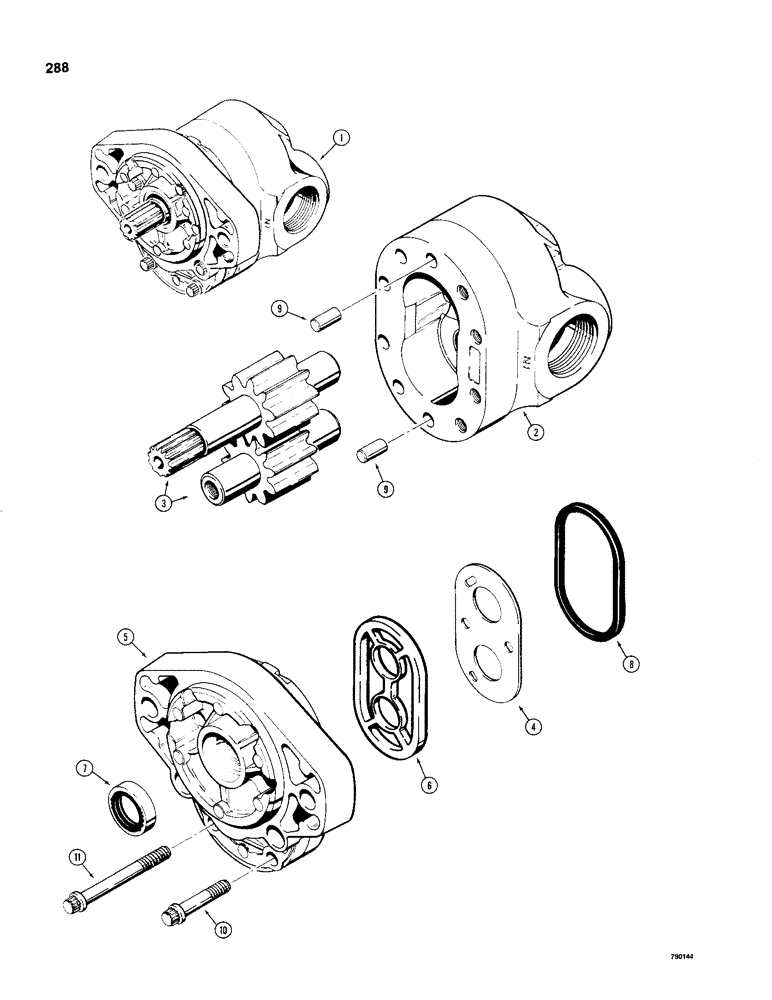

Запчасти Case 480C (288) - D49241 AND D80083 TRW HYDRAULIC PUMPS (35) - HYDRAULIC SYSTEMS

1

D49241

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, complete, TRW No. D19-920178-00 or GP92033, for service order D53690, Includes: Ref. 2 - 11

1шт.

D53690 Service Replacement Pump can be either a Cessna or TRW Pump as shown on Figures 286 or 288. For pump identification see name plate on pump, check make and model number of pump before ordering parts, see other pump options on Figures 284, 286, and 290. For applications where increased noise control is desired, D73079 pump shown on Figure 290 can be used.

1шт.

1

D80083

PUMP

ASSEMBLY - hydraulic, complete, TRW No. GP92034, for service order D53690, Includes: Ref. 2 - 11

1шт.

D53690 Service Replacement Pump can be either a Cessna or TRW Pump as shown on Figures 286 or 288. For pump identification see name plate on pump, Check make and model number of pump before ordering parts, See other pump options on Figures 284, 286, and 290. For applications where increased noise control is desired, D73079 pump shown on Figure 290 can be used.

1шт.

D53690R

REMAN-HYD PUMP

480C, Reman for New P/N D80083

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

3

D50103

GEAR

SET - drive and driven

1шт.

D83064

COVER ASSY

KIT - cover and seal, Includes: Ref. 4 - 9

1шт.

4

D50104

PLATE

- pressure

1шт.

Part of Seal Repair Kit P/N D83065

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - drive shaft end

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - cover to pressure plate, can be a one piece or three piece seal

1шт.

Part of Seal Repair Kit P/N D83065

1шт.

7

D52477

SEAL

- shaft

1шт.

Part of Seal Repair Kit P/N D83065

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - D-section, cover to body, replaces O-ring on some pumps

1шт.

Part of Seal Repair Kit P/N D83065

1шт.

9

NSS

NOT SOLD SEPARAT

DOWEL PIN - cover to gear housing

2шт.

10

166-48

SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 1-3/4"

3-4шт.

11

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 3-1/4"

4-5шт.

D83065

GASKET KIT

KIT - seal repair, Includes: Refs. 4, 6, 7, and 8 above

1шт.
