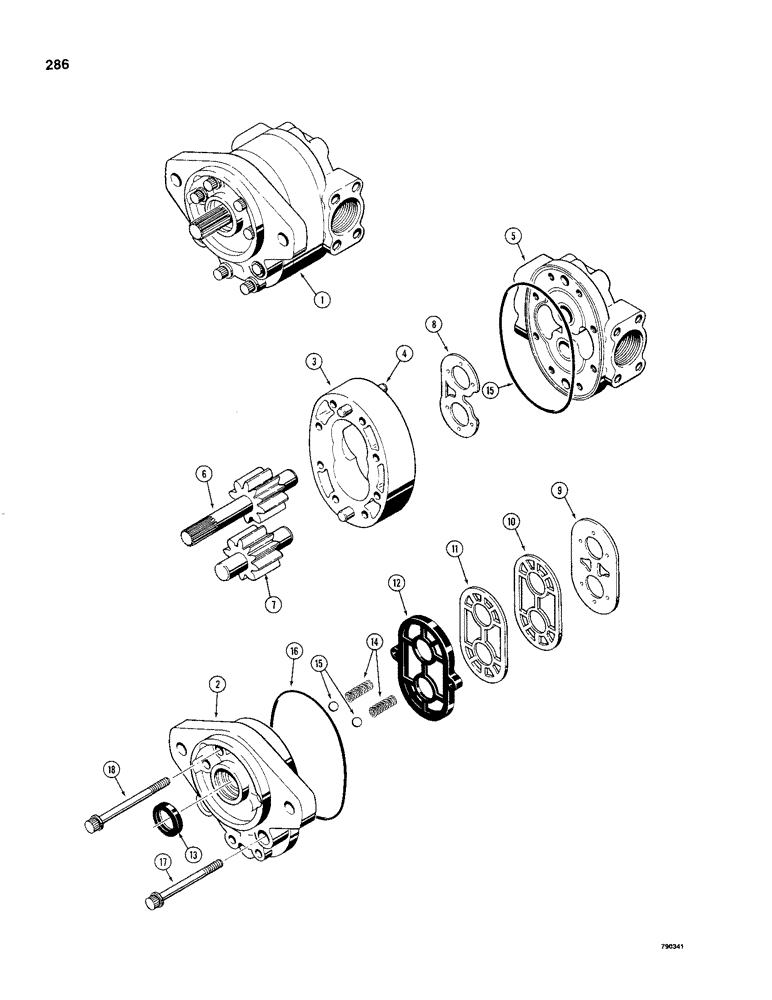

Запчасти Case 480C (286) - D48950 CESSNA HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

D48950

PUMP

ASSEMBLY - hydraulic, complete, Cessna No. 24505-LAD, for service order D53690, Includes: Ref. 2 - 18

1шт.

D53690R

REMAN-HYD PUMP

480C, Reman for New P/N D48950

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

D53690 Service Replacement Pump can be either a Cessna or TRW Pump as shown in Figures 286 or 288. For pump identification see name plate on pump. Check make and model number of pump before ordering parts. See other pump options in Figures 284, 288, and 290. For applications where increased noise control is desired, D73079 pump shown on Figure 290 can be used.

1шт.

2

D48879

COVER

- drive shaft end

1шт.

3

D56471

HOUSING

- gear

1шт.

4

D48882

PIN

DOWEL PIN - cover to gear housing

2шт.

5

D48883

COVER

- port end

1шт.

D48881

GEAR

SET - drive and driven, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

DRIVE GEAR - pump

1шт.

7

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - pump

1шт.

D59656

GASKET KIT

KIT - seal, Includes: Ref. 8 - 16

1шт.

8

A45358

PLATE

- thrust

1шт.

9

H335331

DIAPHRAGM

- pump

1шт.

10

H260935

GASKET

- protector

1шт.

11

H260927

GASKET

- backup

1шт.

12

H273912

SEAL

- diaphragm

1шт.

13

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- drive shaft

1шт.

14

D31403

SPRING

- ball retaining

2шт.

15

211-312

BALL,13/32" Dia

- steel

2шт.

16

H756221

O-RING,4.987" ID x 5.193" OD

- pump covers

2шт.

17

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 3-1/2"

4шт.

18

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 3-3/4"

4шт.
