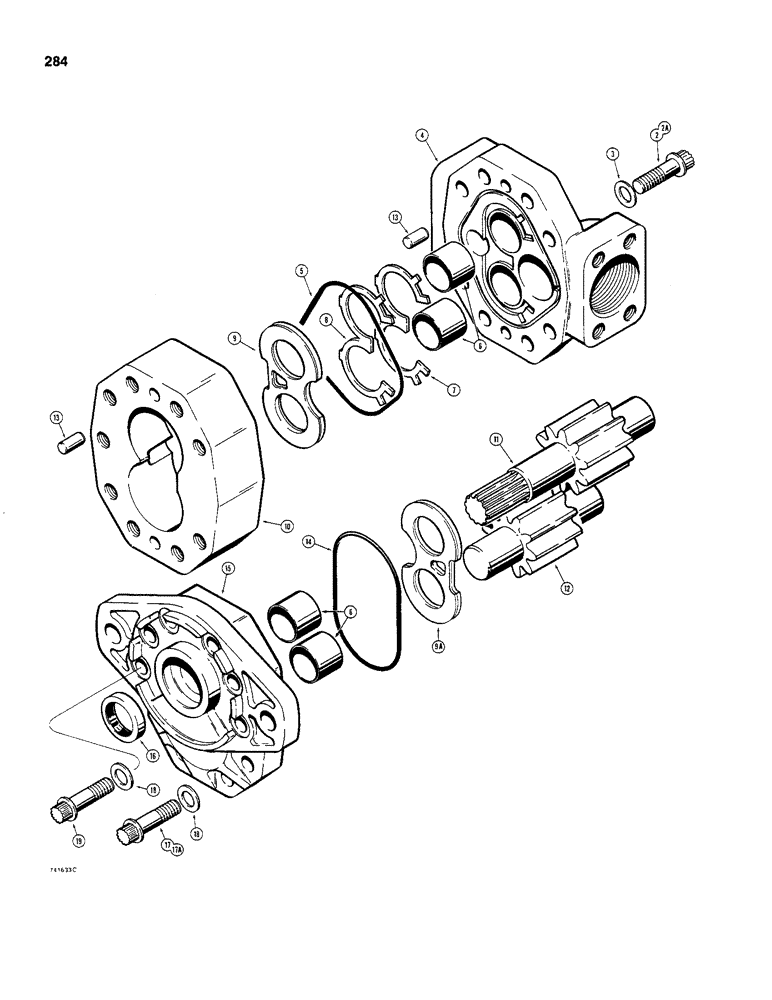

Запчасти Case 480C (284) - D58538 DANA HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

D58538

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, complete, DANA No. 1402-026-002, not illustrated assembled, Includes: Ref. 2 - 19

1шт.

For pump identification see name plate on pump, check make and model number of pump before ordering parts, see other pump options on Figures 286-290.

1шт.

D53690R

REMAN-HYD PUMP

480C, Reman for New P/N D58538

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166-68

BOLT - Ferry head, 7/16" - 14 NC x 1-3/4", if used

8шт.

2a

166-74

BOLT - Ferry head, 7/16" - 14 NC x 3-1/4", if used 12 Pt Flg, 7/16"-14 x 3 1/4", G8

4шт.

3

D60878

WASHER - flat, special, 7/16"

4-8шт.

4

D60869

COVER - port end

1шт.

5

D60871

GASKET - rear cover

1шт.

6

D60877

BUSHING - shaft

4шт.

7

D60876

SEAL - balance

1шт.

8

D60875

SEAL - backup

1шт.

9

D87187

PLATE - thrust, cover side, interchangeable with D60872

1шт.

9a

D87187

PLATE - thrust, shaft end, interchangeable with D74424

1шт.

10

D60868

HOUSING - gear, used with D60867 cover, if used

1шт.

10

D87186

HOUSING - gear, used with D87185 cover, if used

1шт.

11

D60873

GEAR

DRIVE GEAR - pump

1шт.

D53690R

REMAN-HYD PUMP

480C, Reman for New P/N D60873

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

D60874

DRIVEN GEAR - pump

1шт.

13

T29715

DOWEL PIN - cover to gear housing

4шт.

14

D60870

GASKET - shaft end

1шт.

15

D60867

COVER - shaft end, used with (9) 1-1/2" bolts, if used

1шт.

15

D87185

COVER - shaft end, used with (4) 3-1/4" bolts, if used

1шт.

16

D60889

SEAL

- shaft

1шт.

17

166-67

BOLT - Ferry head, 7/16" - 14 NC x 1-1/2", if used

9шт.

17a

166-77

BOLT - Ferry head, 7/16" - 14 NC x 3-3/4", if used

4шт.

18

D60878

WASHER - flat, special, 7/16"

5-9шт.

19

166-67

BOLT - Ferry head, 7/16" - 14 NC x 1-1/2"

1шт.
