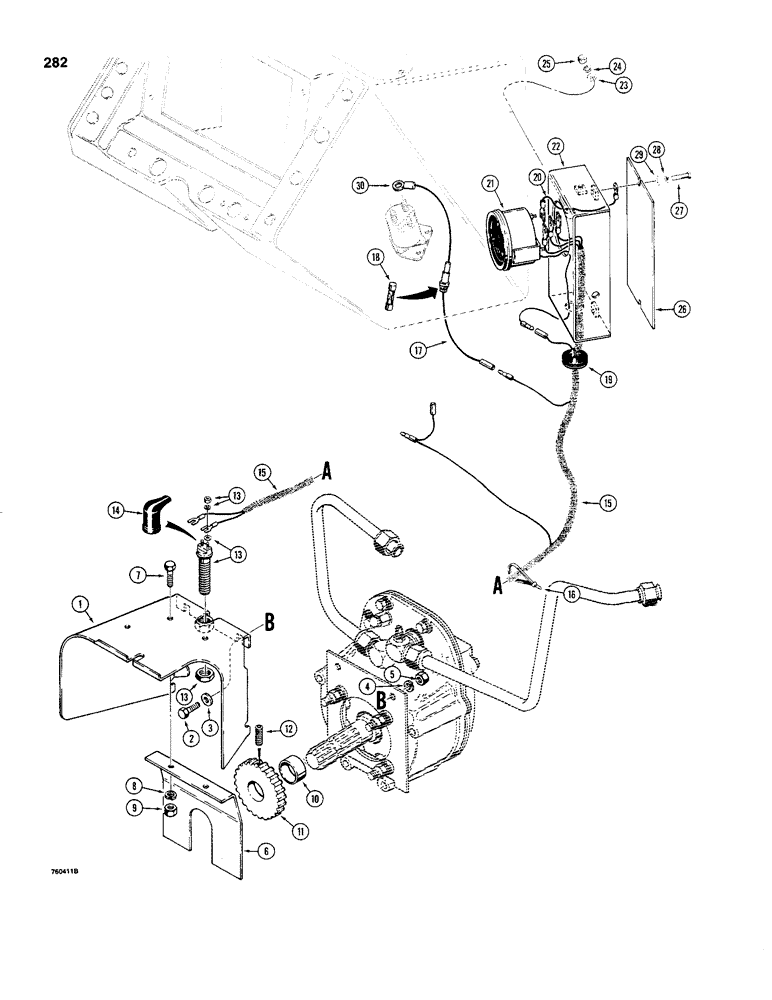

Запчасти Case 480C (282) - PTO SHIELD AND SPEED INDICATOR (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D75219
GUARD
SHIELD - PTO shaft
1шт.
2
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
3
195-2028
WASHER,.391" x 5/8" x .065"
- flat, 3/8"
2шт.
4
92-6
LOCK WASHER,3/8"
2шт.
5
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
6
D74799
SHIELD
- sensor
1шт.
7
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
2шт.
8
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
9
9635082
NUT,5/16" - 18, Gr 5
2шт.
10
D74632
SPACER
- disc
1шт.
11
D74741
DISC
- pickup
1шт.
12
83-414
SET SCREW,Hex Soc, 1/4"-20 x 7/8"
- 1/4" - 20 NC x 7/8"
1шт.
13
D75217
SENSOR
- speed indicator, includes hardware
1шт.
14
R29627
BOOT
GUARD - sensor, rubber
1шт.
15
D74873
HARNESS
- wire
1шт.
16
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
3шт.
17
REF
INSTRUCTION
WIRE - fuse holder, includes No. 10 terminal, no longer available, order D82255 wire and No. 10 terminal
1шт.
17
D82255
NOZZLE HOLDER
WIRE - fuse holder, includes 5/16" terminal, Includes: Ref. 18
1шт.
19
49567
GROMMET
- harness
1шт.
20
D74877
ELECTRICAL WIRE
WIRE - ground
1шт.
21
D74872
SPARE PART
GAUGE - PTO speed indicator
1шт.
22
D74814
BRACKET
- gauge
1шт.
23
195-521
WASHER,5/16", SAE
- flat, 5/16", plated
1шт.
24
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
25
9635082
NUT,5/16" - 18, Gr 5
1шт.
26
D74801
COVER
- bracket
1шт.
27
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
2шт.
28
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
29
195-521
WASHER,5/16", SAE
- flat, 5/16", plated
2шт.
30
NSS
NOT SOLD SEPARAT
TERMINAL - eyelet, No. 10, if used, obtain locally
1шт.
30
NSS
NOT SOLD SEPARAT
TERMINAL - eyelet, 5/16", if used, obtain locally
1шт.
Выбрано товаров: 32
