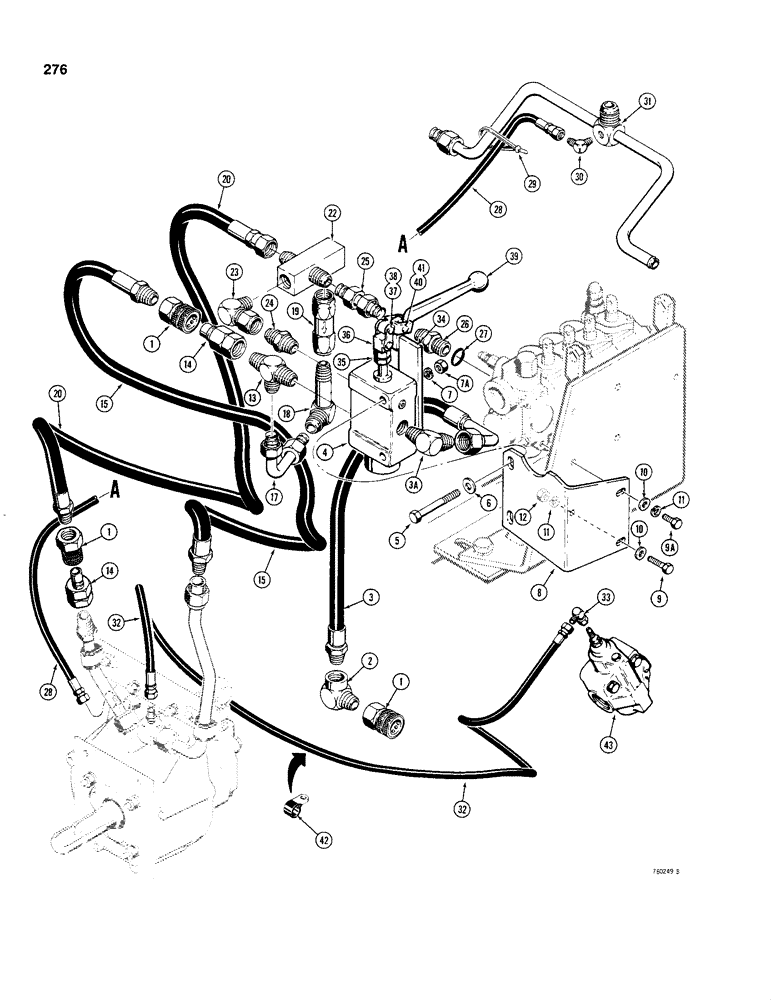

Запчасти Case 480C (276) - PTO HYDRAULIC CIRCUIT AND CONTROL (35) - HYDRAULIC SYSTEMS

1

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 340

3шт.

2

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

3

D73580

HOSE

-to selector valve, special

1шт.

3a

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, male, at selector valve

1шт.

4

D65378

VALVE

SELECTOR VALVE - parts list Figure 332

1шт.

5

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

6

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

7a

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

8

D72655

BRACKET - valve

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

9a

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

13

D72656

TEE

- male

1шт.

14

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, parts list Figure 340

2шт.

15

D73579

HOSE

- pressure, to PTO, 30" (762 mm) long

1шт.

16

RESERVED

1шт.

17

D72629

TUBE,0.75" OD x 3.2, 4.3" L

- check valve

1шт.

18

218-503

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, check valve

1шт.

19

D71716

VALVE

CHECK VALVE - hydraulic oil

1шт.

20

NLS

NO LONGER SERVICED

HOSE - PTO return, 25" (635 mm) long

1шт.

21

RESERVED

1шт.

22

D72423

MANIFOLD

- selector valve

1шт.

23

218-990

ELBOW,90 Degree, 1 3/16"-12 Sw x 3/4" NPT

- 90 degree, adjustable

1шт.

24

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male

1шт.

25

D72631

TUBE - to three-point hitch valve

1шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, Incl. Ref. 27

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

28

D72020

HOSE

- PTO case drain

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

30

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male

1шт.

31

D71941

TUBE

- to oil reservoir

1шт.

32

D74342

HOSE

- PTO motor to relief valve, 70" (1778 mm) long, if used

1шт.

33

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, D72021 hose to relief valve, two stage main relief, if used

1шт.

34

D74934

BRACKET - selector valve

1шт.

35

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

36

D74931

LINK

- spool end

1шт.

37

36640

DRAG LINK

LINK - connecting

1шт.

38

132-17

COTTER PIN,1/16" x 2"

- 1/16" x 1-1/2", plated

1шт.

39

D23722

HANDLE

LEVER - selector valve control

1шт.

40

36627

SEAT

CLEVIS PIN - lever

1шт.

41

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

42

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose

1шт.

43

REF

INSTRUCTION

RELIEF VALVE - see Figure 320

1шт.
