Запчасти Case 380CK (192) - SEAT BELTS (09) - CHASSIS/ATTACHMENTS

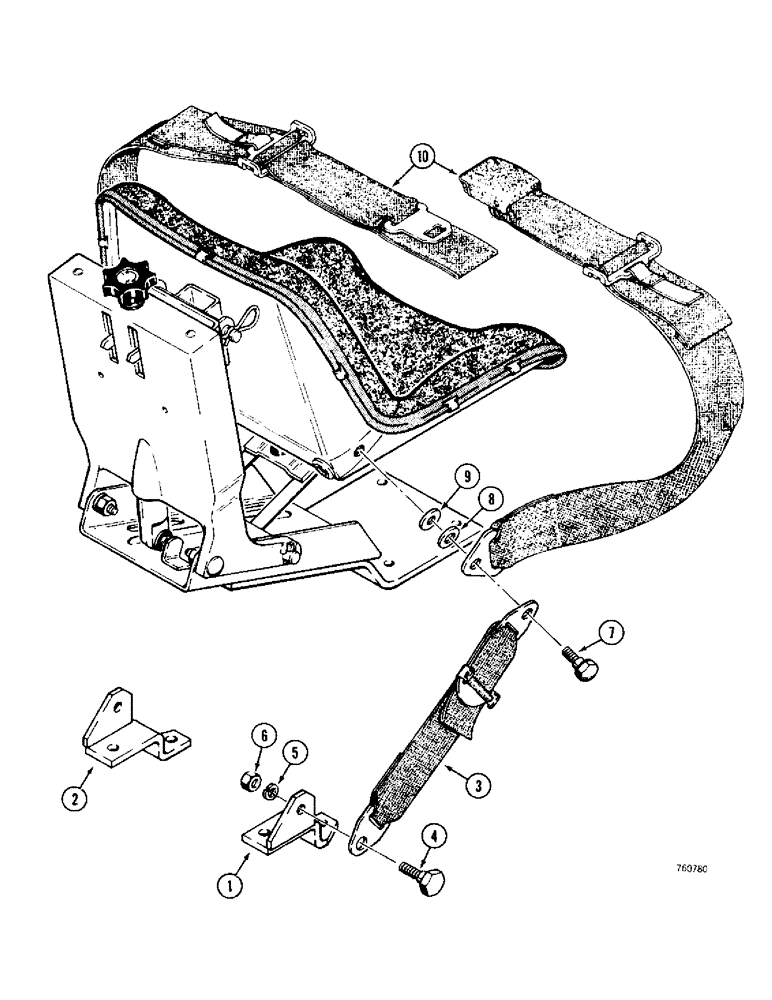

Схема запчастей Case 380CK - (192) - SEAT BELTS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

D73117

BRACKET - tether belt to frame, R.H.

1шт.

2

D73118

BRACKET - tether belt to frame, L.H.

1шт.

3

D73125

SAFETY BELT

2шт.

4

F42236

STEP BOLT

BOLT - shoulder, plated

2шт.

5

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

6

425-117

NUT,7/16"-20, G5

- hex, 7/16"-20 NF, plated

2шт.

7

D73113

BOLT - shoulder, plated

2шт.

8

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

9

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

10

K945347

SAFETY BELT

BELT - seat, 2" wide, if used

1шт.

10

D73098

BELT - seat, 3" wide, if used

1шт.

Выбрано товаров: 11
