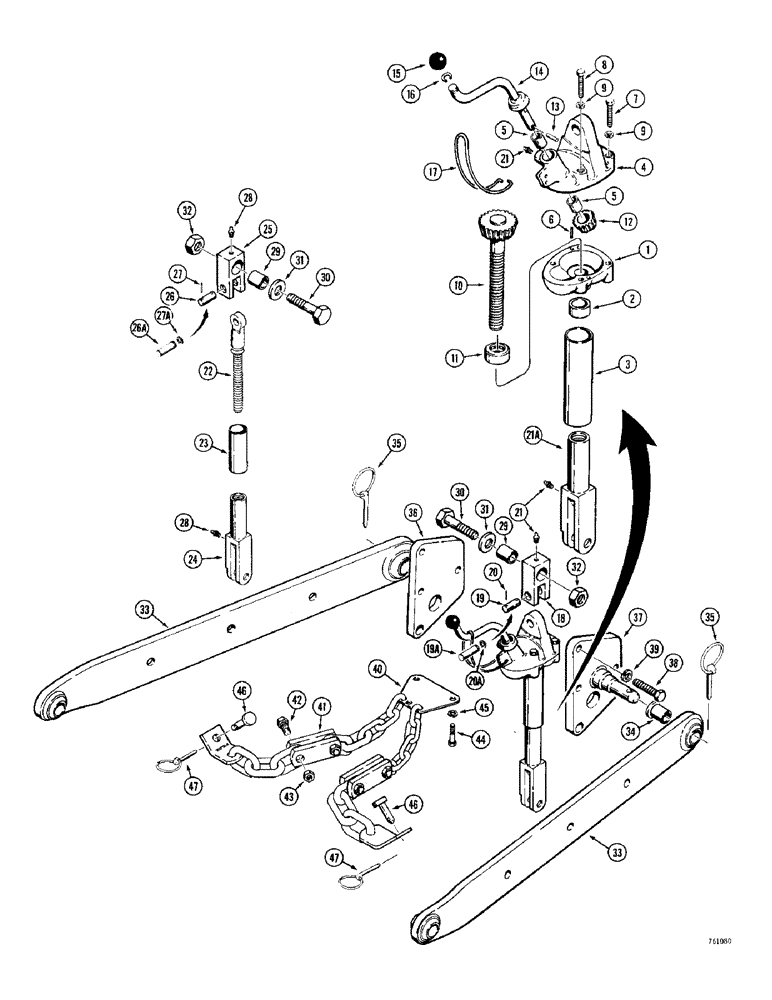

Запчасти Case 380CK (184) - SELECTAMATIC HITCH, CATAGORY I-II LIFT RODS AND ARMS (09) - CHASSIS/ATTACHMENTS

K940508

LEVER

- leveling, Inlcudes: Ref. 1 - 21A

1шт.

K962977

HOUSING

ASSEMBLY - gear, Inlcudes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

2

K621339

BUSHING

- gear housing

1шт.

3

K922657

TUBE,1.75" DIA x 5.25" L

- gear housing

1шт.

K962691

COVER

CAP ASSEMBLY - leveling lever, Inlcudes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - leveling lever

1шт.

5

K621340

BUSHING

- cap

2шт.

6

K32063

PIN

DOWEL - 3/16" x 1/2"

2шт.

7

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

8

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

HHCS - 3/8"-16 NC x 1-7/8"

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

K919770

SHAFT

SCREW - leveling, includes gear

1шт.

11

K19187

THRUST BEARING

BEARING - thrust

1шт.

12

K919769

GEAR

- bevel pinion

1шт.

13

K623741

SPRING

PIN - spring, 5/32" x 3/4"

1шт.

K919761

LEVER

ASSEMBLY - hand, Inlcudes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

LEVER - hand

1шт.

15

K919763

BUTTON

KNOB - hand lever

1шт.

16

K621790

RING, SNAP

RING - retaining

1шт.

17

K924723

SPRING

LATCH - spring

1шт.

18

K921914

FORK

CLEVIS - upper

1шт.

19

K948353

PIVOT PIN

PIN - pivot, uses spring pins, if used

1шт.

19a

K940000

PIVOT PIN

PIN - pivot, uses snap rings, if used

1шт.

20

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, , Used with item 19 3/16" x 7/8", Slotted

2шт.

20a

K11797

RING, SNAP

RING - retaining, used with item 19A

2шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

3шт.

21a

K940700

NUT

YOKE - adjusting

1шт.

K940505

ROD

ASSEMBLY - lift, Inlcudes: Ref. 22 - 28

1шт.

K962978

SET SCREW

SCREW ASSEMBLY - adjusting, Inlcudes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

23

K940510

TUBE,1.75" ID x 6.187" L

- adjusting screw

1шт.

24

K940700

NUT

YOKE - adjusting

1шт.

Adapter is held on with P/N 46 pin.

1шт.

25

K921914

FORK

CLEVIS - upper

1шт.

26

K948353

PIVOT PIN

PIN - pivot, uses spring pins, if used

1шт.

26a

K940000

PIVOT PIN

PIN - pivot, uses snap rings, if used

1шт.

27

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, , Used with item 26 3/16" x 7/8", Slotted

2шт.

27a

K11797

RING, SNAP

RING - retaining, used with item 26A

2шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

29

K901963

BUSHING

- clevis

2шт.

30

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

HHCS - 3/4"-10 NC x 3-3/4"

2шт.

31

K19476

WASHER

- flat, 3/4"

2шт.

32

K607446

NUT

- hex, lock, 3/4"-10 NC

2шт.

33

K943631

LINK

ARM - lower

2шт.

34

K922071

BUSHING

- reducing

2шт.

35

K920359

PIN

- retaining

2шт.

36

K943627

BRACKET

- hitch, left hand

1шт.

37

K943628

HITCH ASSY

BRACKET - hitch, right hand

1шт.

38

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

39

92-8

LOCK WASHER,1/2"

4шт.

K946476

CHAIN (AG)

CHAIN ASSEMBLY - check, Inlcudes: Ref. 40 - 43

1шт.

40

NSS

NOT SOLD SEPARAT

CHAIN - plate and links

1шт.

41

K943855

PLATE

- check chain

4шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

43

K607460

NUT

- hex, lock, 3/8"-16 NC

4шт.

44

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

46

K946108

HEADED PIN

PIN - check chain

2шт.

47

K915678

PIN

- retaining

2шт.
