Запчасти Case 380CK (182) - SELECTAMATIC HITCH, CATEGORY I LIFT RODS AND ARMS (09) - CHASSIS/ATTACHMENTS

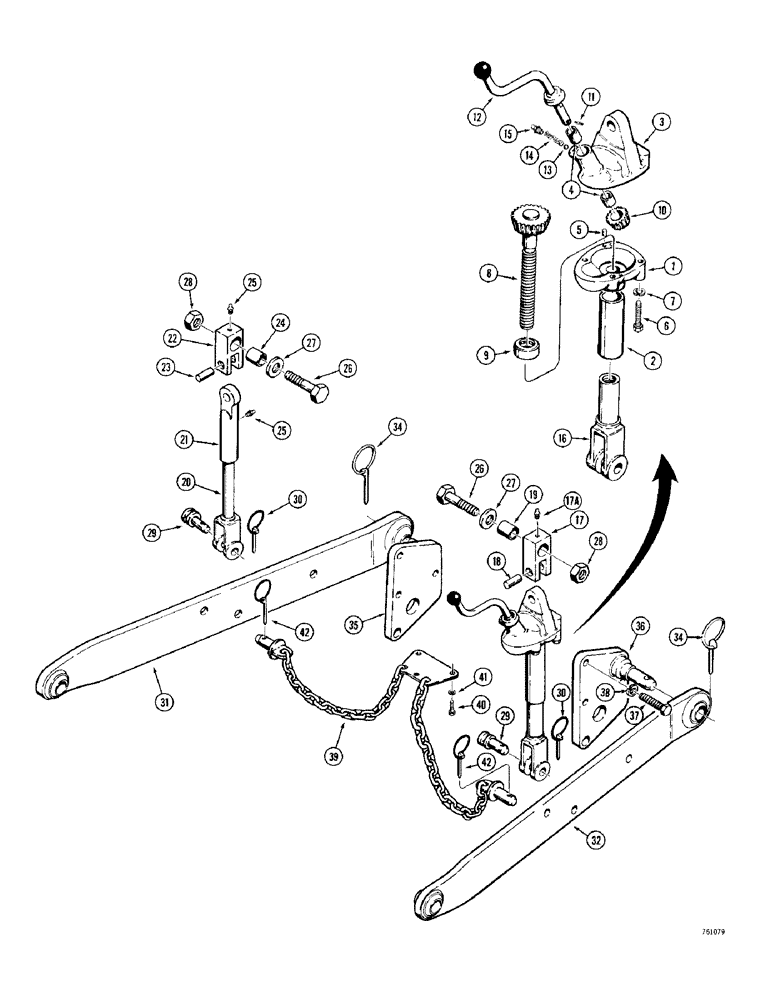

Схема запчастей Case 380CK - (182) - SELECTAMATIC HITCH, CATEGORY I LIFT RODS AND ARMS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

K940515

LEVER

- leveling, Inlcudes: Ref. 1 - 19

1шт.

1

K913166

GEAR

HOUSING - gear

1шт.

2

K913165

TUBE

- gear housing

1шт.

K961754

CAP

ASSEMBLY - gear housing, Inlcudes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

CAP - less bushing

1шт.

4

K621373

BUSHING

- cap

2шт.

5

K32063

PIN

DOWEL -, Serial Range: cap-housing

2шт.

6

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16"-18 NC x 1-1/4"

4шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

8

K913224

BEVEL GEAR

SCREW - leveling, includes gear

1шт.

9

K620181

THRUST BEARING

BEARING - thrust

1шт.

10

K913170

GEAR

- bevel pinion

1шт.

11

K623931

SPLIT PIN/SAFETY PIN

PIN - spring, 1/8" x 11/16"

1шт.

12

K913171

LEVER

- hand

1шт.

13

211-205

BALL

- steel, 7/16"

1шт.

14

K625174

SPRING

- detent

1шт.

15

K622251

FITTING

- grease, 5/16" BSF

1шт.

16

K922761

CLEVIS

YOKE - adjusting

1шт.

17

K901960

FORK

CLEVIS - upper

1шт.

17a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

18

K901962

PIN

- pivot

1шт.

19

K901963

BUSHING

- clevis

1шт.

K940498

ROD

ASSEMBLY - lift, Inlcudes: Ref. 20 - 25

1шт.

20

K922765

FORK

YOKE - adjusting

1шт.

21

K914197

EYE

TUBE - eye end

1шт.

22

K901960

FORK

CLEVIS - upper

1шт.

23

K901962

PIN

- pivot

1шт.

24

K901963

BUSHING

- clevis

1шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

26

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

HHCS - 3/4"-10 NC x 3-3/4"

2шт.

27

K19476

WASHER

- flat, 3/4"

2шт.

28

K607446

NUT

- hex, lock, 3/4"-10 NC

2шт.

29

K903399

HITCH PIN

PIN - link

2шт.

30

K66408

PIN

- retaining

2шт.

31

K928548

LINK

ARM - lower, left hand

1шт.

32

K928549

LINK

ARM - lower, right hand

1шт.

34

K920359

PIN

- retaining

2шт.

35

K940091

BRACKET

- hitch, left hand

1шт.

36

K940092

BRACKET

- hitch, right hand

1шт.

37

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

38

92-8

LOCK WASHER,1/2"

6шт.

39

K942994

CHAIN (AG)

CHAIN - check

1шт.

40

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

42

K66408

PIN

- retaining

2шт.

Выбрано товаров: 45
