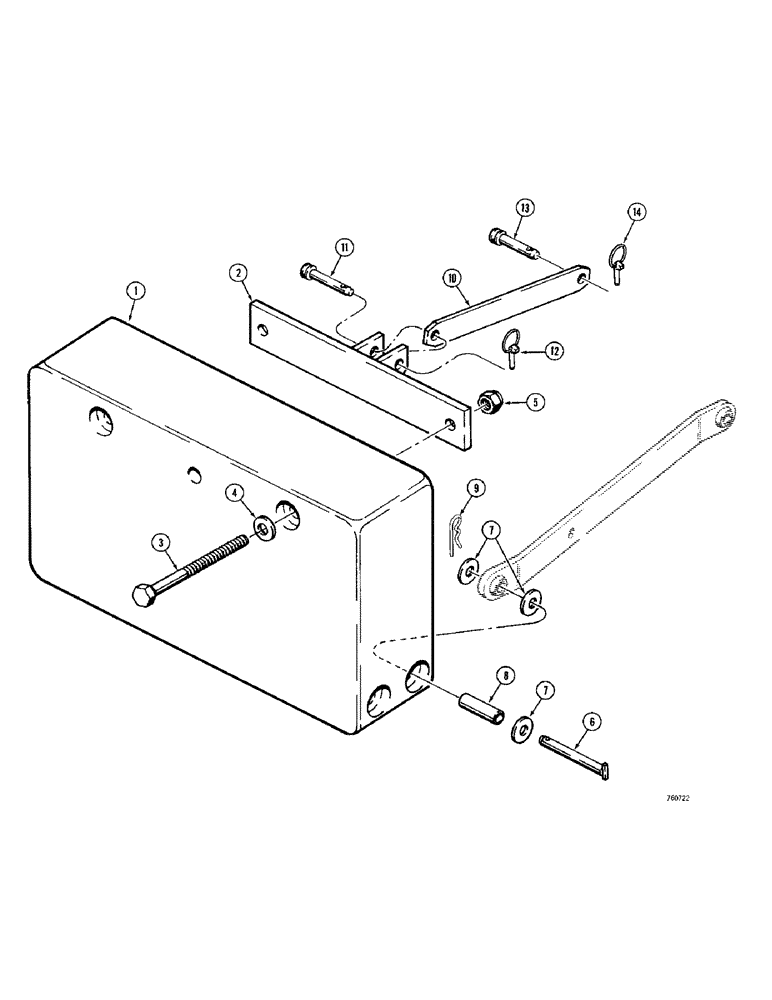

Запчасти Case 380CK (180) - REAR COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

D31204

BALANCER

COUNTERWEIGHT - 1425 lbs (646 kg)

1шт.

2

D72288

BRACKET - counterweight mounting

1шт.

3

113-911

BOLT,Hex, 1" - 8 x 10", Gr 5

HHCS - 1"-8 NC x 10", plated

2шт.

4

195-553

WASHER,1", SAE

- plain, 1", plated

2шт.

5

131-698

LOCK NUT,1"-8, GB

NUT - hex, lock, 1"-8 NC, plated

2шт.

6

D73486

PIN - counterweight mounting, lower

2шт.

7

195-549

WASHER,7/8", SAE

- flat, 7/8", plated

6шт.

8

D73483

SPACER

TUBE - bushing, spacer

2шт.

9

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), , Hair Int, 7/16" x .177"

2шт.

10

D73487

LINK - counterweight mounting, upper

1шт.

11

K903981

HITCH PIN

PIN - upper counterweight mounting at counterweight

1шт.

12

K920359

PIN

- retaining

1шт.

13

K912936

PIN

- upper counterweight mounting at tractors sensing unit

1шт.

14

K66408

PIN

- retaining

1шт.
