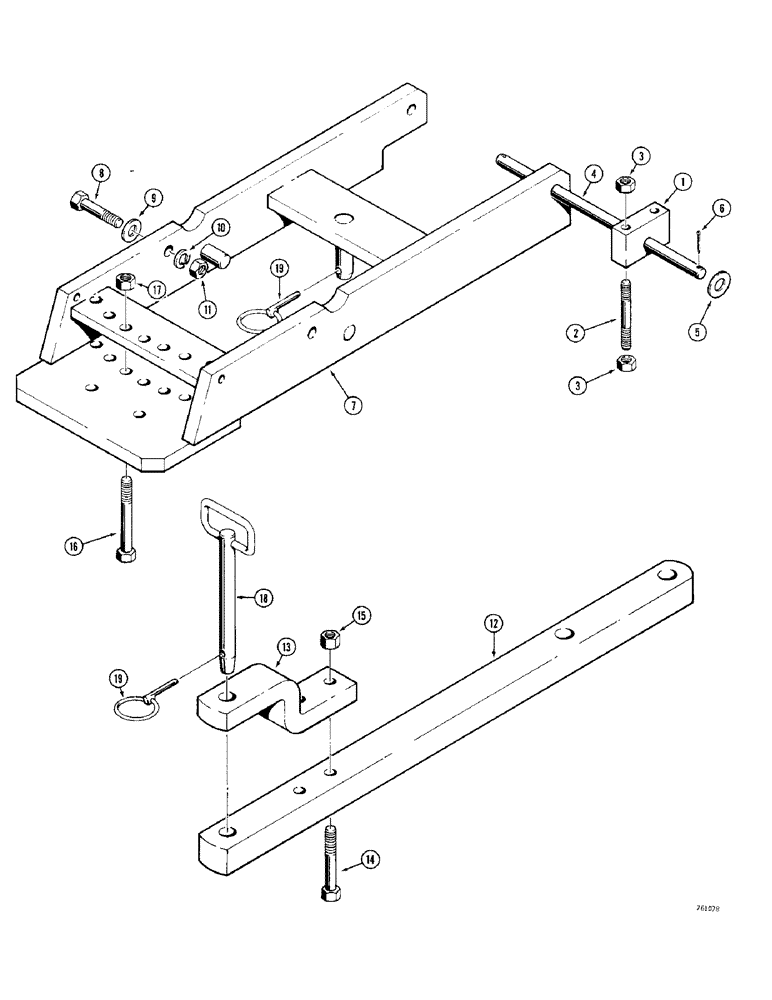

Запчасти Case 380CK (178) - SWINGING DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

K912087

HINGE

BRACKET - hinge, front

2шт.

2

K608508

STUD

- special, 1/2"-13 NC x 3-7/8"

4шт.

3

131-70

NUT,1/2"-13, GB

NUT - hex, lock, 1/2"-13 NC, plated

8шт.

4

K943056

HINGE

BAR - hinge, front

1шт.

5

K19476

WASHER

- flat, 3/4", special

2шт.

6

132-94

PIN

- cotter, 3/16" x 1-3/8"

2шт.

7

K946192

SUPPORT

- drawbar

1шт.

8

13-1238

BOLT,Hex, 3/4" - 10 x 2-3/8", Gr 5

HHCS - 3/4"-10 NC x 2-3/8"

2шт.

9

K19476

WASHER

- flat, 3/4", special

2шт.

10

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

11

25-1012

NUT,3/4"-10, G5

2шт.

12

K946154

DRAWBAR, SWINGING

DRAWBAR - swinging

1шт.

13

K916516

CLEVIS

BRACKET - clevis

1шт.

14

K601664

BOLT

- special, countersunk, 5/8"-11 NC x 3-1/2"

2шт.

15

131-64

LOCK NUT,5/8"-11, GC

NUT - hex, lock, 5/8"-11 NC, plated

2шт.

16

K601332

BOLT

HHCS - special, 5/8"-11 NC x 4", plated

2шт.

17

131-64

LOCK NUT,5/8"-11, GC

NUT - hex, lock, 5/8"-11 NC, plated

2шт.

18

K916566

PIN

- hitch

1шт.

19

K920359

PIN

- retaining

2шт.
