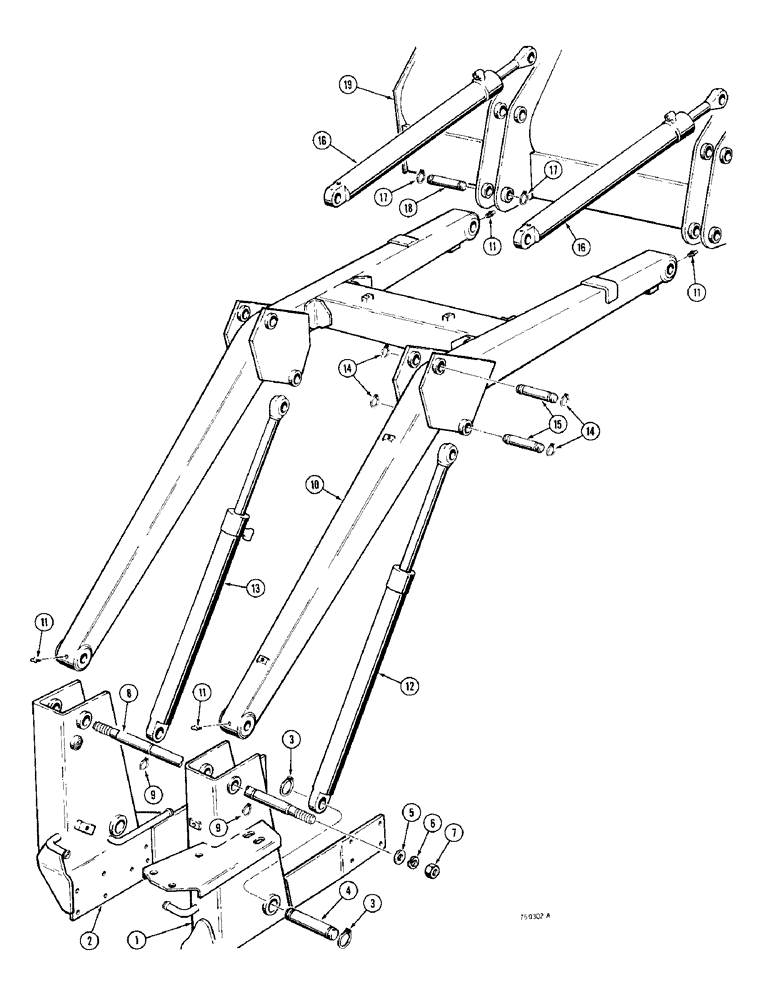

Запчасти Case 380CK (174) - LOADER LIFT ARMS AND RELATED PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - side, R.H., see Figures 166 and 168

1шт.

2

REF

INSTRUCTION

FRAME - side, L.H., see Figures 166 and 168

1шт.

3

D25280

SNAP RING,#175, Ext

RING - Snap, , lift cylinder pins #175, Ext

4шт.

4

D67909

PIN - lift cylinder

2шт.

5

195-53

WASHER,1" x 2" x .134"

- flat, 1"

2шт.

6

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

7

129-110

NUT,1"-8, G5

2шт.

8

D69830

SHAFT - cross

1шт.

9

S17400

RING, Snap, #150, Ext #150, Ext

2шт.

10

D76032

ARM

FRAME - loader lift arm

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

4шт.

12

G35002

CYLINDER

- lift, R.H., parts list Figure 162

1шт.

13

G35003

CYLINDER

- lift, L.H., parts list Figure 162

1шт.

14

D25279

SNAP RING,M35, Int

RING - retaining

8шт.

15

D67910

PIN - lift and tilt cylinders

4шт.

16

G34852

CYLINDER ASSY.

CYLINDER - tilt, parts list Figure 164

2шт.

17

D25279

SNAP RING,M35, Int

RING - retaining

8шт.

18

L71043

AXLE PIN

PIN - bucket mounting

4шт.

19

REF

INSTRUCTION

BUCKET - loader, see Figure 176

1шт.
