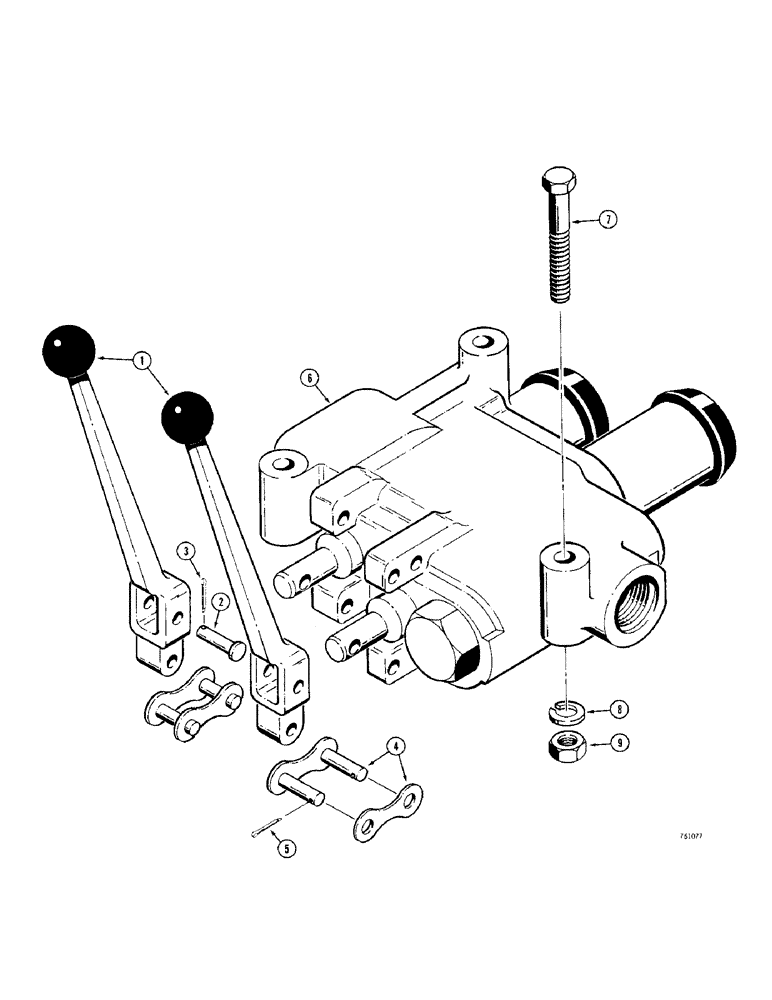

Запчасти Case 380CK (172) - LOADER CONTROL LEVERS AND LINKAGE, MODELS WITH GRESEN VALVE (09) - CHASSIS/ATTACHMENTS

1

D23722

HANDLE

LEVER - loader control

2шт.

2

36627

SEAT

PIN - control lever attaching

2шт.

3

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

4

36640

DRAG LINK

LINK - lever to valve spool

2шт.

5

132-13

PIN

- cotter, 1/16" x 1/2"

2шт.

6

D76134

VALVE - loader control, parts list Figure 152

1шт.

7

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.
