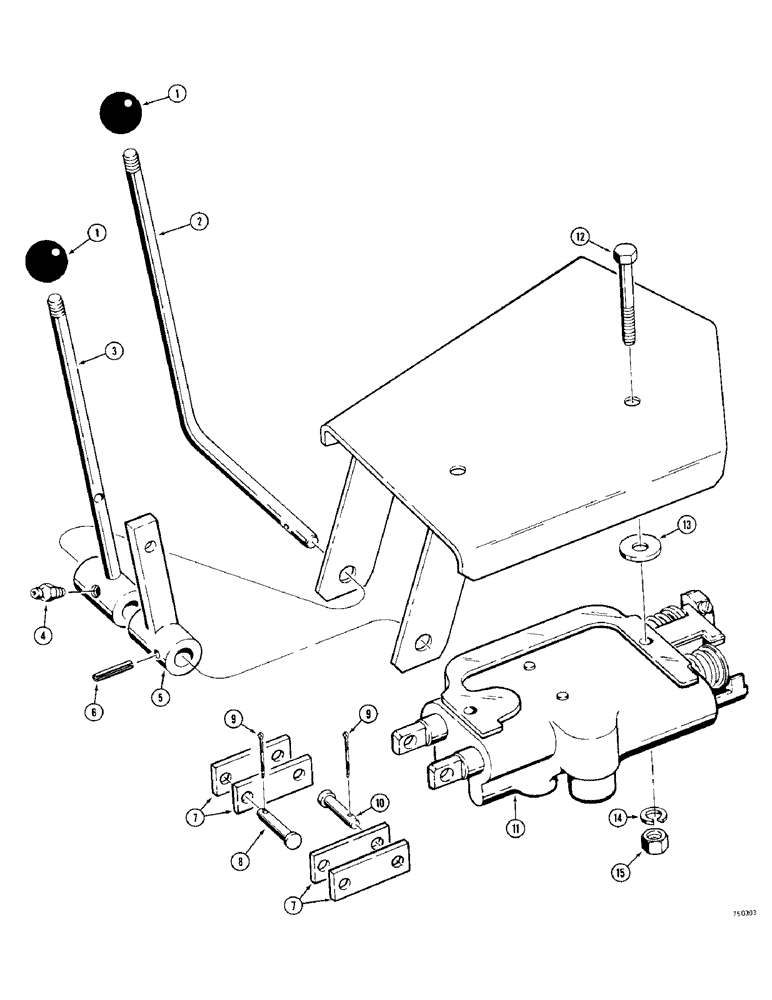

Запчасти Case 380CK (170) - LOADER CONTROL LEVERS AND LINKAGE, MODELS WITH CESSNA VALVE (09) - CHASSIS/ATTACHMENTS

1

D59912

KNOB

- control levers

2шт.

2

D65614

ROD

LEVER - loader tilt control

1шт.

3

D65621

LEVER

- loader lift control

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

5

D65613

ARM

BELLCRANK - loader lift control

1шт.

6

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

7

D65625

LINK - loader control

4шт.

8

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN - clevis, tilt control

2шт.

9

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

4шт.

10

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, lift control

2шт.

11

D70113

VALVE - loader control, parts list Figure 150

1шт.

12

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

13

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.
