Запчасти Case 380CK (164) - G34852 LOADER TILT CYLINDER (08) - HYDRAULICS

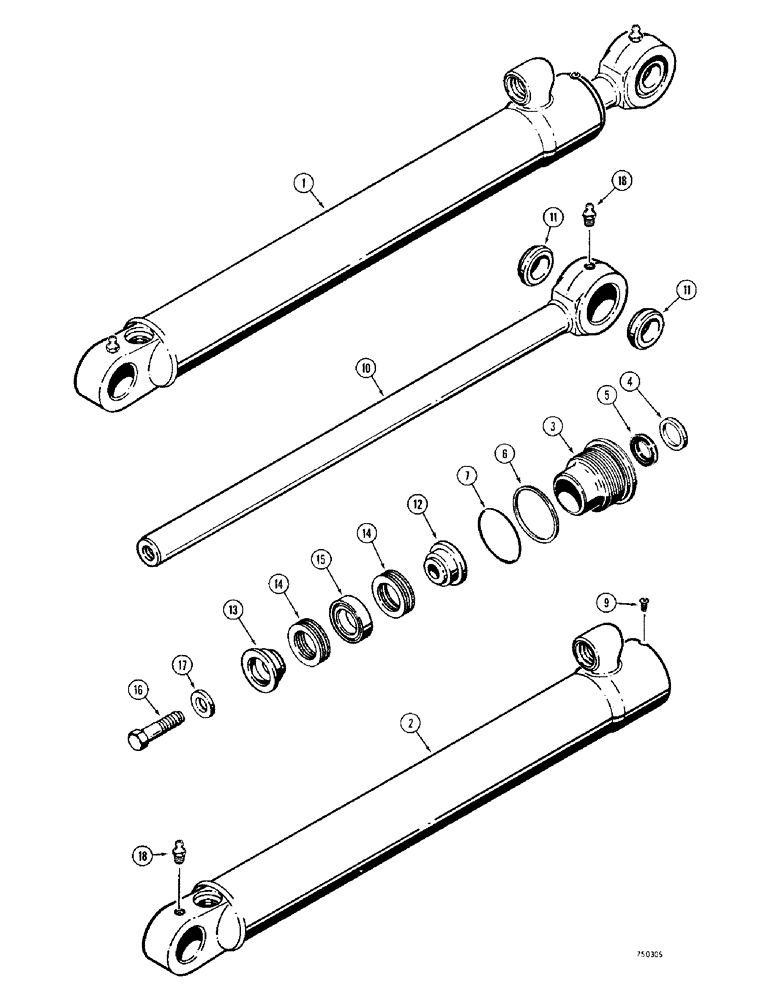

Схема запчастей Case 380CK - (164) - G34852 LOADER TILT CYLINDER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

G34852

CYLINDER ASSY.

CYLINDER - loader tilt 2-1/2" (64 MM) dia. x 25-3/4" (654 MM) stroke, Inlcudes: Ref. 2 - 18

1шт.

G34852 HAS 2 PC PISTON. THE G34852 SUBS TO G101595 CYL, WHICH HAS A 1 PC PISTON. THE 1 PC PISTON IS PART# G100705. NEW SEAL KIT IS G101292. BALANCE OF PARTS ARE SAME AS ORIGINAL. PER NOTE IN HARD COVER CATALOG.

1шт.

2

G34996

TUBE - cylinder body

1шт.

G33487

GLAND

ASSEMBLY - cylinder, Inlcudes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Cylinder Seal Kit P/N G32294

1шт.

5

D36969

CUP

SEAL - piston rod

1шт.

Part of Cylinder Seal Kit P/N G32294

1шт.

For extreme heat or cold use P/N G100776 shown below

1шт.

6

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup gland seal

1шт.

Part of Cylinder Seal Kit P/N G32294

1шт.

7

A28818

O-RING - gland seal

1шт.

Part of Cylinder Seal Kit P/N G32294

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (No. 8-32 NC x 1/4")

1шт.

10

G34999

ROD

- screw piston 1-1/2" (38 MM) dia., Inlcudes: Ref. 11

1шт.

11

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod

2шт.

12

G33419

PISTON

- split, rod end half

1шт.

13

D28364

PISTON

- split, bolt end half

1шт.

G33193

PACKING

ASSEMBLY - piston, Inlcudes: Ref. 14 and 15

1шт.

Part of Cylinder Seal Kit P/N G32294

1шт.

14

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - "V" type

2шт.

15

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston retaining, 3/4"-16 NF x 2-1/2"

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G32294

SEAL

KIT - cylinder, Includes: Ref. 4, 5, 6, 7 and P/N G33193

1шт.

G100776

SEAL

- piston rod, service option - extreme heat or cold

1шт.
