Запчасти Case 380CK (162) - G35002 AND G35003 LOADER LIFT CYLINDERS (08) - HYDRAULICS

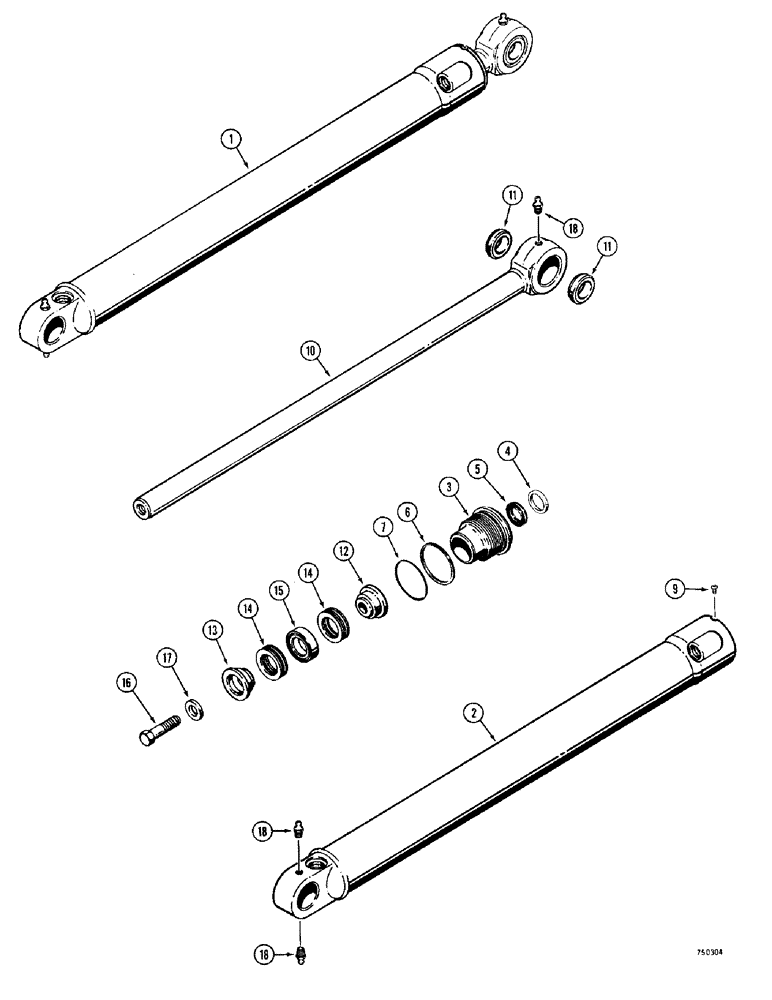

Схема запчастей Case 380CK - (162) - G35002 AND G35003 LOADER LIFT CYLINDERS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

G35002

CYLINDER

- loader lift, R.H. 2-1/2" (64 MM) dia. x 31-7/16" (799 MM) Stroke, Inlcudes: Ref. 2 -18

1шт.

1

G35003

CYLINDER

- loader lift, L.H. 2-1/2" (64 MM) dia. x 31-7/16" (799 MM) Stroke, Inlcudes: Ref. 2 - 18

1шт.

2

D49092

CYLINDER

TUBE - cylinder body, R.H.

1шт.

2

D49093

CYLINDER

TUBE - cylinder body, L.H.

1шт.

G33487

GLAND

ASSEMBLY - cylinder, Inlcudes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Cylinder Seal Kit P/N G32294

1шт.

5

D36969

CUP

SEAL - piston rod

1шт.

Part of Cylinder Seal Kit P/N G32294

1шт.

For extreme heat or cold use P/N G100776 shown below

1шт.

6

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup gland seal

1шт.

Part of Cylinder Seal Kit P/N G32294

1шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland seal

1шт.

Part of Cylinder Seal Kit P/N G32294

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (No. 8-32 NC x 1/4")

1шт.

10

G35001

ROD

- piston 1-1/2" (38 MM) dia., Inlcudes: Ref. 11

1шт.

11

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod

2шт.

12

G33419

PISTON

- split, rod end half

1шт.

13

D28364

PISTON

- split, bolt end half

1шт.

G33193

PACKING

ASSEMBLY - piston, Inlcudes: Ref. 14 and 15

1шт.

Part of Cylinder Seal Kit P/N G32294

1шт.

14

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - "V" type

2шт.

15

NSS

NOT SOLD SEPARAT

RING - center packing

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston retaining, 3/4"-16 NF x 2-1/2"

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G32294

SEAL

KIT - cylinder, Includes: Ref. 4, 5, 6, 7 and P/N G33193

1шт.

G100776

SEAL

- piston rod, service option - extreme heat or cold

1шт.

G100706

PISTON

1 piece

1шт.

G105550

SEAL

KIT for 1 piece piston

1шт.

Выбрано товаров: 31
