(156) - D73910 HYDRAULIC OIL FILTER

Запчасти Case 380CK (156) - D73910 HYDRAULIC OIL FILTER (08) - HYDRAULICS

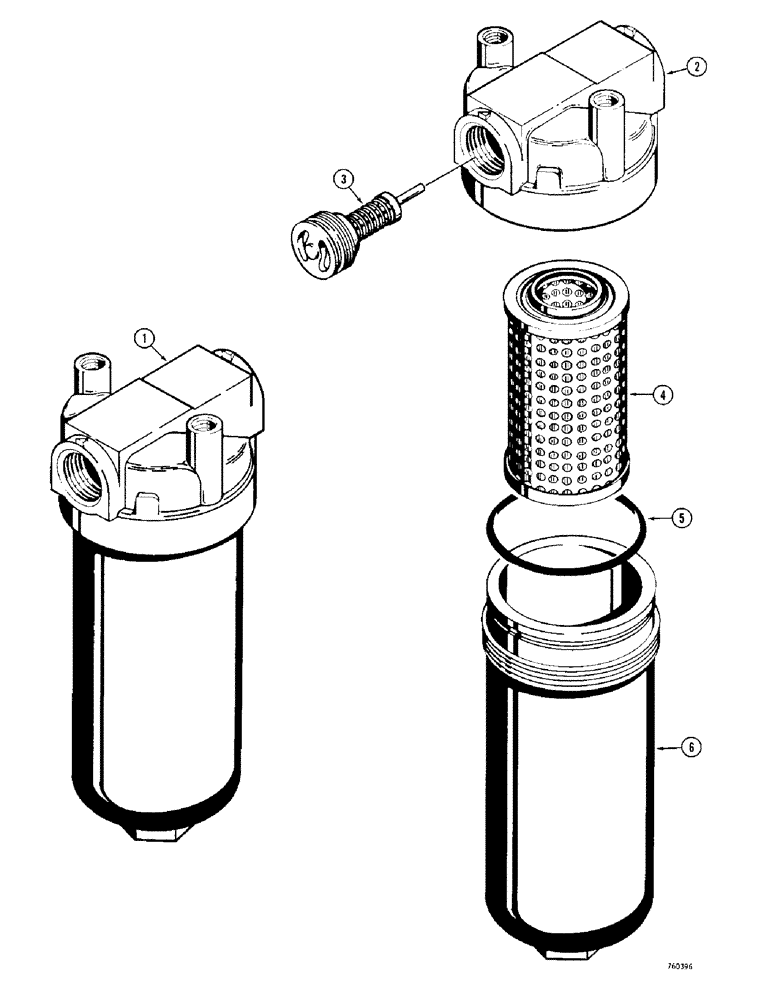

Схема запчастей Case 380CK - (156) - D73910 HYDRAULIC OIL FILTER (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D73910

FILTER ASSY

FILTER - hydraulic oil, Inlcudes: Ref. 2 - 6

1шт.

D61903

HEAD

ASSEMBLY - filter, Inlcudes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

3

D58199

VALVE

- oil, by-pass

1шт.

D75831

FILTER

KIT - filter element, Inlcudes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

5

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- housing

1шт.

6

D42439

HOUSING

- filter

1шт.
