Запчасти Case 380CK (152) - D76134 LOADER CONTROL VALVE (08) - HYDRAULICS

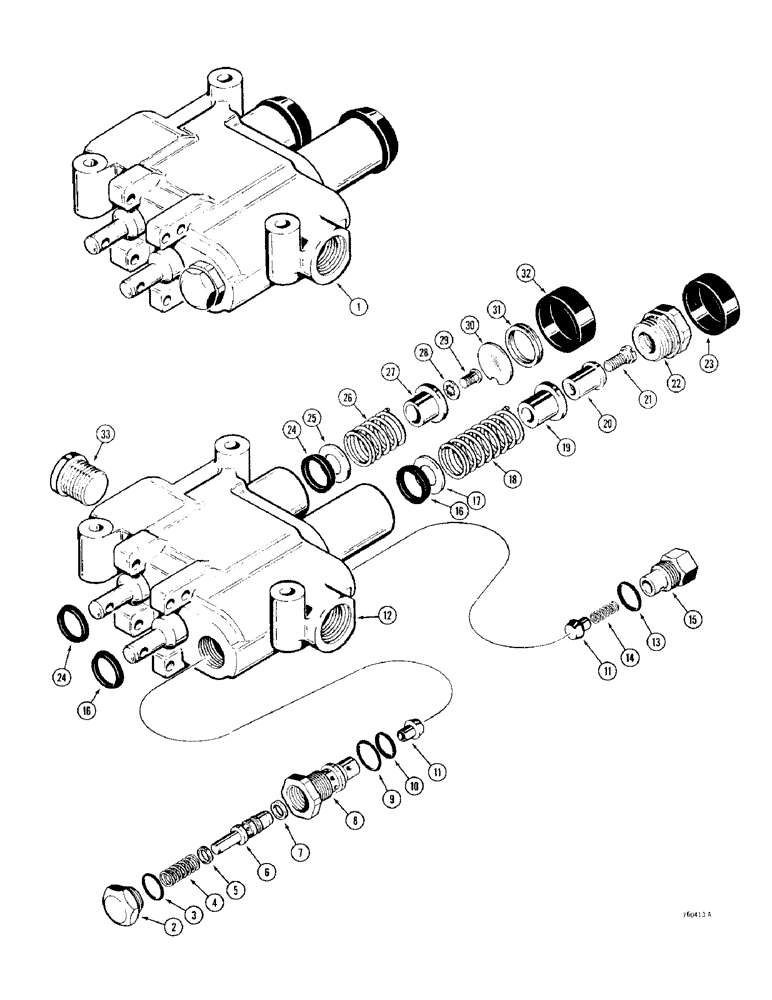

Схема запчастей Case 380CK - (152) - D76134 LOADER CONTROL VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

D76134

VALVE - loader control, Gresen SPKT-4-4-WK-M-1025, Inlcudes: Ref. 2 - 33

1шт.

For models using Cessna valve, see Figure 150.

1шт.

D75878

VALVE, PRESSURE RELI

RELIEF - main, Inlcudes: Ref. 2 - 10

1шт.

2

D39716

PLUG

CAP - main relief

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D51540

VALVE SPRING

SPRING - relief valve

1шт.

5

A55893

SHIM,.0418" Thk

(1.016 mm) .0418" Thk

1шт.

5

A55894

SHIM,.0209" Thk

(0.508 mm) .0209" Thk

1шт.

5

D39712

SHIM

- .010" (0.254" MM) Thick

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

7

D39714

RING

SEAL - ring

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

9

D39717

O-RING,1.051" ID x 1.191" OD

- large

1шт.

10

D39718

O-RING,0.989" ID x 1.129" OD

- small

1шт.

11

D28576

VALVE POPPET

POPPET - check

2шт.

12

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve

1шт.

13

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

14

D28840

SPRING

- check poppet

1шт.

15

D28574

PLUG

- check poppet

1шт.

16

T42095

O-RING

SEAL - spool

2шт.

17

36650

WASHER

- spool stop

1шт.

18

D32602

VALVE SPRING

SPRING - centering, 4 position spool

1шт.

19

36652

COLLAR

- stop, 4 position spool

1шт.

20

D50914

PLUNGER

- detent

1шт.

21

D50913

BOLT,Shoulder, 5/16" - 18 x 0.718"

SCREW - special

1шт.

22

T42191

DETENT

CAP - detent, float spool

1шт.

23

36645

CAP

- rubber, spool end

1шт.

24

T42095

O-RING

SEAL - spool

2шт.

25

36650

WASHER

- spool stop

1шт.

26

36632

SPRING

- centering, 3 position spool

1шт.

27

36630

DRAWBAR SUPPORT

- stop, 3 position spool

1шт.

28

36628

LOCK WASHER

- lock

1шт.

29

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - centering spring, round head, 1/4"-20 NC x 1/2"

1шт.

30

663023R1

CAP

- stop

1шт.

31

36633

LID

- stop disc

1шт.

32

36645

CAP

- rubber, spool end

1шт.

33

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket head, 3/4" NPT

1шт.

Выбрано товаров: 37
