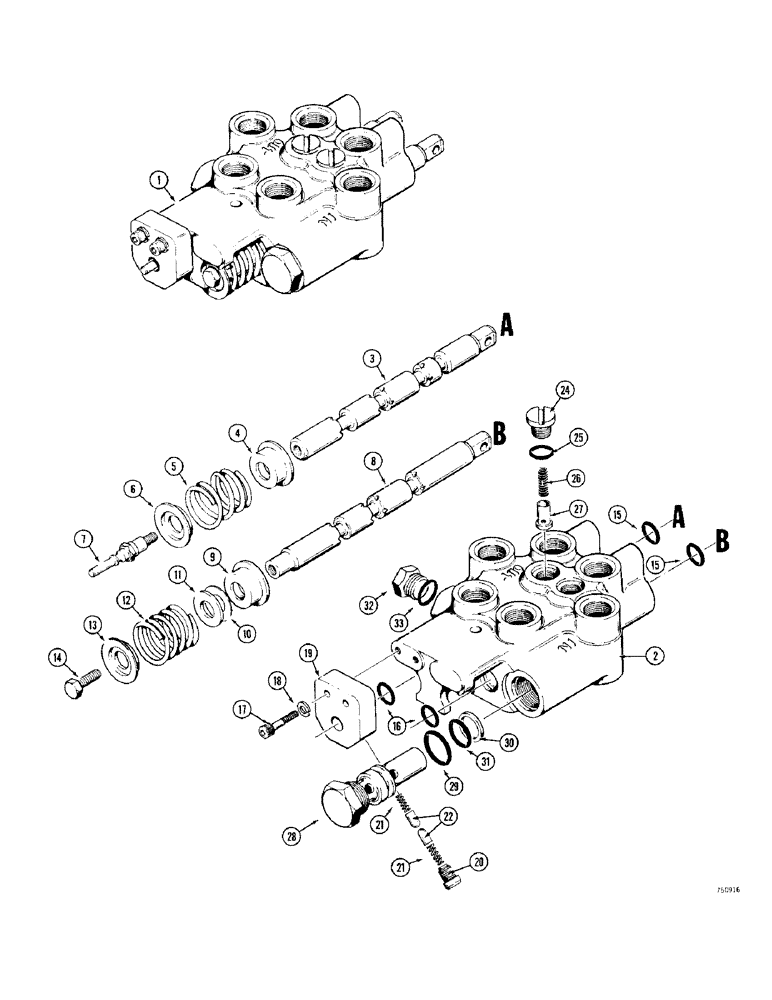

Запчасти Case 380CK (150) - D70113 LOADER CONTROL VALVE (08) - HYDRAULICS

1

D70113

VALVE - loader control, Cessna 30572-AAF, Inlcudes: Ref. 2 - 33

1шт.

For models using Gresen valve, see Figure 152.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - lift

1шт.

4

H138271

WASHER

RETAINER - spring

1шт.

5

F59118

SPRING

- spool centering

1шт.

6

F59116

WASHER

RETAINER - spring

1шт.

7

H139071

SCREW,1/4" - 20

- special, spool

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - bucket

1шт.

9

FH730341

WASHER

RETAINER - spring

1шт.

10

F8235

WASHER

- special, .062" (1.575 MM) Thick

1шт.

11

FH733055

WASHER

- special, .156" (3.962 MM) Thick

1шт.

12

H220517

SPRING

- spool centering

1шт.

13

F59116

WASHER

RETAINER - spring

1шт.

14

FH735605

SCREW

- special

1шт.

15

F37887

O-RING

2шт.

16

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

17

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - socket head, 1/4"-20 NC x 1"

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

H125831

BLOCK

- detent

1шт.

20

H105015

PLUG

- detent

1шт.

21

H105049

SPRING

- detent

2шт.

22

H104992

PAWL

- detent

2шт.

24

FH730382

PLUG

- check, Inlcudes: Ref. 25

2шт.

25

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- plug

1шт.

26

FH730374

SPRING

- check

2шт.

27

FH730366

PLUNGER

- check

2шт.

F87195

LOCK VALVE

VALVE ASSEMBLY - relief, Inlcudes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

29

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- outer

1шт.

30

G32626

RING

WASHER - back-up

1шт.

31

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- inner

1шт.

32

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 33 Hex Hd, 7/8"-14 ORB

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.
