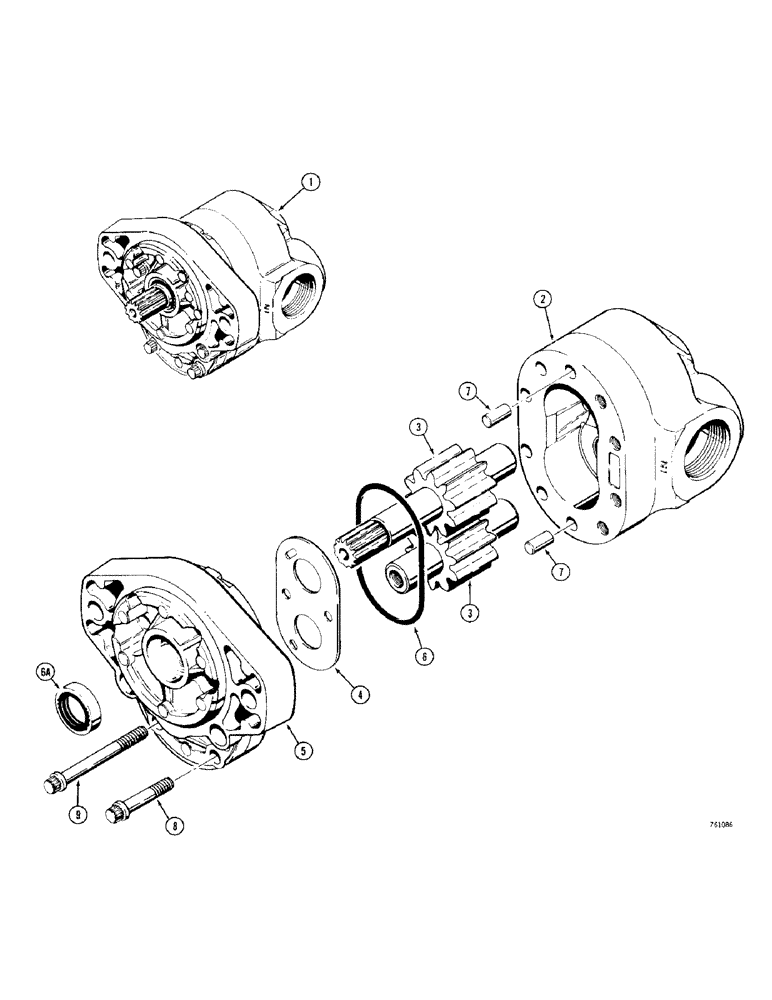

Запчасти Case 380CK (148) - D53434 FRONT MOUNTED HYDRAULIC PUMP (08) - HYDRAULICS

1

D53434

PUMP

- hydraulic, TRW 19-920-185-01, Inlcudes: Ref. 2 - 9

1шт.

1

87644730R

REMAN-HYD PUMP

380CK CASE LOADER/LANDSCAPER TRACTOR, Reman for New PN D53434

1шт.

1

87644730C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

RR43429

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - N.A. Only

1шт.

1

RC43429

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - N.A. Only

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - pump, includes bushings

1шт.

3

D54576

GEAR

SET - drive and driven

1шт.

4

D50104

PLATE

- pressure

1шт.

D54577

COVER

ASSEMBLY - front, Inlcudes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - front, includes bushings and seal pack

1шт.

6

F30271

SEAL

O-RING - pressure plate

1шт.

6a

D52477

SEAL

- shaft

1шт.

7

D50106

DOWEL

- cover

2шт.

8

166-48

SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

BOLT - 12 point, 3/8"-16 NC x 1-3/4"

3шт.

9

166-52

12 PT SCREW,Flg, 3/8" - 16 x 2 3/4", Gr 8

BOLT - 12 point, 3/8"-16 NC x 2-3/4"

5шт.
