Запчасти Case 380CK (146) - LOADER TILT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

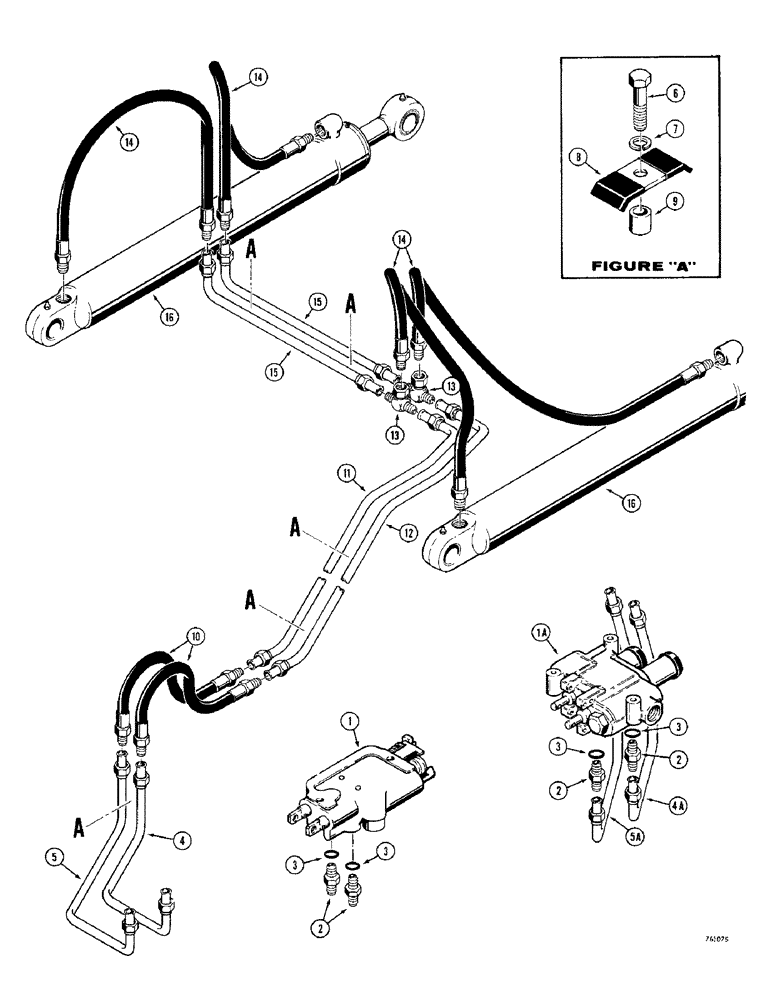

Схема запчастей Case 380CK - (146) - LOADER TILT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

D70113

VALVE - loader control, used on models with R.H. hydraulic reservoir only, parts list Figure 150, mounting parts and control levers Figure 170

1шт.

1a

D76134

VALVE - loader control, used on models with R.H. and L.H. hydraulic reservoir, parts list Figure 152, mounting parts and control levers Figure 172

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, male, straight, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

4

D71046

TUBE - from valve to rod end of cylinder, used with D70113 valve only

1шт.

4a

D76018

TUBE - from valve to rod end of cylinder, used with D76134 valve only 0.5" OD

1шт.

5

D71044

TUBE - from valve to closed end of cylinder, used with D70113 valve only

1шт.

5a

D76020

TUBE - from valve to closed end of cylinder, used with D76134 valve only 0.5" OD

1шт.

6

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

8

R17319

CLAMP

- tube

5шт.

9

D33551

BUSHING

SPACER - clamp

5шт.

10

D68339

HOSE

- to cylinders, 24" (610 MM) Long

2шт.

11

D68245

TUBE

- to closed end of cylinders

1шт.

12

D68243

TUBE - to rod end of cylinders

1шт.

13

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

FITTING - adjustable tee

2шт.

14

D68340

HOSE

- tilt cylinder, 24" (610 MM) Long

4шт.

15

D68247

TUBE - crossover

2шт.

16

G34852

CYLINDER ASSY.

CYLINDER - tilt, parts list Figure 164

2шт.

Выбрано товаров: 19
