Запчасти Case 380CK (140) - EQUIPMENT HYDRAULIC CIRCUIT, MODELS WITH DUAL RIGHT HAND AND LEFT HAND OIL RESERVOIRS (08) - HYDRAULICS

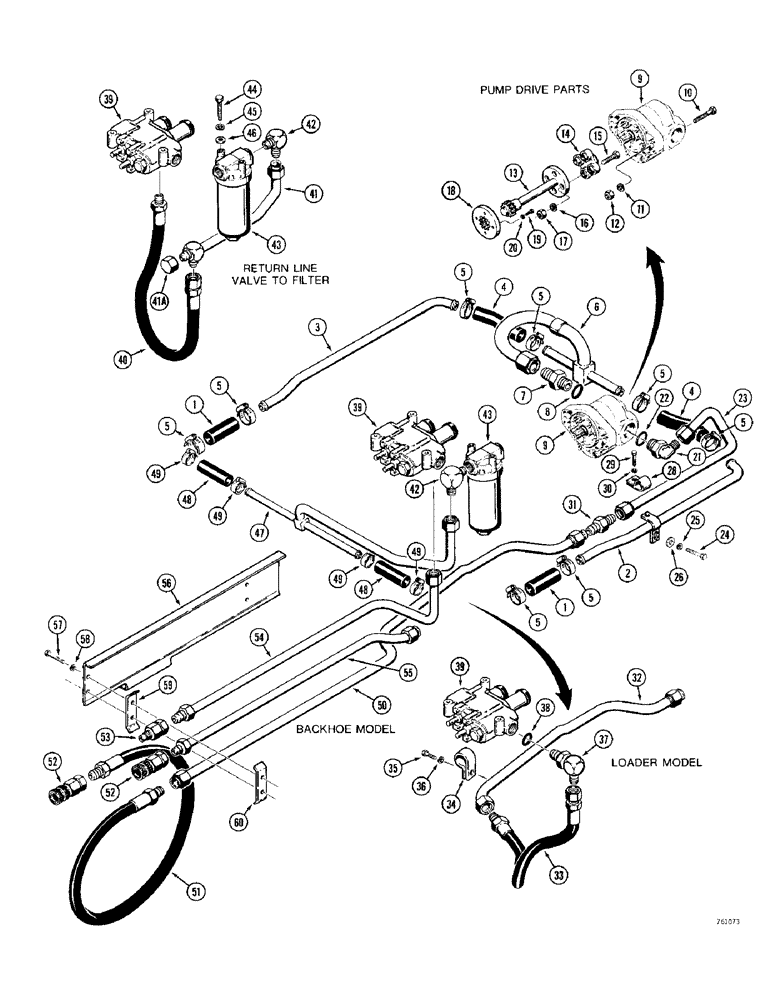

Схема запчастей Case 380CK - (140) - EQUIPMENT HYDRAULIC CIRCUIT, MODELS WITH DUAL RIGHT HAND AND LEFT HAND OIL RESERVOIRS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

R12351

LARGE HOSE

HOSE - suction tubes, 1" (25 MM) I.D. x 4" (102 MM) Long

2шт.

2

D76541

TUBE - suction, R.H. 11.6" L

1шт.

3

D76542

TUBE - suction, L.H. 11.6" L

1шт.

4

D25759

HOSE

- suction tubes, 1" (25 MM) I.D. x 7" (179 MM) Long

2шт.

5

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

8шт.

6

D65937

TUBE -, Serial Range: suction,-pump

1шт.

7

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

FITTING - male adapter

1шт.

8

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- fitting

1шт.

9

D53434

PUMP

- hydraulic, parts list Figure 148

1шт.

9

87644730R

REMAN-HYD PUMP

380CK CASE LOADER/LANDSCAPER TRACTOR, Reman for New PN D53434

1шт.

9

87644730C

CORE-HYDRAULIC PUMP

Return Number

1шт.

9

RR43429

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - N.A. Only

1шт.

9

RC43429

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - N.A. Only

1шт.

10

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2"-13 NC x 2", plated

2шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

D64584

SHAFT

AND COUPLING ASSEMBLY - pump drive

1шт.

13

NSS

NOT SOLD SEPARAT

SHAFT - coupling

1шт.

14

A51885

COUPLING, BREAK AWAY

COUPLING - flex

1шт.

15

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

16

92-7

LOCK WASHER,7/16"

WASHER - lock, 7/16"

4шт.

17

25-107

NUT,7/16"-14, G5

- hex, 7/16"-14 NC

4шт.

18

K950748

COUPLING, BREAK AWAY

COUPLING - pulley

1шт.

19

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

20

K19480

SPRING WASHER

- spring, 1/4"

4шт.

21

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

23

D76001

TUBE - pressure, from pump 1" OD x 7, 22.2" L

1шт.

24

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

2шт.

25

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

26

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

2шт.

28

49840

CLAMP

- pressure tube

1шт.

29

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

31

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

FITTING - straight connector

1шт.

32

D76693

TUBE ASSY.,1" OD

TUBE - pressure, valve inlet

1шт.

33

D55295

HOSE ASSY.

HOSE - pressure, valve inlet, 17" (432 MM) Long

1шт.

34

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- hose

1шт.

35

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

218-5115

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

FITTING - 90 degrees adjustable, at loader valve

1шт.

38

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- fitting

1шт.

39

D76134

VLAVE - loader control, parts list Figure 152

1шт.

40

D76187

HOSE - valve outer, 28" (711 MM) Long

1шт.

41

D76085

TUBE - to filter 1" OD x 2.51, 9.18" L

1шт.

41a

218-758

CAP,37 Degree, 1 5/16"-12

- tube, if used

1шт.

42

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

FITTING - 90 degree, male

2шт.

43

D73910

FILTER ASSY

FILTER - hydraulic oil, parts list Figure 156

1шт.

44

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

45

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

46

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

47

D75995

TUBE - filter to reservoirs 1" OD

1шт.

48

D24728

HOSE

- to reservoirs, 3/4" (19 MM) I.D. x 4-1/2" (114 MM) Long

2шт.

49

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

50

D76711

TUBE - pressure, to backhoe models only 1" OD

1шт.

51

D77100

HOSE

- pressure, to rear coupling, 50" (1270 MM) Long, backhoe models only

1шт.

52

D52800

COUPLING, QUICK, FEM

COUPLING - female, parts list Figure 158, backhoe models only

2шт.

53

D52694

QUICK MALE COUPLING

COUPLING - male, parts list Figure 158, backhoe models only

1шт.

54

D76015

TUBE - pressure, to loader valve, backhoe models only 1" OD x 29.8, 11.46" L

1шт.

55

1D76120

TUBE - return, to filter, backhoe models only

1шт.

56

D76179

BRACKET - rear tubes, backhoe models only

1шт.

57

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

HHCS - 1/4"-20 NC x 1-3/4", plated, backhoe models only

4шт.

58

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Backhoe models only 1/4"

4шт.

59

D76304

CLAMP - tube, backhoe models only

2шт.

60

D76181

CLAMP - tube, backhoe models only

2шт.

Выбрано товаров: 65
