Запчасти Case 380CK (136) - EQUIPMENT HYDRAULIC CIRCUIT, BACKHOE MODELS WITH SINGLE RIGHT HAND OIL RESERVOIR (08) - HYDRAULICS

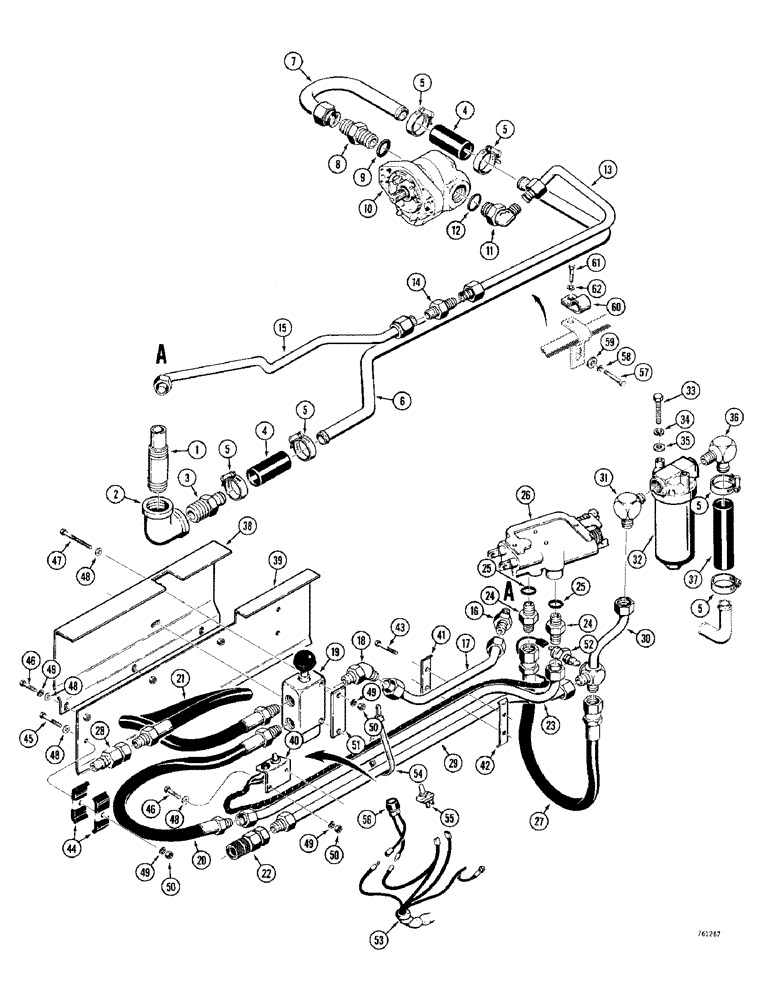

Схема запчастей Case 380CK - (136) - EQUIPMENT HYDRAULIC CIRCUIT, BACKHOE MODELS WITH SINGLE RIGHT HAND OIL RESERVOIR (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

D76871

SPARE PART

NIPPLE - pipe, 1-1/4" NPT special

1шт.

2

221-380

ELBOW,90 Degree, 1 1/4" NPT

FITTING - 90 degrees, 1-1/4" NPT

1шт.

3

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

- hose stem

1шт.

4

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction tubes 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

5

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

6шт.

6

D77103

TUBE - suction, from reservoir 18.8" L

1шт.

7

D69629

TUBE - suction, to pump 1.25" OD

1шт.

8

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

FITTING - male adapter, Inlcudes: Ref. 9

1шт.

9

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- fitting

1шт.

10

REF

INSTRUCTION

PUMP - see Figure 134 for pump and shaft

1шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - 90 degrees, adjustable, Inlcudes: Ref. 12

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

13

D71570

TUBE - pressure, from pump

1шт.

14

218-745

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FITTING - straight, male adapter

1шт.

15

D77205

TUBE,1" OD x 20.92, 29.1" L

- pressure

1шт.

16

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

FITTING - straight, male connector

1шт.

17

D77203

TUBE - pressure, to selector valve 1" OD x 10.13, 12.85" L

1шт.

18

218-547

ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF

FITTING - 45 degrees, at selector valve

1шт.

19

D65378

VALVE

- selector, parts list Figure 154

1шт.

20

D31621

HOSE - pressure, to loader, 32" (813 MM) Long

1шт.

21

H138172

HOSE - pressure, to backhoe, 52" (1321 MM) Long

1шт.

22

D52800

COUPLING, QUICK, FEM

COUPLING - female, parts list Figure 158

1шт.

23

D77239

TUBE - pressure, to loader valve 1" OD x 19.47, 28.82" L

1шт.

24

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight, male connector, Inlcudes: Ref. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

26

D70113

VALVE - loader, parts list Figure 150

1шт.

27

D77121

HOSE - return, from loader valve

1шт.

28

D52694

QUICK MALE COUPLING

COUPLING - male, backhoe return tube, parts list Figure 158

1шт.

29

D76120

TUBE - backhoe return 1" OD x 2.55, 36" L

1шт.

30

D76895

TUBE - to filter 1" OD x 2.69, 7.92" L

1шт.

31

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

FITTING - 90 degree, male

1шт.

32

D73910

FILTER ASSY

FILTER - hydraulic oil, parts list Figure 156

1шт.

33

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

35

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

36

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

FITTING - 90 degrees, hose stem

1шт.

37

D25759

HOSE

- to reservoir, 1" (25 MM) I.D. X 7" (178 MM) Long

1шт.

38

D77241

SHIELD - upper

1шт.

39

D77247

SHIELD - lower

1шт.

40

D77099

BRACKET - oil warning lamp

1шт.

41

D76304

CLAMP - tubes, front

1шт.

42

D76181

CLAMP - tubes, front

1шт.

43

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

HHCS - 1/4"-20 NC x 1-3/4", plated

2шт.

44

D33316

CLAMP

- tube, rear

2шт.

45

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

46

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

47

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

2шт.

48

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

8шт.

49

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

50

9635082

NUT,5/16" - 18, Gr 5

5шт.

51

D77101

PLATE - spacer, selector valve

1шт.

52

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

SENDING UNIT - oil temperature

1шт.

53

D77122

HARNESS - oil temperature light

1шт.

54

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - harness

1шт.

55

D67743

SWITCH

- test

1шт.

56

D77236

LAMP - oil temperature warning

1шт.

57

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

1шт.

58

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

59

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

1шт.

60

D49180

CLAMP

- tube

1шт.

61

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

HHCS - 3/8"-16 NC x 5/8", plated

1шт.

62

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 62
