Запчасти Case 380CK (132) - SELECTOR VALVE (08) - HYDRAULICS

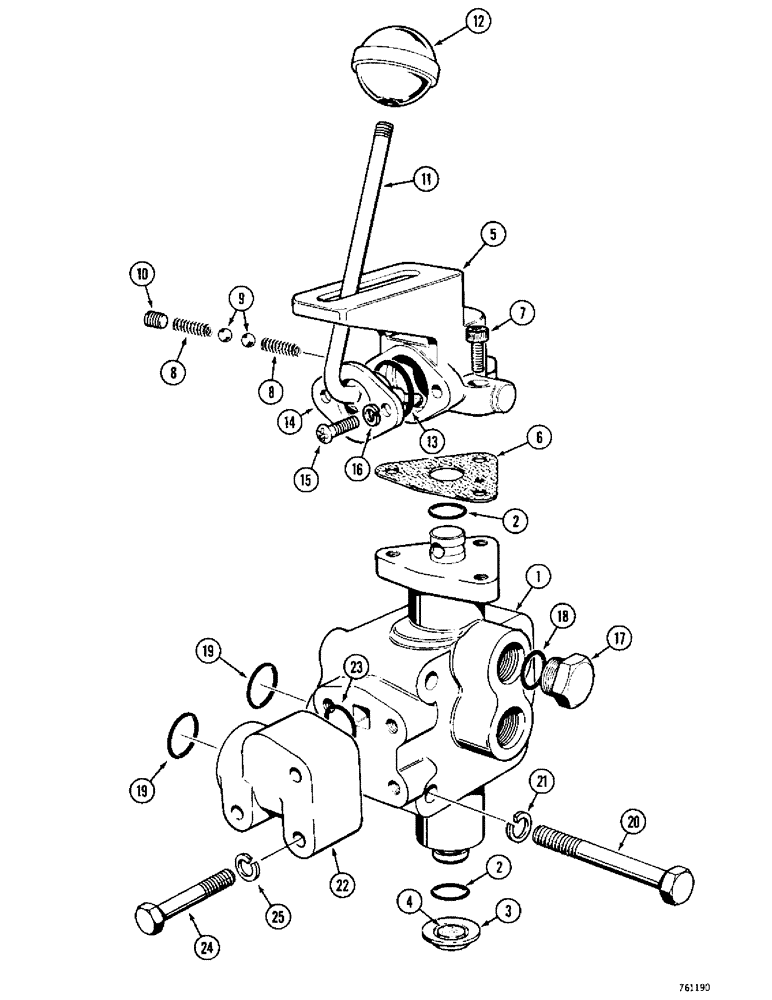

Схема запчастей Case 380CK - (132) - SELECTOR VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

K919825

NO LONGER SERVICED

VALVE ASSEMBLY - selector, Inlcudes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - valve

1шт.

2

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

- spool ends

2шт.

3

K919826

BREATHER

- valve

1шт.

4

K915393

FOAM

PAD - breather

1шт.

5

K919611

COVER

- valve

1шт.

6

K944527

GASKET,0.15mm Thk

- cover

1шт.

7

K606501

SCREW

- 1/4"-20 NC x 5/8"

3шт.

8

K625208

SPRING

- detent

2шт.

9

211-206

BALL,1/4" Dia

- steel, 1/4"

2шт.

10

176-510

SET SCREW,5/16"-18 x 1/4", Slotted

SCREW - set, 5/16"-18 NC x 1/4"

1шт.

11

K919612

LEVER

- control

1шт.

12

K902270

KNOB

- control lever

1шт.

13

K16351

O-RING,3.53mm Thk x 24.99mm ID

- plate

1шт.

14

K919613

SHIM

PLATE - lever retaining

1шт.

15

K614924

SCREW

- no. 10-32 NF x 1/2"

2шт.

16

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

17

214389

PLUG,3/4" - 16 ORB

Valve port, Includes Ref. 18 Hex Hd, 3/4"-16 ORB

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.

19

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- valve housing

2шт.

20

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8"-16 NC x 3"

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

K919614

ADAPTER

- valve

1шт.

23

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- adapter

1шт.

24

13-530

BOLT,Hex, 5/16" - 18 x 1-7/8", Gr 5

HHCS - 5/16"-18 NC x 1-7/8"

3шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

Выбрано товаров: 26
