Запчасти Case 380CK (130) - REAR AUXILIARY CONTROL VALVE (08) - HYDRAULICS

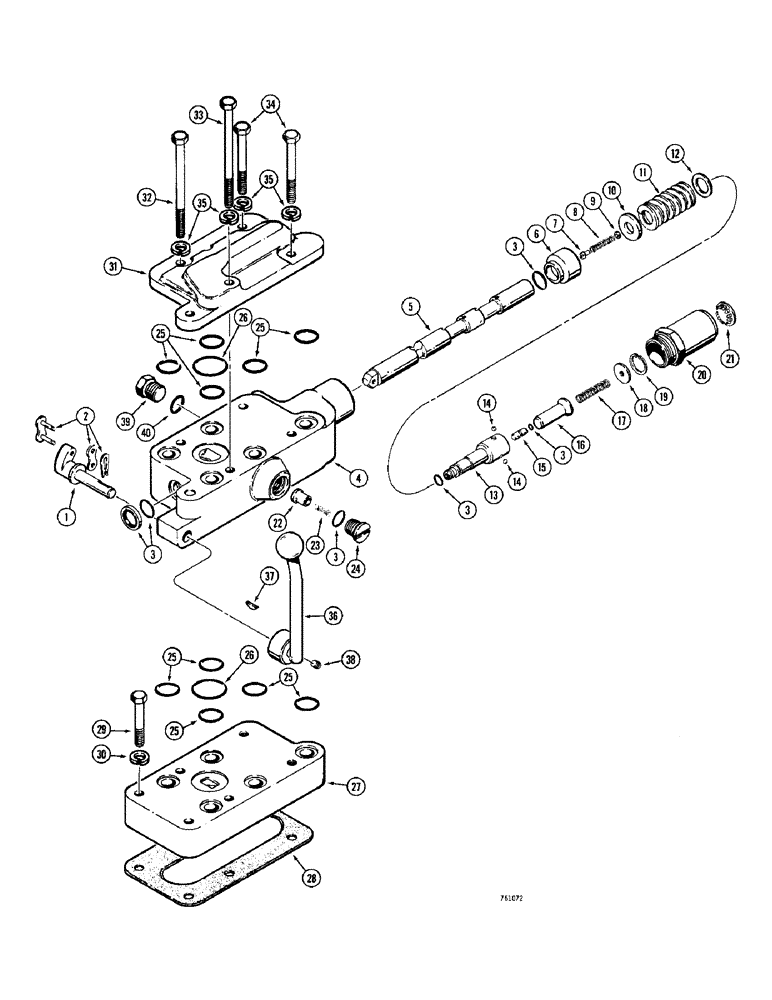

Схема запчастей Case 380CK - (130) - REAR AUXILIARY CONTROL VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

K943825

VALVE

ASSEMBLY - rear auxiliary control, Inlcudes: Ref. 1 - 24

1шт.

1

K963588

LEVER

SPINDLE - hand, Serial Range: lever-spool

1шт.

2

K963587

LINK

ASSEMBLY - connecting

1шт.

3

K962083

GASKET KIT

SEAL KIT - valve spool and check

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

6

K962060

BUSHING

- body

1шт.

7

K963579

BALL

POPPET - detent valve

1шт.

8

K963580

SPRING

- detent

1шт.

9

K962080

SHIM,.010" Thk

Detent .010" Thk

1шт.

9

K962081

SHIM,.005" Thk

Detent .005" Thk

1шт.

10

K962082

DISC

WASHER - spool centering

1шт.

11

K964904

SPRING

- spool centering

1шт.

12

K962078

WASHER

- spool centering

1шт.

13

K963581

RETAINER

- detent

1шт.

14

211-204

BALL

- steel, 3/16"

3шт.

15

K962071

PISTON

- release

1шт.

16

K963574

PLUNGER

- release

1шт.

17

K962073

SPRING

- release

1шт.

18

K962079

WASHER

- release

1шт.

19

K962076

RING, SNAP

RING - retaining

1шт.

20

K963575

CAP

- detent

1шт.

21

K962074

PLUG

- cap

1шт.

22

K962066

PLUNGER

POPPET - check valve

1шт.

23

K962067

SPRING

- check valve

1шт.

24

K962065

PLUG

- check valve

1шт.

25

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- valve to base and cover plates

10шт.

26

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- valve to base and cover plates

2шт.

27

K950386

BASE

PLATE - base

1шт.

28

K917387

GASKET

- base plate to axle case

1шт.

29

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

31

K919242

COVER

- valve body

1шт.

32

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8"-16 NC x 4-1/4"

2шт.

33

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8"-16 NC x 4-1/2"

1шт.

34

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8"-16 NC x 2-3/4"

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

36

K946382

LEVER

- control, bent

1шт.

36

K946383

LEVER

- control, straight, not shown

1шт.

37

126-6

WOODRUFF KEY,# 213, 1/8" x 3/8"

(No. 403) # 213, 1/8" x 3/8"

1шт.

38

K606322

SCREW

- set, 5/16"-18 NC x 3/8"

1шт.

39

214389

PLUG,3/4" - 16 ORB

Valve port, If used, Includes Ref. 40 Hex Hd, 3/4"-16 ORB

2шт.

40

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.

Выбрано товаров: 43
