Запчасти Case 380CK (128) - REAR AUXILIARY HYDRAULIC CIRCUIT, MODELS WITH BALL CHECK COUPLINGS (08) - HYDRAULICS

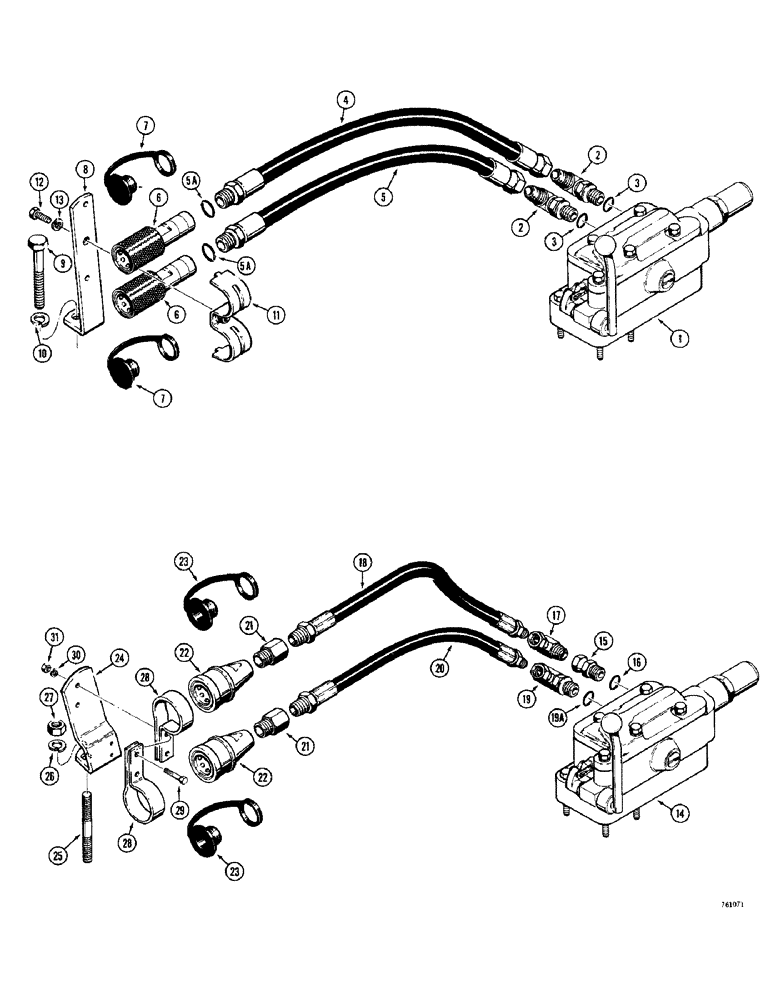

Схема запчастей Case 380CK - (128) - REAR AUXILIARY HYDRAULIC CIRCUIT, MODELS WITH BALL CHECK COUPLINGS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - auxiliary hydraulic circuit, see Figure 130

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING - 90 degrees, valve ports, Inlcudes: Ref. 3

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

4

K949705

HOSE

- top, 17" (432 MM) Long

1шт.

5

K949706

HOSE

- bottom, 14-1/2" (368 MM) Long, Inlcudes: Ref. 5A

1шт.

5a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hoses

1шт.

6

A141156

COUPLING, BREAK AWAY

COUPLING - disconnect, female, see Figure 160 for parts list

2шт.

7

A135004

PLUG

- dust, coupling

2шт.

8

K949670

BRACKET

- support

1шт.

9

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

K949616

CLIP

CLAMP - couplings

1шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

REF

INSTRUCTION

VALVE - auxiliary hydraulic circuit, see Figure 130, models w/ poppet check couplings

1шт.

15

K945838

FITTING

- straight, front port, models w/ poppet check couplings, Inlcudes: Ref. 16

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting, models w/ poppet check couplings

1шт.

17

K945837

FITTING

- 90 degrees, front port, models w/ poppet check couplings

1шт.

18

K947096

HOSE

- top, 18" (457 MM) Long, models w/ poppet check couplings

1шт.

19

K945836

FITTING

- 90 degrees, rear port, models w/ poppet check couplings, Inlcudes: Ref. 19A

1шт.

19a

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting, models w/ poppet check couplings

1шт.

20

K947097

HOSE

- 15" (381 MM) Long, models w/ poppet check couplings

1шт.

21

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

FITTING - adapter, hose to coupling, models w/ poppet check

2шт.

22

A28542

COUPLING, QUICK, FEM

COUPLING - disconnect, female, see Figure 160 for parts list, models w/ poppet check

2шт.

23

A22768

PLUG

- dust, coupling, models w/ poppet check

2шт.

24

K947101

BRACKET

- support, models w/ poppet check couplings

1шт.

25

K608411

STUD

- 1/2"-13 NC, models w/ poppet check couplings

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER - lock, 1/2", plated, models w/ poppet check couplings

1шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

Models w/ poppet check couplings 1/2"-13, G5

1шт.

28

K947120

CLAMP

- coupling, models w/ poppet check

2шт.

29

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Models w/ poppet check couplings Hex, 1/4"-20 x 1", G5

2шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Models w/ poppet check couplings 1/4"

2шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Models w/ poppet check couplings

2шт.

Выбрано товаров: 33
