Запчасти Case 380CK (124) - SELECTAMATIC PUMP (08) - HYDRAULICS

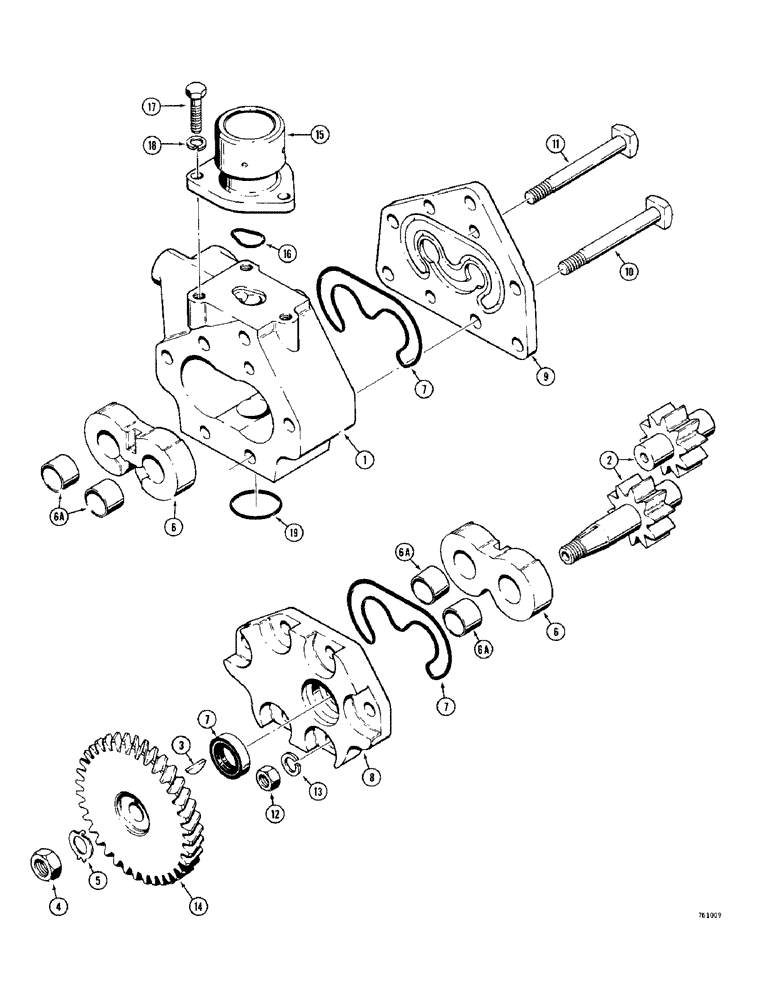

Схема запчастей Case 380CK - (124) - SELECTAMATIC PUMP (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

K962635

PUMP

ASSEMBLY - selectamatic, Inlcudes: Ref. 1 - 13

1шт.

K962635R

REMAN-HYD PUMP

380CK

1шт.

K962635C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

2

K962128

GEAR

SET - pump

1шт.

3

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

(No. 405) #5, 1/8" x 5/8"

1шт.

4

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2"-20 NF

1шт.

5

K626382

WASHER

- tab

1шт.

6

K962125

BEARING

- pump, Inlcudes: Ref. 6A

2шт.

6a

NSS

NOT SOLD SEPARAT

BUSHING - bearing

2шт.

7

K962136

GASKET KIT

SEAL KIT - hydraulic pump

1шт.

8

K962132

COVER

PLATE - end, pump

1шт.

9

K962129

FLANGE

- pump

1шт.

10

K962130

BOLT

- special, 3/8"-24 NF

4шт.

11

K962131

BOLT

- dowel, 3/8"-24 NF

2шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- 3/8"-24 NF

6шт.

13

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

6шт.

14

K927097

GEAR

- driven

1шт.

15

K919372

VALVE

ASSEMBLY - relief, preset

1шт.

16

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- relief valve

1шт.

17

K19222

BOLT

- 5/16" BSF x 1", relief valve

3шт.

18

92-5

LOCK WASHER,5/16"

3шт.

19

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING - pump inlet

1шт.

Выбрано товаров: 23
