Запчасти Case 380CK (122) - SELECTAMATIC PUMP AND SUPPORT PLATE (08) - HYDRAULICS

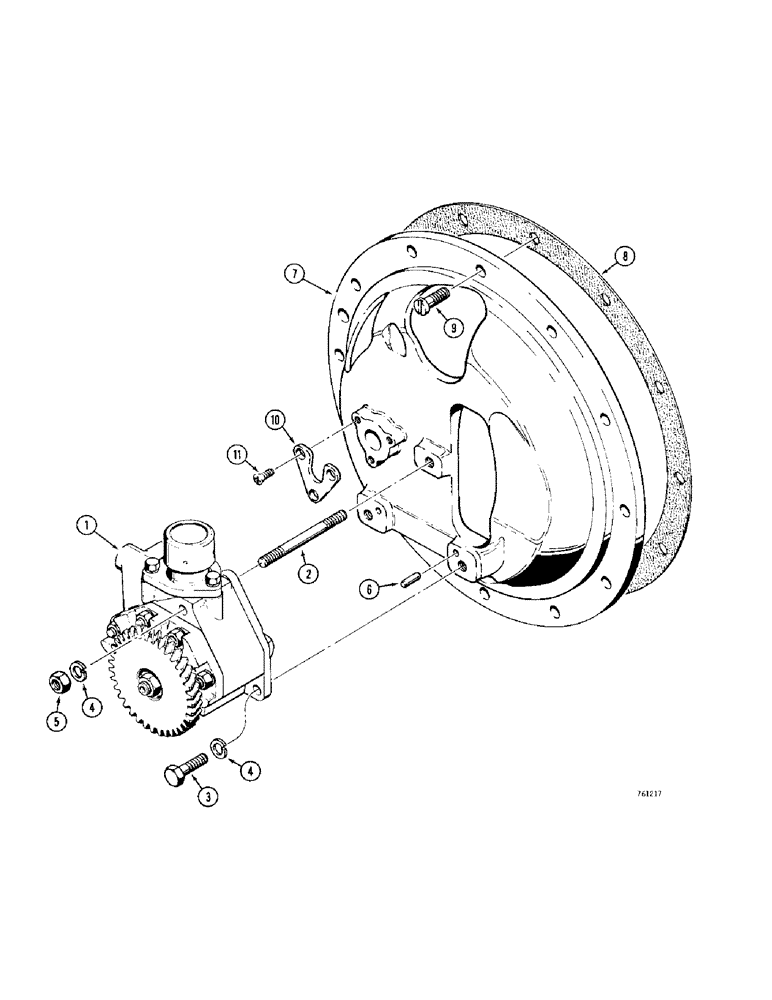

Схема запчастей Case 380CK - (122) - SELECTAMATIC PUMP AND SUPPORT PLATE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - selectamatic, parts list Figure 124

1шт.

2

K608221

STUD

- 3/8"-16 NC x 3-11/16"

1шт.

3

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

1шт.

6

K24853

PIN

DOWEL - 1/4" x 11/16"

2шт.

7

K905667

SUPPORT

PLATE - support

1шт.

8

K922591

GASKET

- plate

2шт.

9

K605157

SCREW

- special, 7/16"-14 NC x 1-1/8"

1шт.

10

K89170

SHIM

PLATE - tube clamp

1шт.

11

K603662

SCREW

- 1/4"-20 NC x 5/8"

3шт.

Выбрано товаров: 11
