Запчасти Case 380CK (116) - SELECTAMATIC CONTROL VALVE (08) - HYDRAULICS

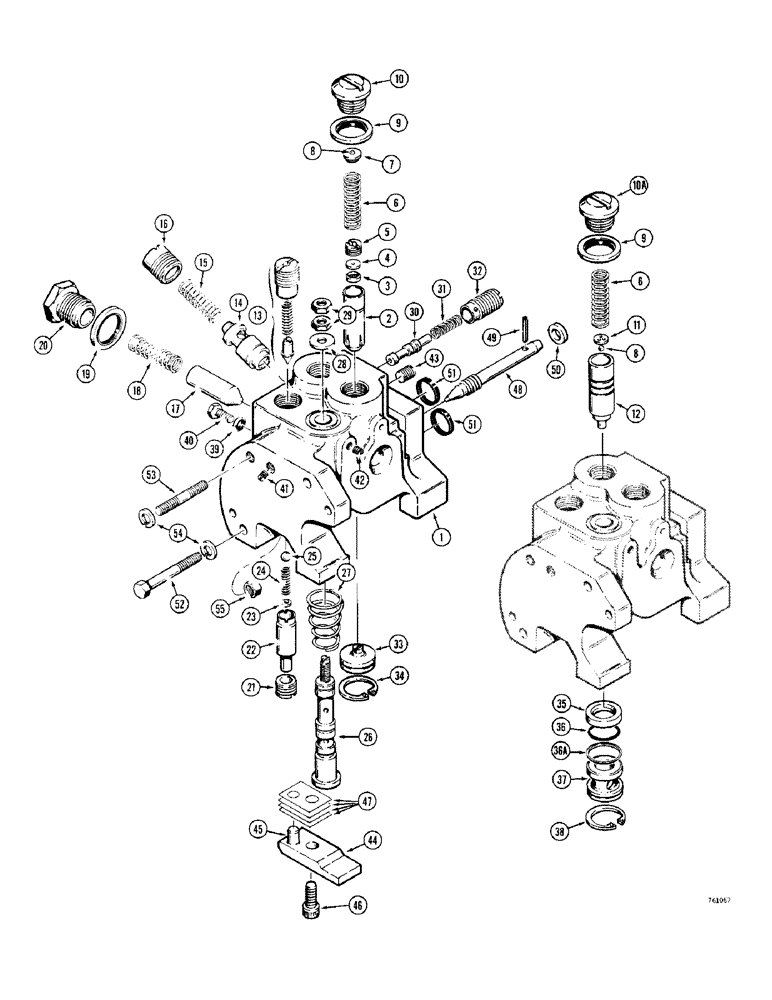

Схема запчастей Case 380CK - (116) - SELECTAMATIC CONTROL VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

K947765

VALVE

ASSEMBLY - selectamatic control, Inlcudes: Ref. 1 - 43

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUNGER - by-pass

1шт.

3

K921154

FILTER

- by-pass plunger

1шт.

4

K913621

WASHER

DISC - orifice

1шт.

5

K947759

PLUG

- special

1шт.

6

K24832

SPRING

- by-pass and hold valves

2шт.

7

K947977

RETAINER

- ball, by-pass valve

1шт.

8

211-203

BALL,1/8" Dia

- by-pass and hold valves

1шт.

9

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

WASHER - sealing, 5/8"

2шт.

10

K948067

PLUG

- special, by-pass valve

1шт.

10a

K913242

PLUG

- special, hold valve

1шт.

11

K920136

SHIM

RETAINER - ball, hold valve

1шт.

12

NSS

NOT SOLD SEPARAT

PLUNGER - hold valve

1шт.

13

K961794

VALVE

- relief, preset

1шт.

14

K944592

SPOOL

- valve, lowering rate

1шт.

15

K625108

SPRING

- spool, lowering rate

1шт.

16

K909397

SPRING

PLUG - special

1шт.

17

K916395

PLUNGER

- check valve

1шт.

18

K625167

SPRING

- check valve

1шт.

19

K623530

SEAL

WASHER - sealing, 3/4"

1шт.

20

K916397

PLUG

- special

1шт.

21

K909398

CAP

FERRULE - TCU valve

1шт.

22

K909403

SPRING

PLUNGER - TCU valve

1шт.

23

K626843

WASHER

- special

1шт.

24

K625190

SPRING

- TCU valve

1шт.

25

211-206

BALL,1/4" Dia

- steel, 1/4"

1шт.

26

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

27

K625272

BEARING

SPRING - valve spool

1шт.

28

K19470

WASHER

- special

1шт.

29

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4"-28 NF

2шт.

30

NSS

NOT SOLD SEPARAT

PLUNGER - latching valve

1шт.

31

K625180

SPRING

- latching valve

1шт.

32

K913971

PLUG

- special

1шт.

33

NSS

NOT SOLD SEPARAT

SEAT - by-pass valve

1шт.

34

A15110

SNAP RING,0.812", Int, #81

RING, Snap, 0.812", Int, #81

1шт.

35

NSS

NOT SOLD SEPARAT

SEAT - hold valve

1шт.

36

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

SEAL - seat to spool

1шт.

36a

K628054

RING

- anti-extrusion

1шт.

37

NSS

NOT SOLD SEPARAT

SPOOL - hold valve

1шт.

38

A15110

SNAP RING,0.812", Int, #81

RING, Snap, 0.812", Int, #81

1шт.

39

K623521

WASHER

- sealing

1шт.

40

K11963

SCREW

PLUG - special

1шт.

41

176-500

PLUG - slotted, 1/4"-20 NC x 1/4" 1/4"-20 x 1/4", Slotted

1шт.

42

NSS

NOT SOLD SEPARAT

PLUG - slotted, special

2шт.

43

176-522

PLUG - slotted, 3/8"-16 NC x 7/16" 5/16"-18 x 7/16", Slotted

1шт.

44

K912464

WASHER

PLATE - abutment

1шт.

45

K24853

PIN

DOWEL - plate to valve body

1шт.

46

K606803

SCREW

- special

1шт.

47

K912465

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

47

K912466

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

47

K912467

SHIM,.015" Thk

(0.381 mm) .015" Thk

1шт.

K920132

NEEDLE

VALVE ASSEMBLY - complete, Inlcudes: Ref. 48 - 49

1шт.

48

NSS

NOT SOLD SEPARAT

NEEDLE - valve

1шт.

49

138-38

LOCK PIN,3/32" x 9/16", Slotted

PIN, 3/32" x 9/16", Slotted

1шт.

50

K920125

RETAINER

- needle valve

1шт.

51

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

- valve body

2шт.

52

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

53

K608143

STUD

- 5/16"-18 NC x 1-1/2"

2шт.

54

92-5

LOCK WASHER,5/16"

3шт.

55

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

2шт.

K962813

GASKET

KIT - seal, selectamatic control valve

1шт.

Выбрано товаров: 62
