Запчасти Case 380CK (112) - SELECTAMATIC CONTROL MECHANISM (08) - HYDRAULICS

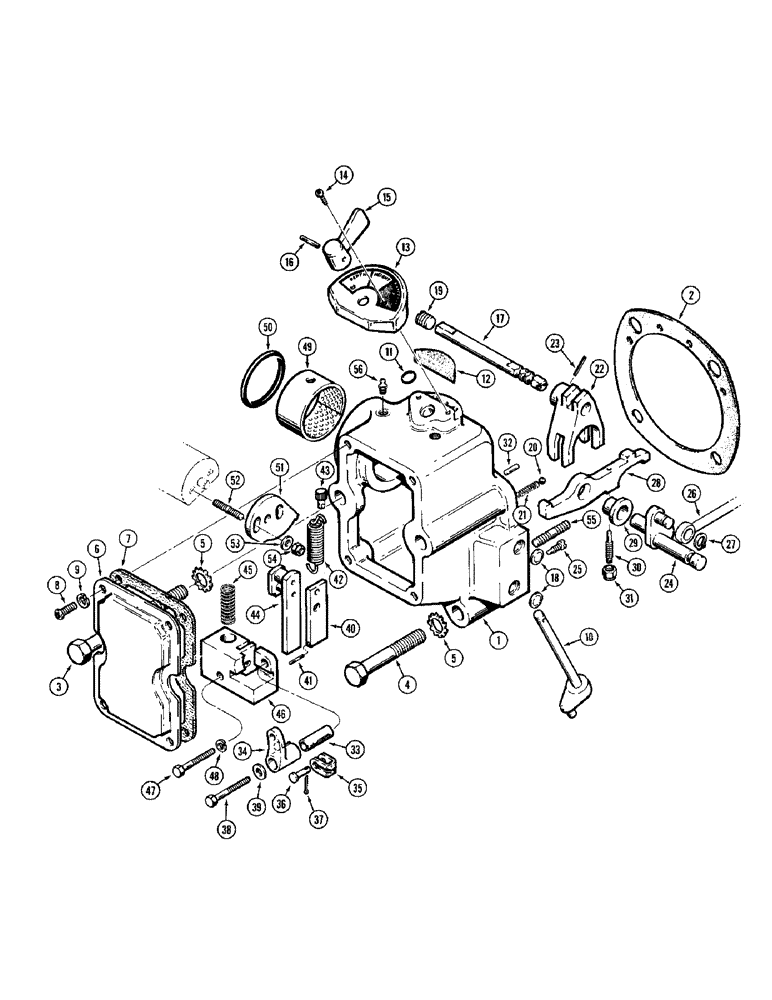

Схема запчастей Case 380CK - (112) - SELECTAMATIC CONTROL MECHANISM (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

K913003

BRACKET

HOUSING - control mechanism

1шт.

2

K913141

GASKET

-, Serial Range: housing-case

1шт.

3

13-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

Housing to case Hex, 1/2"-13 x 5", G5

2шт.

4

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Housing to case Hex, 1/2"-13 x 3 1/4", G5

2шт.

5

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.

6

K910859

COVER

- control mechanism housing

1шт.

7

K909558

GASKET,1.59mm Thk

-, Serial Range: cover-housing

1шт.

8

K604477

SCREW

- 5/16"-18 NC x 5/8"

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

K919363

KNOB

ROD - selector

1шт.

11

K24554

O-RING

- rod

1шт.

12

K923237

SKID/SHOE

PAD - breather

1шт.

13

K909542

WASHER

PANEL - selector

1шт.

14

K614943

SCREW

- no. 10-32 NF x 3/8"

2шт.

15

K947405

KNOB

POINTER - control mechanism

1шт.

16

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

17

K913160

SELECTOR

SHAFT - selector

1шт.

18

41-10

PLUG

- expansion, 5/8"

2шт.

19

K923284

PLUG

- slotted

1шт.

20

211-206

BALL,1/4" Dia

- steel, 1/4"

1шт.

21

K24563

SPRING

- detent

1шт.

22

K942417

SELECTOR

FORK - selector

1шт.

23

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

24

K913119

ROCKER LEVER

SHAFT - rocker

1шт.

25

K602750

SCREW

- retaining

1шт.

26

REF

INSTRUCTION

ROD - connecting, see Figure 108

1шт.

27

K621562

RING, SNAP

RING - retaining

1шт.

K913088

ROCKER LEVER

LEVER ASSEMBLY - rocker, Inlcudes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

LEVER - rocker

1шт.

29

K913087

BUSHING

- lever

1шт.

30

K909552

SCREW,3/16"

- adjusting

1шт.

31

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4"-20 NC

1шт.

32

K24853

PIN

DOWEL -, Serial Range: housing-case

1шт.

33

K627019

BUSHING

- bolt

1шт.

34

K913607

LEVER

- actuating

1шт.

35

K912967

WASHER

CLEVIS -, Serial Range: cable-lever

1шт.

36

K912968

PIN

- clevis

1шт.

37

132-3

COTTER PIN,1/16" x 3/8"

PIN, Split (Cotter), 1/16" x 3/8"

1шт.

38

K600361

BOLT

HHCS - 5/16"-18 NC x 1-7/8"

1шт.

39

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

40

K912971

ROD

PLATE - push, depth control

1шт.

41

138-38

LOCK PIN,3/32" x 9/16", Slotted

PIN, 3/32" x 9/16", Slotted

1шт.

42

K624922

SPRING

- depth control plate

1шт.

43

K621833

SPRING

PIN - spring anchor

1шт.

44

K921722

ROD

LEVER - push, height control

1шт.

45

K625196

SPRING

- height control lever

1шт.

46

K916362

GUIDE

BLOCK - guide

1шт.

47

13-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

1шт.

48

92-5

LOCK WASHER,5/16"

1шт.

49

K912012

BUSHING

- lift shaft

1шт.

50

K623538

O-RING,6.99mm Thk x 50.16mm ID, 60 Duro

- lift shaft seal

1шт.

51

K926095

CAM

PLATE - cam

1шт.

52

K608001

STUD

- 1/4"-20 NC x 1-1/16"

2шт.

53

K19470

WASHER

- flat, 1/4"

2шт.

54

86625061

NUT,1/4"-20, GB

NUT - hex, lock, 1/4"-20 NC

2шт.

55

K608143

STUD

- housing to case, 5/16"-18 NC x 1-1/2"

2шт.

56

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

Выбрано товаров: 57
