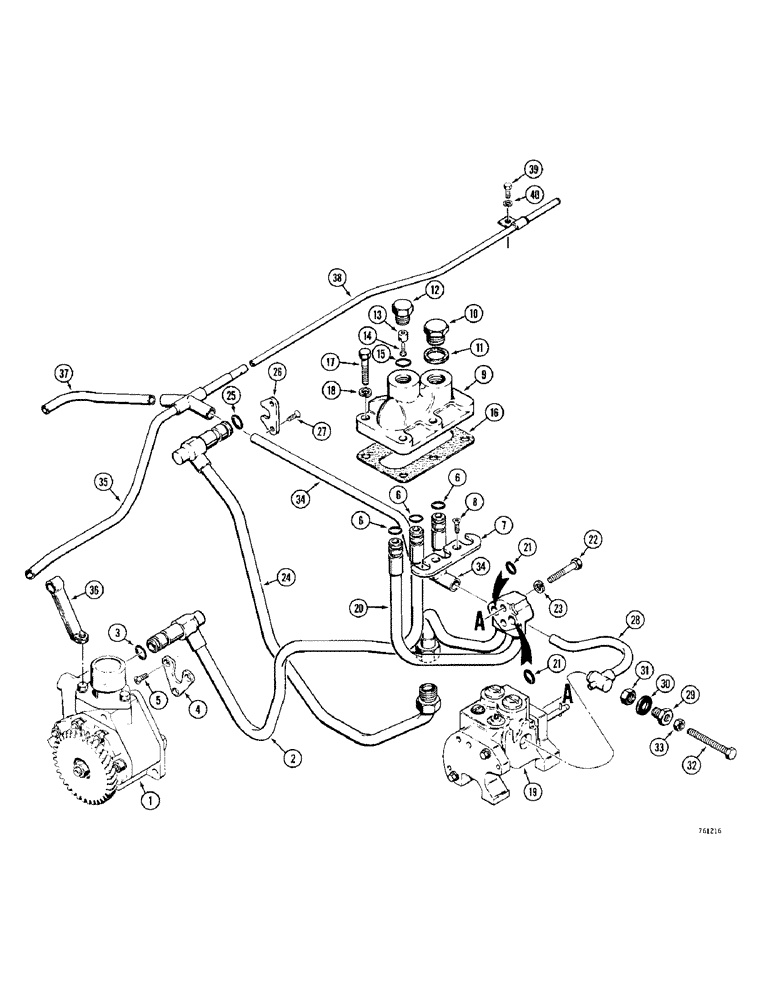

Запчасти Case 380CK (106) - SELECTAMATIC HYDRAULIC CIRCUIT, OIL DISTRIBUTION LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - selectamatic, see Figure 124

1шт.

2

K952172

PIPE,11.281, 5.687" L

TUBE - pump outlet

1шт.

3

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- tube

1шт.

4

K89170

SHIM

PLATE - tube clamp

1шт.

5

K603662

SCREW

- 1/4"-20 NC x 5/8"

3шт.

6

K623557

O-RING

- tubes

3шт.

7

K915344

WASHER

PLATE - locating

1шт.

8

K603662

SCREW

- 1/4"-20 NC x 5/8"

2шт.

9

K917127

CONNECTOR, ELEC

PLATE - connector, axle case, if used, for models with rear auxiliary control valve, see Figure 130

1шт.

10

K619528

PLUG

- oil return, 7/8"-14 NF

1шт.

11

K30085

GASKET

WASHER - fiber, 7/8"

1шт.

K947236

PLUG

- magnetic, 3/4"-16 NF, Inlcudes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

PLUG

1шт.

13

K946949

MAGNET

1шт.

14

K19391

SCREW

- special

1шт.

15

K623589

O-RING

WASHER - sealing, 3/4"

1шт.

16

K917387

GASKET

- connector plate

1шт.

17

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

HHCS - 3/8"-16 NC x 1-3/8"

4шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY - selectamatic control, parts list Figure 116

1шт.

20

K952171

PIPE,6.312" L

TUBE - control valve

1шт.

21

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

- tube

2шт.

22

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

K952173

PIPE,15.875, 11.062" L

TUBE - to cylinder, pressure

1шт.

25

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- tube

1шт.

26

K910105

WASHER

PLATE - clamping

1шт.

27

K603662

SCREW

- 1/4"-20 NC x 5/8"

2шт.

28

K915339

TUBE

- control, Serial Range: valve-connector

1шт.

29

K912269

BUSHING

- reducing, tightening bolt

1шт.

30

K626577

WASHER

- sealing, 1/2"

1шт.

31

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC

1шт.

32

113-107

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5, Full Thd

HHCS - 5/16"-18 NC x 2-3/4"

1шт.

33

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

34

K915337

PIPE

TUBE - valve to cross piece

1шт.

35

K913783

PIPE

TUBE, Serial Range: --PTO

1шт.

36

K621660

CLIP

CLAMP - tube

1шт.

37

K913785

PIPE,0.5" OD

TUBE - to cylinder, lubrication

1шт.

38

K948842

PIPE

TUBE - hydraulic gear box

1шт.

39

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

HHCS - 5/16"-20 NC x 1"

1шт.

40

92-5

LOCK WASHER,5/16"

1шт.
