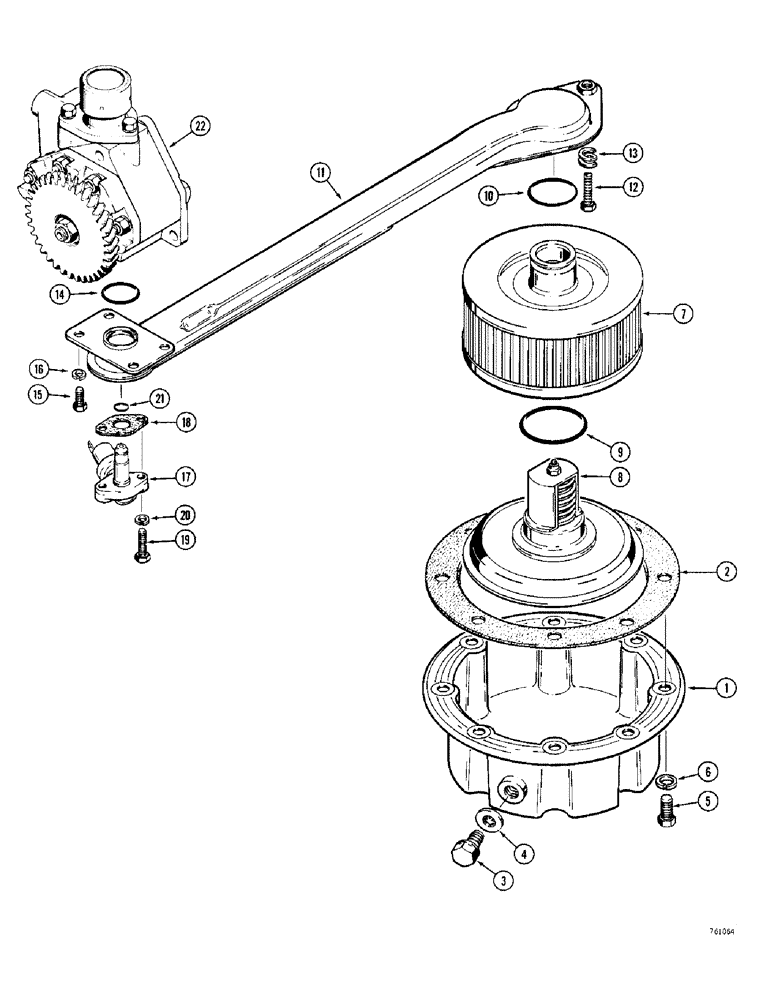

Запчасти Case 380CK (104) - SELECTAMATIC HYDRAULIC CIRCUIT, OIL FILTER TO PUMP (08) - HYDRAULICS

1

K920520

COVER

- filter

1шт.

2

K906764

GASKET

- filter cover

1шт.

3

K19581

PLUG

- drain, 1/4" BSP

1шт.

4

K626765

GASKET

WASHER - sealing, 1/2"

1шт.

5

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

HHCS - 5/16"-18 NC x 5/8"

8шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

7

K920522

FILTER, ELEMENT

ELEMENT - filter

1шт.

8

K920521

VALVE

SCREEN AND VALVE ASSEMBLY

1шт.

9

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- lower

1шт.

10

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- upper

1шт.

11

K920860

PIPE

TUBE -, Serial Range: filter-pump

1шт.

12

K602850

SCREW,Set, 5/16" - 18 x 1 1/8", Gr S

HHCS - 5/16"-18 NC x 1-1/8"

1шт.

13

K626620

SPRING WASHER

- special spring, 5/16"

1шт.

14

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING -, Serial Range: tube-pump

1шт.

15

K12131

BOLT

- special, Serial Range: tube-pump

4шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

K921214

ADAPTER

- warning lamp sending unit, see Figure 36 for sending unit

1шт.

18

K921220

GASKET

- adapter

1шт.

19

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

K14658

O-RING,0.07" Thk x 0.239" ID

- adapter

1шт.

22

REF

INSTRUCTION

PUMP ASSEMBLY - selectamatic, see Figure 124

1шт.
