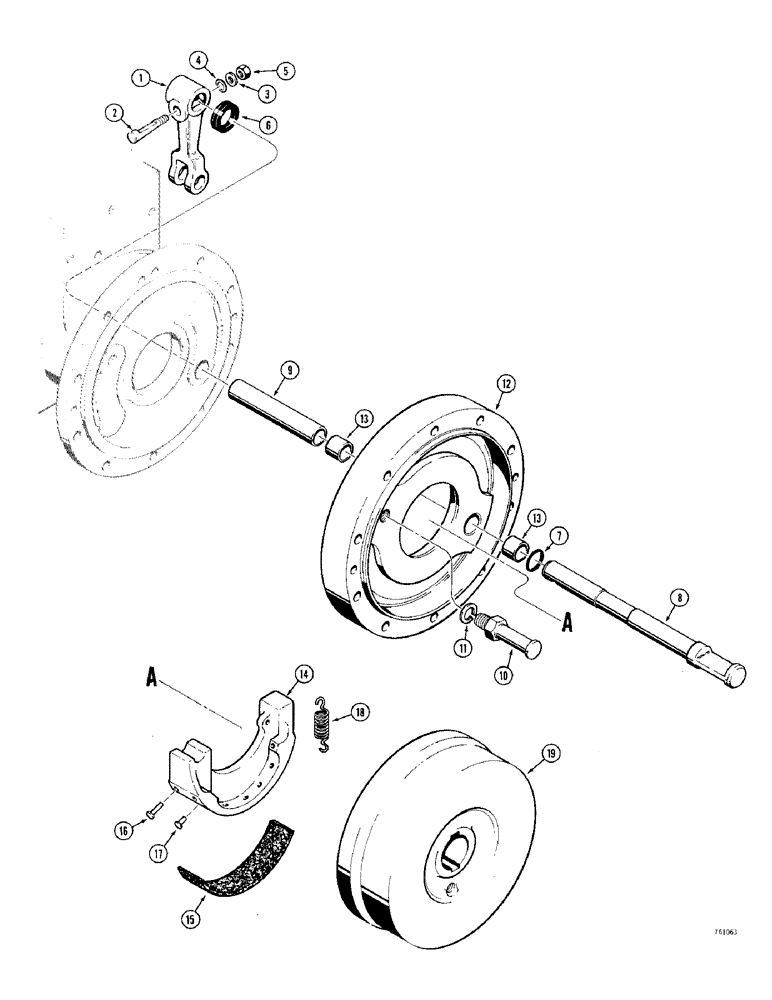

Запчасти Case 380CK (102) - BRAKE DRUMS AND BRAKE SHOES (07) - BRAKES

1

K928529

LEVER - cam

2шт.

2

K609425

LARGE PIN

PIN - cam lever

2шт.

3

K19472

WASHER

- flat, 3/8"

2шт.

4

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

6

K85417

SEAL

- rubber boot

2шт.

7

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- seal

2шт.

8

K948225

BRAKE

SHAFT - brake cam, L.H.

1шт.

8

K948226

BRAKE

SHAFT - brake cam, R.H.

1шт.

9

K912002

GUARD

SPACER - sleeve, brake cam shaft

2шт.

10

K947773

PIN

- pivot

2шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

K920431

ADAPTER

PLATE - adapter, R.H.

1шт.

12

K920432

ADAPTER

PLATE - adapter, L.H.

1шт.

13

K30835

BUSHING

- axle housing

4шт.

K921494

BRAKE SHOE

SHOE ASSEMBLY - includes lining and rivets, Inlcudes: Ref. 14 - 17

4шт.

14

NSS

NOT SOLD SEPARAT

SHOE - less lining

1шт.

15

K921495

BRAKE

LINING - brake shoe, includes rivets

1шт.

16

K624029

RIVET

- ends, long

4шт.

17

K624028

RIVET

- center, short

8шт.

18

K63462

SPRING

- brake shoes

4шт.

19

K917989

BRAKE

DRUM - brake

2шт.
