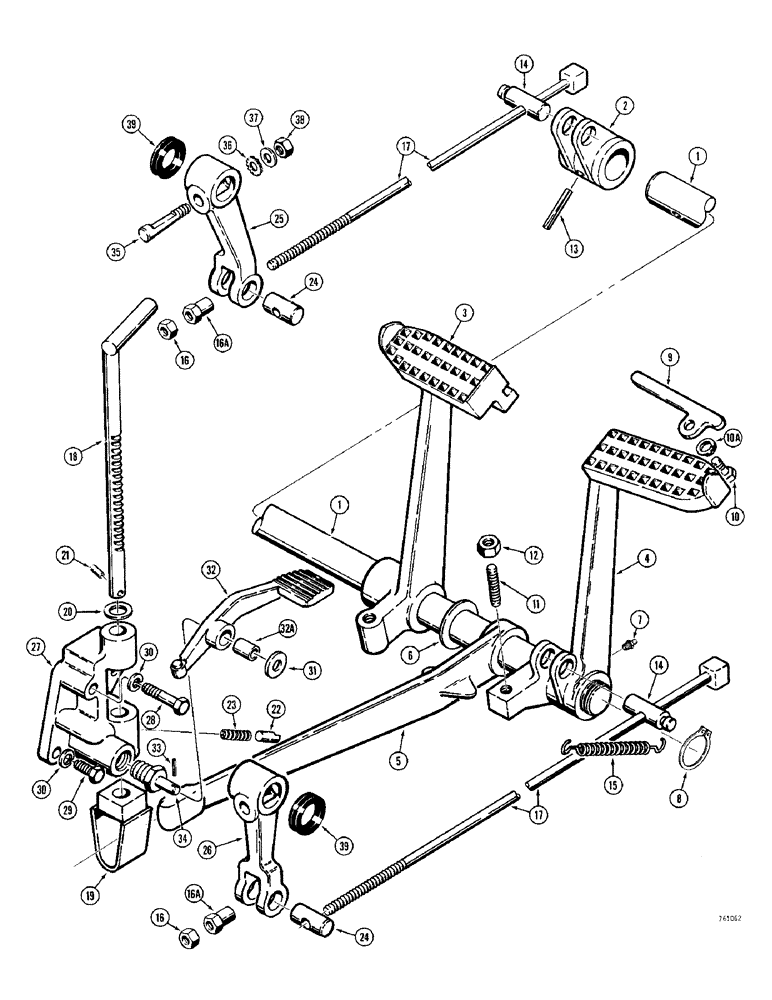

Запчасти Case 380CK (100) - BRAKE PEDALS AND LINKAGE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
K912042
BRAKE
SHAFT - cross
1шт.
2
K912043
LEVER
- cross shaft
1шт.
3
K940736
BRAKE
PEDAL - brake, L.H.
1шт.
4
K912046
BRAKE
PEDAL - brake, R.H.
1шт.
5
K929790
LEVER
- hand brake
1шт.
6
K30884
SHIM
- pedal
1шт.
7
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg
1шт.
8
K11129
RING, SNAP
RING - retaining
1шт.
9
K38656
PLATE
- locking, pedals
1шт.
10
K600500
SCREW
HHCS - special, 3/8"-16 NC
1шт.
10a
K626700
WASHER
- special, lapped, 3/8"
1шт.
11
K603009
SCREW
- set, 7/16"-14 NC x 1-3/4"
1шт.
12
425-147
JAM NUT,Jam, 7/16"-14, G5
- lock, 7/16"-14 NC
1шт.
13
K623732
PIN
- Mills, 3/8" x 2"
3шт.
14
K919706
PIN
- brake rods
2шт.
15
K624927
SPRING
- return
2шт.
16
25-106
NUT,3/8"-16, G5
- hex, 3/8"-16 NC
2шт.
16a
K607504
NUT
- special, 3/8"-16 NC
2шт.
17
K929563
ROD
- brake
2шт.
18
K916989
LEVER
- hand
1шт.
19
K949260
FORK
1шт.
20
K626736
WASHER
- special, 5/8"
1шт.
21
K623892
PIN
- roll, 5/16" x 1-1/2"
1шт.
22
K909588
PAWL
1шт.
23
K14651
SPRING
1шт.
24
K14744
PIN
- lever
2шт.
25
K928589
LEVER
- cam, L.H.
1шт.
26
K928589
LEVER
- cam, R.H.
1шт.
27
K912048
HOUSING
- hand brake lever
1шт.
28
K600608
BOLT
HHCS - 7/16"-14 NC x 2-1/4", Serial Range: housing-frame
1шт.
29
13-1020
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd
Housing to frame Hex, 5/8"-11 x 1 1/4", G5, Full Thd
2шт.
30
92-7
LOCK WASHER,7/16"
WASHER - lock, 7/16"
3шт.
31
K626674
WASHER
- special, 1/2"
1шт.
32
K962631
PEDAL
- differential lock, Includes: Ref. 32A
1шт.
32a
K621346
BUSHING
- pedal
1шт.
33
138-61
LOCK PIN,1/8" x 1", Slotted
PIN, 1/8" x 1", Slotted
1шт.
34
K919577
PIN
- pedal pivot
1шт.
35
K609425
LARGE PIN
PIN - can lever
2шт.
36
193-10
LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 3/8"
2шт.
37
K19472
WASHER
- flat, 3/8"
2шт.
38
25-106
NUT,3/8"-16, G5
- hex, 3/8"-16 NC
2шт.
39
K85417
SEAL
- dust
2шт.
Выбрано товаров: 42
