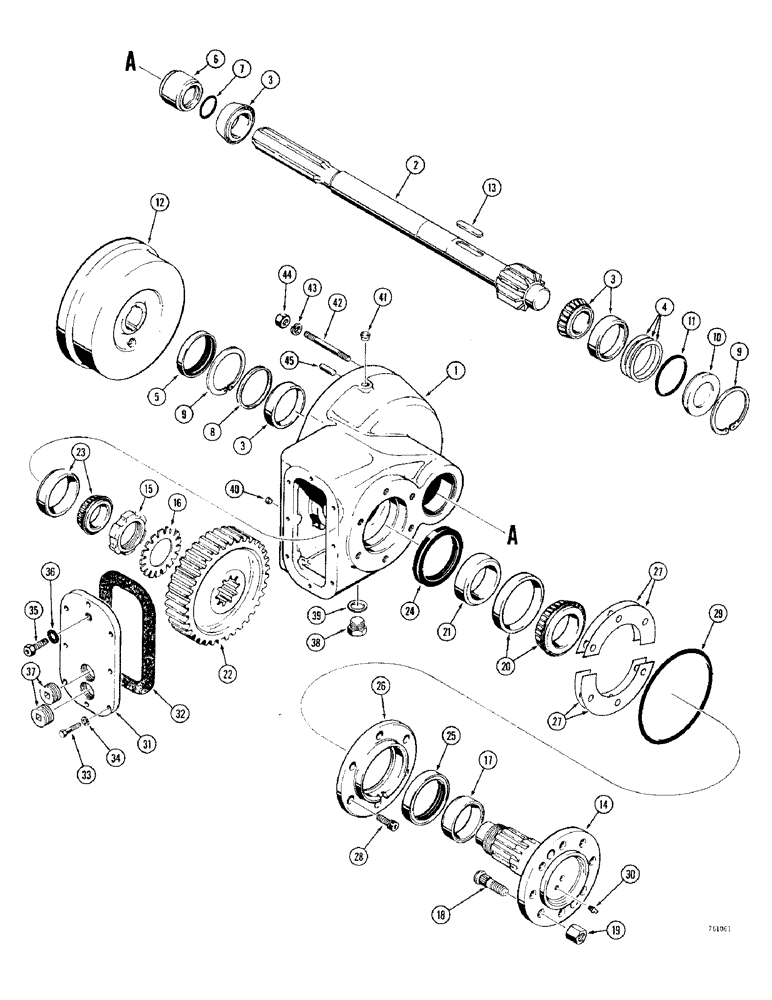

Запчасти Case 380CK (098) - REAR AXLE AND FINAL DRIVE (06) - POWER TRAIN

1

K946702

GEAR

CASE - differential

2шт.

2

K946799

GEAR-SET

SHAFT - spur pinion

2шт.

3

K19186

BEARING, ROLLER

BEARING - tapered roller, includes cup and cone

4шт.

4

K907514

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

4

K907515

SHIM,.010" Thk

(0.254 mm) .010" Thk

1шт.

5

K623455

SEAL

- oil

2шт.

6

K946703

COLLAR

2шт.

7

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

2шт.

8

K904256

SPACER

2шт.

9

K13042

RING, SNAP

RING - retaining

4шт.

10

K929045

COVER

- end

2шт.

11

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

12

K917989

BRAKE

DRUM - brake

2шт.

13

K622324

KEY

- 11/32" x 1/2" x 2-1/2", brake drum

2шт.

14

K963569

SHAFT ASSY.

SHAFT - final drive, Includes: Ref. 15 - 17

2шт.

15

K13368

NUT

- special, 2-1/4" ring

1шт.

16

K13367

WASHER

- special tab

1шт.

17

K905287

SPLIT COLLAR

COLLAR

1шт.

18

K611266

BOLT

- special, wheel mounting

16шт.

19

K617171

WHEEL NUT

- 5/8"-11 NF, wheel mounting, special

16шт.

20

K19185

TAPERED BEARING

BEARING - tapered roller, includes cup and cone

2шт.

21

K929048

SLEEVE

- final drive shaft

2шт.

22

K946663

WHEEL

GEAR - spur, 8.608" O.D., 37 teeth, 10 I.D. splines

2шт.

23

K19186

BEARING, ROLLER

BEARING - tapered roller, includes cup and cone

2шт.

24

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

- oil, inner

2шт.

25

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

- oil, outer

2шт.

26

K929044

HOUSING

- oil seal

2шт.

27

K902772

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

27

K902773

SHIM,.006" Thk

(0.152 mm) .006" Thk

1шт.

27

K902774

SHIM,.009" Thk

(0.229 mm) .009" Thk

1шт.

27

K902775

GASKET

SHIM - .015" (0.381 MM)

1шт.

27

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- .030" (0.762 MM)

1шт.

28

K606894

SCREW

BOLT - 7/16"-14 NC

12шт.

29

K623537

O-RING,6.475" ID x 7.025" OD x 0.275"

- housing to case

2шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

31

K921755

COVER

- case

2шт.

32

K923220

GASKET

- cover

2шт.

33

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

16шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

16шт.

35

K907203

PLUG

- vent, 1/2"-13 NC

2шт.

36

K19501

WASHER

WASHER - sealing, 1/2"

2шт.

37

K12362

PLUG

- tapered, 1" BSP

4шт.

38

K623825

PLUG

- flanged, 1/2" BSP

2шт.

39

K626793

WASHER

- sealing, 7/8"

2шт.

40

353-7

PLUG,Cap, .458" OD

- plastic

6шт.

41

353-10

PLUG,Cap, .547" OD

- plastic

2шт.

42

K608417

STUD

- 1/2"-13 NC x 3-3/4"

20шт.

43

92-8

LOCK WASHER,1/2"

20шт.

44

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

20шт.

45

K11482

PIN

DOWEL - 7/16" x 1-1/4"

4шт.
