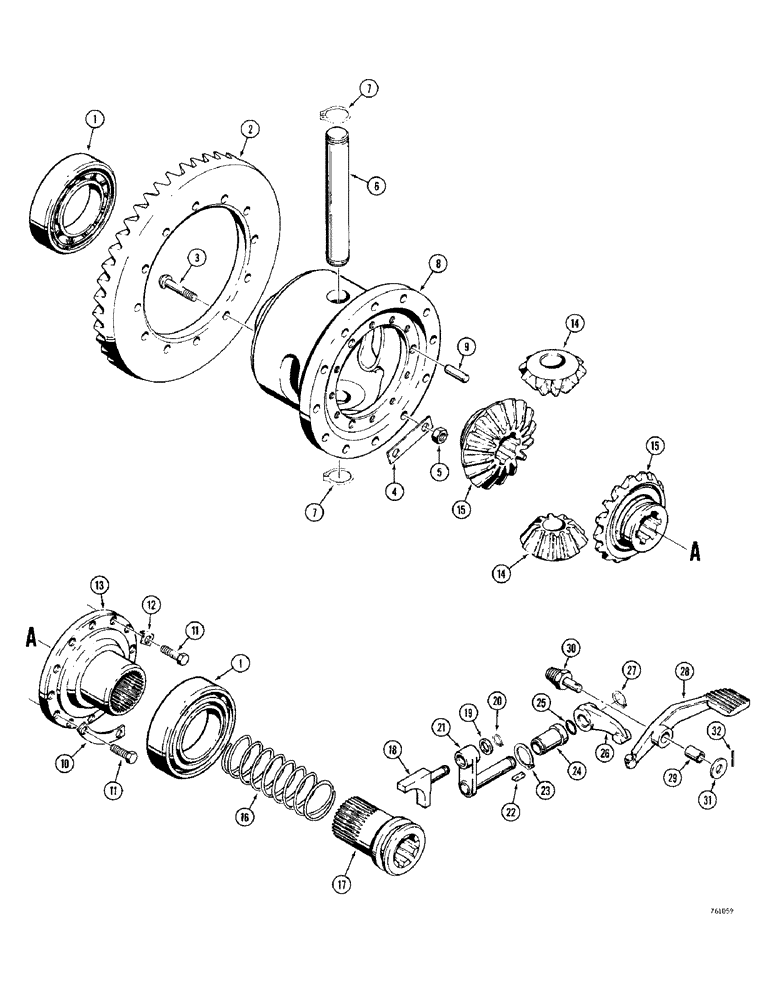

Запчасти Case 380CK (092) - DIFFERENTIAL AND DIFFERENTIAL LOCK (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

DIFFERENTIAL ASSEMBLY, Inlcudes: Ref. 1 - 15

1шт.

1

K19010

BALL BEARING

BEARING - ball

2шт.

2

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

3

K905664

WHEEL BOLT

- special, 7/16"-14 NC

12шт.

4

K30236

WASHER

PLATE - tab

6шт.

5

25-107

NUT,7/16"-14, G5

- hex, 7/16"-14 NC

12шт.

6

K942318

PIN

- side gears

1шт.

7

K12207

RING, SNAP

RING - retaining, side gear pin

2шт.

8

K942316

DIFFERENTIAL

CAGE - differential

1шт.

9

K621801

PIN

DOWEL -, Serial Range: cage-carrier

3шт.

10

K903185

WASHER

- tab, dowel pin

3шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

9шт.

12

K626372

WASHER

PLATE - tab

3шт.

13

K903184

FLANGE

PLATE - end, cage

1шт.

14

K942317

DIFFERENTIAL

GEAR - side bevel, 10 teeth, must be used in pairs

2шт.

15

K30234

CONE PINION

GEAR - axle drive bevel, 16 teeth

2шт.

16

K625119

SPRING

- return, differential lock

1шт.

17

K903191

SLEEVE

- locking, differential lock

1шт.

18

K903226

SELECTOR

FORK - selector, differential lock

1шт.

19

K626674

WASHER

- special, 1/2", differential lock

1шт.

20

K11302

RING, SNAP

RING - retaining, selector fork, differential lock

1шт.

21

K903197

SHAFT

LEVER - inner, differential lock

1шт.

22

K622309

KEY

- 3/16" x 5/32" x 3/4", differential lock

1шт.

23

K34454

RING, SNAP

RING - retaining, bushing, differential lock

1шт.

24

K903494

BUSHING

- rear axle housing, differential lock

1шт.

25

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- seal, differential lock

1шт.

26

K903228

LEVER

- outer, differential lock

1шт.

27

K11797

RING, SNAP

RING - retaining, lever, differential lock

1шт.

28

K962631

PEDAL

- differential lock, Includes: Ref. 29

1шт.

29

K621346

BUSHING

- pedal, differential lock

1шт.

30

K919577

PIN

- pedal pivot, differential lock

1шт.

31

K626674

WASHER

- special, 1/2", differential lock

1шт.

32

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Differential lock 1/8" x 1", Slotted

1шт.

K964905

WHEEL

GEAR SET - ring gear and pinion, includes items 31 and 34 on Figure 90 and item 2 on Figure 92, differential lock

1шт.
