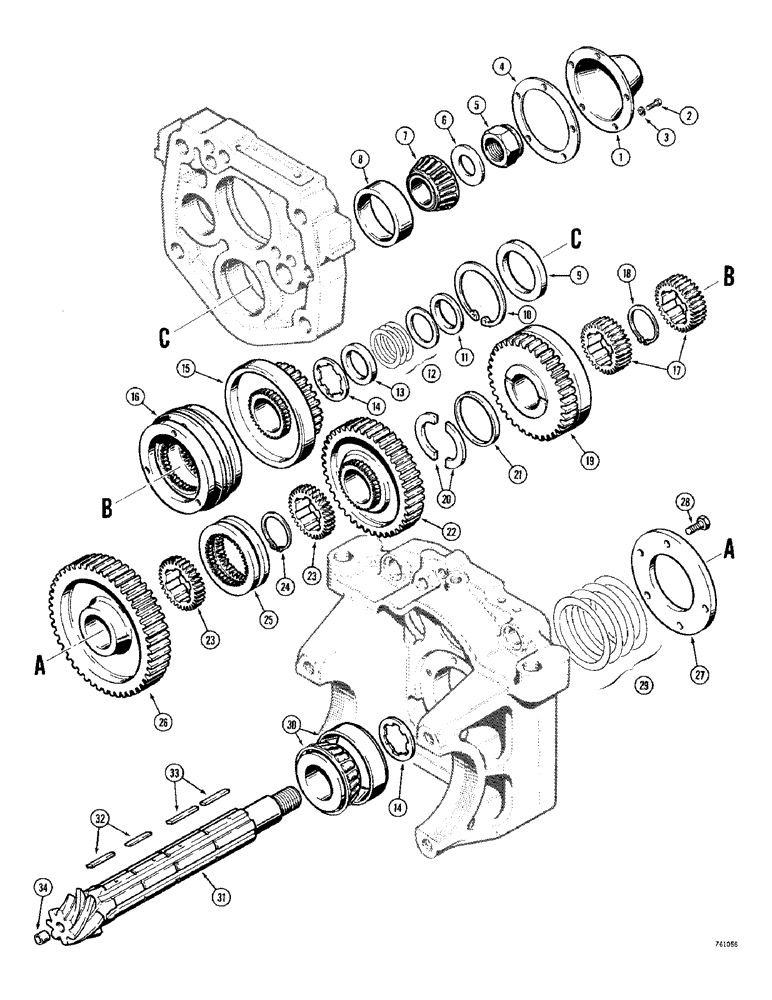

Запчасти Case 380CK (090) - TRANSMISSION, PINION SHAFT (06) - POWER TRAIN

1

K946426

COVER

- shaft end, front

1шт.

2

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

4

K946427

GASKET

- end cover

1шт.

5

K622803

NUT

- hex, lock, 1-1/8" BSF, left hand

1шт.

6

K14687

WASHER

- special, 1-1/8"

1шт.

7

A16795

ROLLER BEARING,1.375" ID x 1.125"

CONE - bearing

1шт.

8

A16794

BEARING CUP

CUP - bearing

1шт.

9

K627253

BUSHING

SPACER - bearing

1шт.

10

K17023

CIRCLIP

RING - retaining

1шт.

11

K917844

BUSHING

WASHER - stop

1шт.

12

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- .002" (0.051 MM) Thick

1шт.

12

K917846

SHIM

- .005" (0.127 MM) Thick

1шт.

12

K917847

SHIM

- .010" (0.254 MM) Thick

1шт.

12

K917848

SHIM

- .030" (0.762 MM) Thick

1шт.

13

K627203

BUSHING

SPACER - fourth gear

1шт.

14

K926249

WASHER

RING - special, with spline tabs

2шт.

15

K948003

GEAR

- fourth

1шт.

16

K928223

GEAR

COLLAR - shifting

1шт.

If dealer is looking for three pins, part number is k946044 and is NSS.

1шт.

17

K928226

GEAR

- synchronizer

2шт.

18

K12922

RING, SNAP

RING - retaining, synchronizer

1шт.

19

K942672

GEAR

- third, 35 tooth

1шт.

20

K946653

RING

- split, includes two pieces

1шт.

21

K946654

RING

- keeper

1шт.

22

K946649

DRIVE

GEAR - second

1шт.

23

K946651

GEAR

- synchronizer

2шт.

24

K12922

RING, SNAP

RING - retaining, synchronizer

1шт.

25

K946652

CLUTCH

COLLAR - shifting

1шт.

26

K948004

GEAR

- first

1шт.

27

K948006

COVER

PLATE - bearing retaining

1шт.

28

K603043

SCREW

BOLT - 7/16"-14 NC x 1"

5шт.

29

K942872

SHIM

- .002" (0.051 MM) Thick

1шт.

29

K942873

SHIM

- .003" (0.076 MM) Thick

1шт.

29

K942874

SHIM

- .010" (0.254 MM) Thick

1шт.

29

K942875

SHIM

- .030" (0.762 MM) Thick

1шт.

30

K620131

ROLLER

BEARING ASSEMBLY - cup and cone

1шт.

31

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

Part of gear set, P/N K964905

1шт.

32

K946650

BUSHING

PAD - spacer, first and second gears, 1-7/16" (36.5 MM) Long

12шт.

33

K928621

WEAR PAD

PAD - spacer, third and fourth gears, 1-5/8" (41.3 MM) Long

12шт.

34

K943834

BUSHING

SLEEVE - pinion shaft ends

2шт.

Part of gear set, P/N K964905

1шт.

K964905

WHEEL

GEAR SET - ring gear and pinion, includes items 31 and 33 on Figure 90 and item 2 on Figure 92

1шт.
