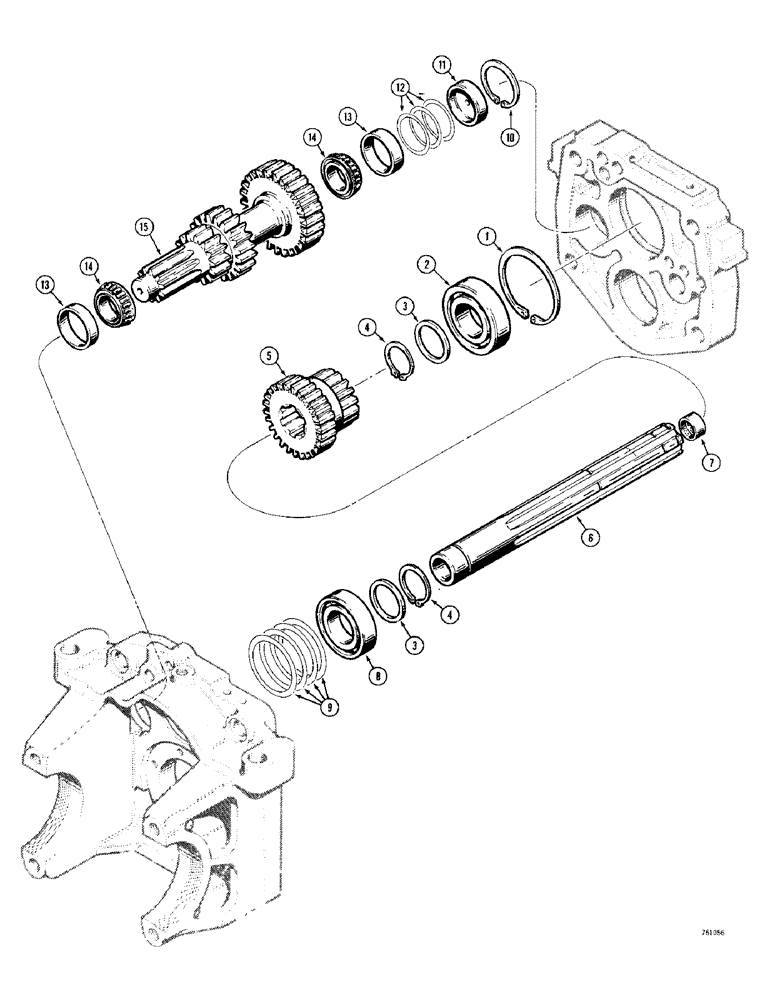

Запчасти Case 380CK (088) - TRANSMISSION, INPUT SHAFT AND RANGE SHAFT (06) - POWER TRAIN

1

K16296

RING

- retaining, input drive shaft bearing

1шт.

2

K19081

BALL BEARING

BEARING - input drive shaft to separator plate

1шт.

3

K940671

WASHER

- spacer

2шт.

4

K12922

RING, SNAP

RING - retaining, bearing

2шт.

5

K948819

GEAR

ASSEMBLY - high - low

1шт.

6

K946541

DRIVE SHAFT

SHAFT - input drive, drive

1шт.

7

K24774

BUSHING

- input drive shaft

1шт.

8

K19047

BALL BEARING

BEARING - input drive shaft to rear housing

1шт.

9

K908372

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

9

K908373

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

9

K908374

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

10

K621483

RING, SNAP

RING - retaining

1шт.

11

K948802

BUSHING

SPACER - range shaft bearing

1шт.

12

K914702

SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk

(0.051 mm) .002" Thk

1шт.

12

K914703

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

12

K914704

SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk

(0.178 mm) .007" Thk

1шт.

12

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

(0.254 mm) .010" Thk

1шт.

13

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, range shaft

2шт.

14

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, range shaft

2шт.

15

K948002

GEARBOX ASSY

SHAFT - range

1шт.
