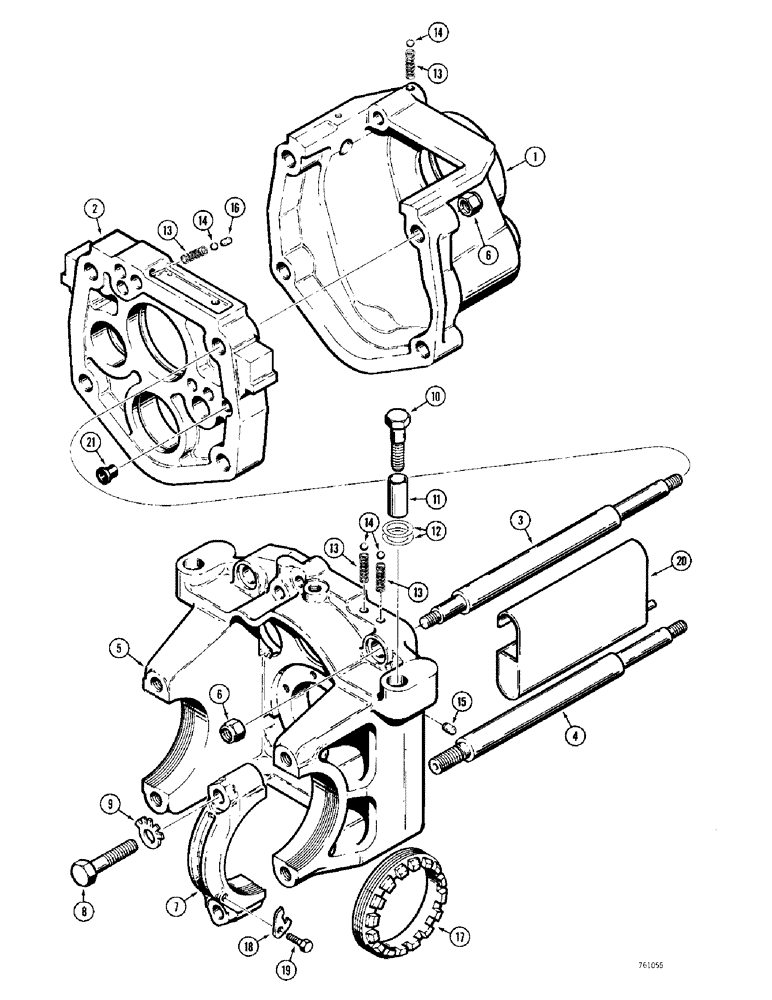

Запчасти Case 380CK (084) - TRANSMISSION, FRONT AND REAR HOUSINGS (06) - POWER TRAIN

1

K948124

HOUSING

- front, shuttle

1шт.

2

K946422

PLATE

- separator

1шт.

3

K946441

BUSHING

BOLT - tie, front and rear housing, upper

2шт.

4

K946442

BUSHING

BOLT - tie, front and rear housing, lower

2шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - rear, transmision and differential

1шт.

Part of rear housing assembly, P/N K964906

1шт.

6

K607331

NUT

- hex, lock, 5/8"-11 NC

6шт.

7

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

Part of rear housing assembly, P/N K964906

1шт.

8

K601240

BOLT

- 5/8"-11 NC x 3-1/4"

4шт.

9

K626389

BEARING WASHER

WASHER - tab

4шт.

10

K601306

BOLT

- special, 5/8"-11 NC

2шт.

11

K920656

BUSHING

BUSHING - spacer

2шт.

12

K626239

SHIM,.010" Thk

(0.254 mm) .010" Thk

1шт.

13

K13507

SPRING

- gear detent

4шт.

14

211-210

BALL,3/8" Dia

- steel, detent, 3/8"

4шт.

15

K30430

LOCKING DEVICE

PLUG - interlock, gear

1шт.

16

K915492

DOWEL

PLUG - interlock, range

1шт.

17

K15007

RING, LOCKING

NUT - special, adjusting

2шт.

18

K626420

WASHER

PLATE - lock

2шт.

19

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

20

K948120

TROUGH

OILER - shuttle

1шт.

21

K949694

BUSHING

- oiler tube

1шт.

K964906

PLATE

HOUSING ASSEMBLY - rear, includes item 5, 7, and 8 above

1шт.
