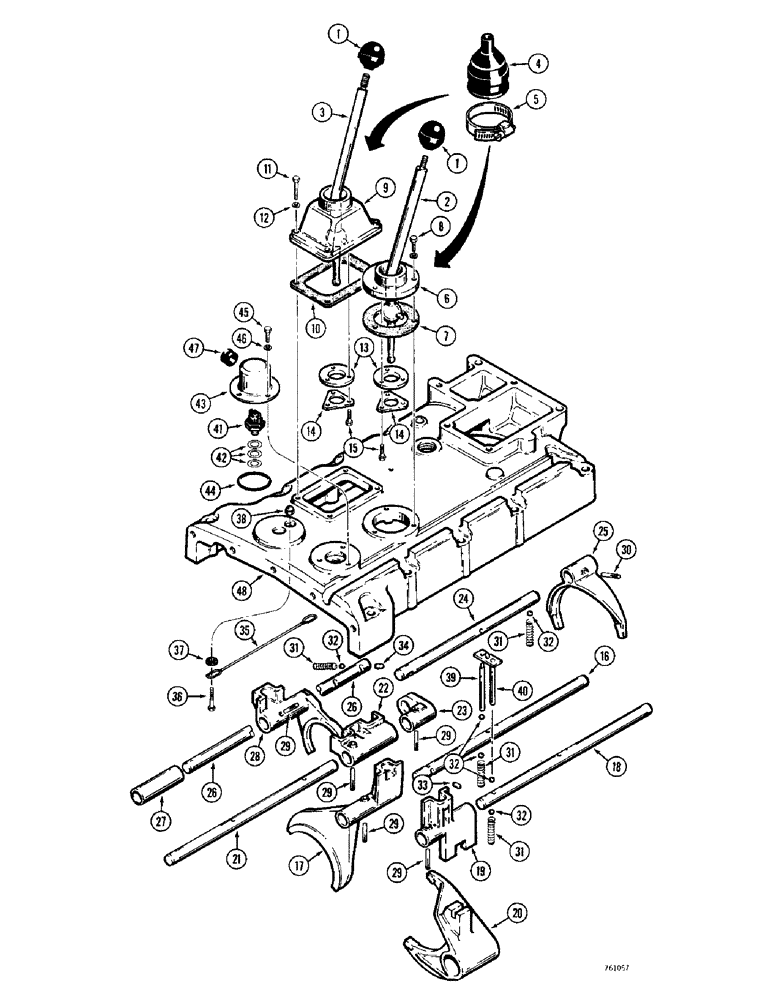

Запчасти Case 380CK (082) - TRANSMISSION, CONTROL LEVERS, SHIFTING FORKS AND COVER (06) - POWER TRAIN

1

K902270

KNOB

- control levers

2шт.

2

K943284

CONTROL LEVER

LEVER - gear shift control

1шт.

3

K948835

SELECTOR

LEVER - range and direction

1шт.

4

K929631

BOOT

COVER - rubber

2шт.

5

K621957

HOSE

CLAMP - boot seal

2шт.

6

K929630

HOUSING

- gear shift lever ball

1шт.

7

K901835

GASKET

- housing to transmission cover

1шт.

8

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

9

K929629

BALL

HOUSING - range shift lever

1шт.

10

K915597

GASKET,0.2mm Thk

- housing to transmission cover

1шт.

11

13-418

BOLT,Hex, 1/4" - 20 x 1-1/8", Gr 5

4шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

13

K903074

SUPPORT

PLATE - support

2шт.

14

K904386

WASHER

- tab, support, Serial Range: plate-housings

2шт.

15

K603630

SCREW

- support, Serial Range: plate-housing

6шт.

16

K946968

SELECTOR

ROD - selector, first and second

1шт.

17

K948920

SELECTOR

FORK - selector

1шт.

18

K946969

SELECTOR

ROD - selector, third and fourth

1шт.

19

K948921

SELECTOR

JAW - selector

1шт.

20

K926310

SELECTOR

FORK - selector

1шт.

21

K946971

ROD

- selector, forward and reverse

1шт.

22

K928572

SELECTOR

JAW - selector

1шт.

23

K946967

BLOCK

- shift

1шт.

24

K946972

ROD

- shift, forward and reverse

1шт.

25

K946966

FORK

- shift

1шт.

26

K946970

ROD

- selector, high and low range

1шт.

27

K946973

BUSHING

SPACER - rod

1шт.

28

K946965

SELECTOR

FORK - selector

1шт.

29

K623748

PIN

- Mills, 3/16" x 1-1/8"

5шт.

30

K623776

GROOVED PIN,1/4" x 1 1/8", Type A

PIN, Grooved, 1/4" x 1 1/8", Mills

1шт.

31

K13507

SPRING

- gear detent

4шт.

32

211-210

BALL,3/8" Dia

- steel, detent, 3/8"

6шт.

33

K30430

LOCKING DEVICE

PLUG - interlock gear

1шт.

34

K915492

DOWEL

PLUG - interlock, range

1шт.

35

K914348

SPRING

- range lever

1шт.

36

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

37

K12256

WASHER

- fiber, 1/4"

2шт.

38

K607251

NUT

- domed, 1/4"-20 NC

2шт.

39

K945208

PLUNGER

- lower

1шт.

40

K945204

PLUNGER

- upper

1шт.

41

K940288

SWITCH

- neutral start

1шт.

42

K626895

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

42

K626858

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

42

K626894

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

43

K940284

COVER

- neutral start switch

1шт.

44

K15535

O-RING,1.484" ID x 1.762" OD x 0.139"

- cover

1шт.

45

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

46

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

47

K627727

GROMMET

- switch cover

1шт.

48

REF

INSTRUCTION

COVER - transmission, for cover, dipstick and related parts, see Figure 72

1шт.
