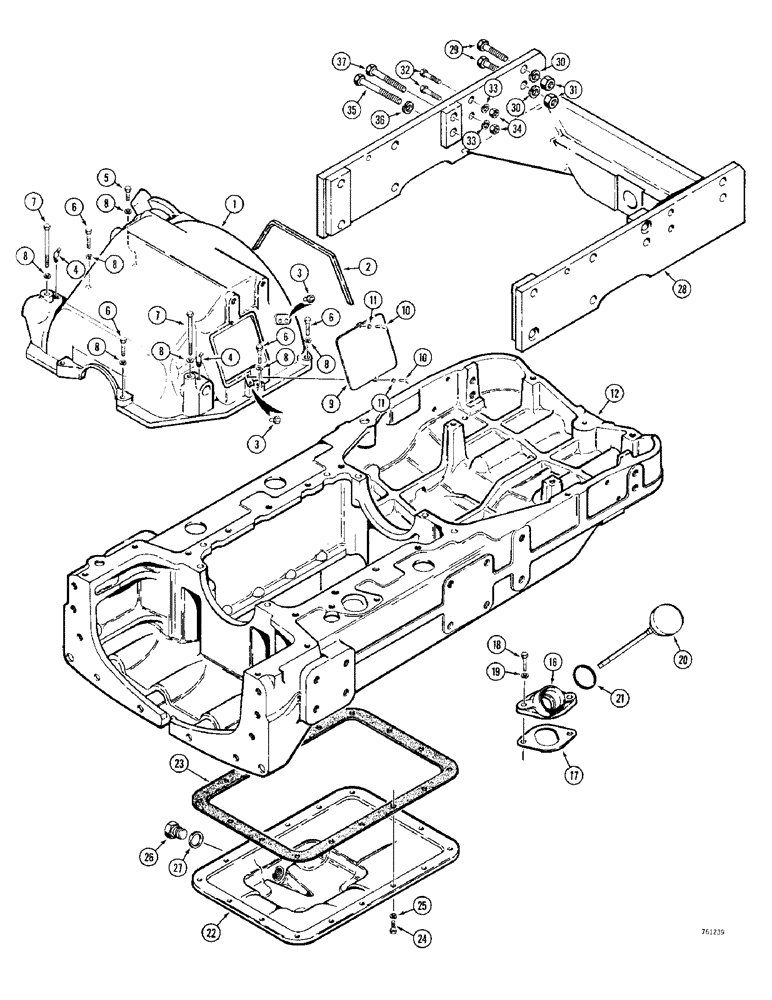

Запчасти Case 380CK (074) - CLUTCH HOUSING AND FRONT FRAME (06) - POWER TRAIN

1

K942278

CLUTCH

HOUSING - clutch

1шт.

Where the shaft goes through Ref. 1 housing, there is no bushing.

1шт.

2

K929668

STRIP

GASKET - clutch housing

1шт.

3

353-4

PLUG,Cap, .366" OD

- plastic, clutch housing

3шт.

4

K690973

FITTING

- grease, 45 degrees, 1/4"-28 NF

2шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Housing to frame Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8"-16 NC x 1-1/2", housing to frame

4шт.

7

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8"-16 NC x 4-1/4", housing to frame

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

9

K89387

COVER

PLATE - inspection, clutch housing

1шт.

10

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

K948854

FRAME

- front

1шт.

16

K902042

FILLER

TUBE - oil dipstick and fill

1шт.

17

K902043

SEAL

- fill, Serial Range: tube-frame

1шт.

18

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

K912773

DIPSTICK

CAP - includes dipstick

1шт.

21

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- cap

1шт.

22

K907339

COVER

PAN - engine oil

1шт.

23

K907585

GASKET

- oil pan

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, see Figure 018

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

16шт.

26

K623825

PLUG

- drain, 1/2" BSP

1шт.

27

K626793

WASHER

- sealing

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, see Figure 018

1шт.

28

K948855

BRACKET

- front frame

1шт.

29

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

30

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

129-107

NUT,5/8"-11, G5

4шт.

32

113-323

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

33

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

34

129-104

NUT,7/16"-14, G5

4шт.

35

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

HHCS - 5/8"-11 NC x 2-1/4", bottom

2шт.

36

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

37

K601335

BOLT

- special locating, 5/8"-11 NC x 1-7/8"

2шт.
