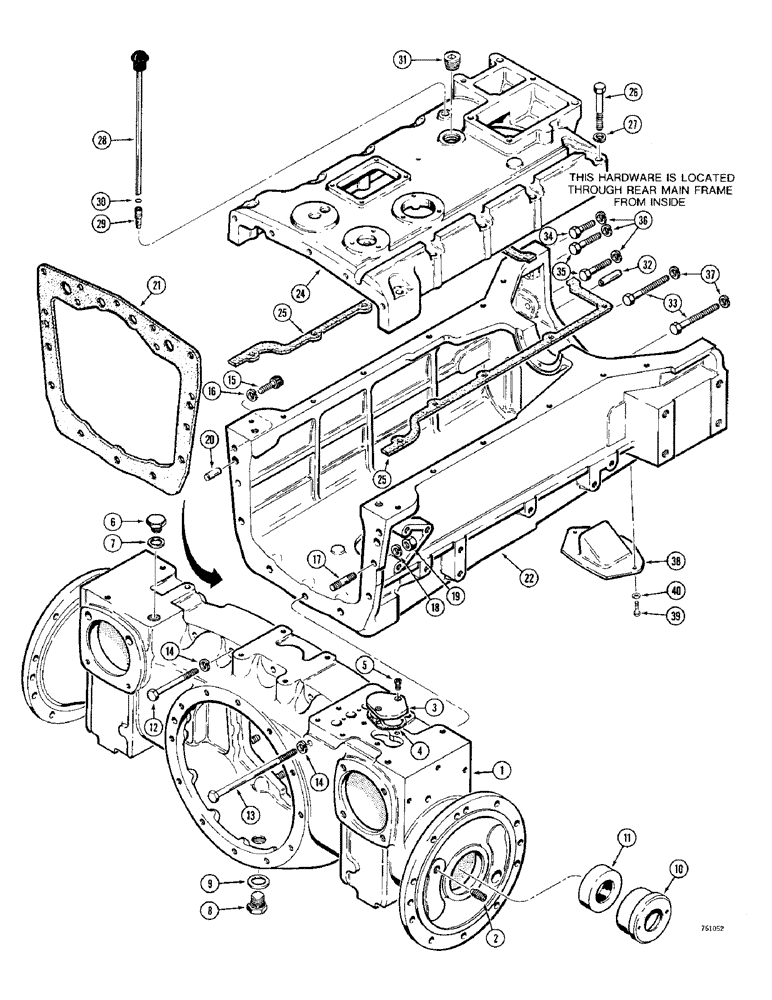

Запчасти Case 380CK (072) - REAR AXLE HOUSING AND REAR FRAME (06) - POWER TRAIN

1

K924785

SHAFT

HOUSING - rear axle

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - special, housing

2шт.

3

K929463

COVER

PLATE - cover

1шт.

4

K929464

GASKET

- cover plate

1шт.

5

K604089

SCREW

- special, 5/16"-18 NC x 5/8"

2шт.

6

K619528

PLUG

- 7/8"-9 NF

1шт.

7

K30085

GASKET

WASHER - fiber

1шт.

8

K623826

PLUG

- drain, 3/4" BSP

1шт.

9

K626315

WASHER

- sealing, drain plug

1шт.

10

K920444

HOUSING

- oil seal

2шт.

11

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

- oil

2шт.

12

113-352

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

4шт.

13

13-7124

BOLT,Hex, 7/16" - 14 x 7-3/4", Gr 5

HHCS - 7/16"-14 NC x 7-3/4"

1шт.

14

92-7

LOCK WASHER,7/16"

WASHER - lock, 7/16"

5шт.

15

61-720

HEX SOC SCREW,7/16"-14 x 1 1/4"

SCREW - socket hd., 7/16"-14 NC x 1-1/4"

2шт.

16

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

17

K608318

STUD

- 7/16"-14 NC x 2"

7шт.

18

92-7

LOCK WASHER,7/16"

WASHER - lock, 7/16"

7шт.

19

25-107

NUT,7/16"-14, G5

- 7/16"-14 NC

7шт.

20

K621826

PIN

DOWEL - housing to rear frame

2шт.

21

K926122

GASKET,0.25mm Thk

- housing to rear frame

1шт.

22

K929250

FRAME

- rear main, for selectamatic oil pan see Figure 104

1шт.

23

K623789

PLUG

- core, 1", if used, not shown

2шт.

24

K948945

COVER

- transmission, for gear shift levers and neutral start switch see Figure 82

1шт.

25

K929663

GASKET,0.2mm Thk

- transmission, Serial Range: cover-frame

2шт.

26

13-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

10шт.

27

92-7

LOCK WASHER,7/16"

WASHER - lock, 7/16"

10шт.

28

K947615

DIPSTICK

- transmission

1шт.

29

K942348

SLEEVE

- dipstick

1шт.

30

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

- dipstick

1шт.

31

K12362

PLUG

- 1" BSP, transmission cover

1шт.

32

K621852

PIN

DOWEL - rear frame to front frame

2шт.

33

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

4шт.

34

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

35

13-734

BOLT,Hex, 7/16" - 14 x 2-1/8", Gr 5

HHCS - 7/16"-14 NC x 2-1/8"

4шт.

36

92-7

LOCK WASHER,7/16"

WASHER - lock, 7/16"

10шт.

37

25-107

NUT,7/16"-14, G5

- hex, 7/16"-14 NC

4шт.

38

K947404

COVER

- bottom of clutch housing

1шт.

39

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

40

K19470

WASHER

- flat, 1/4", special

2шт.
