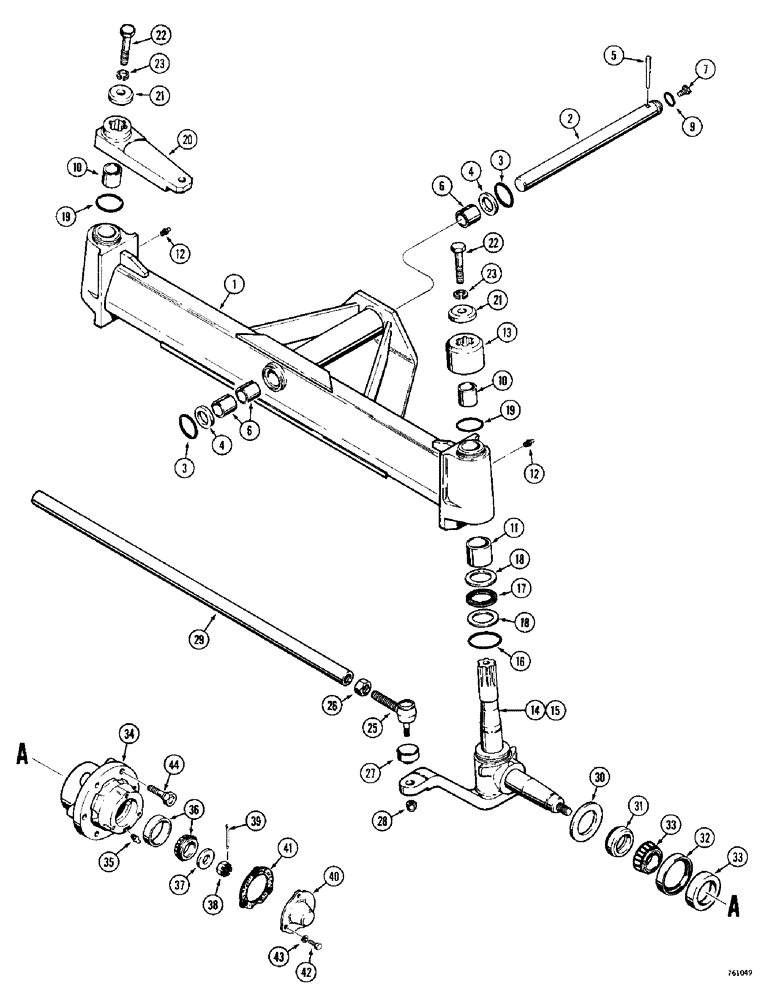

Запчасти Case 380CK (066) - FRONT AXLE (05) - STEERING

1

K964908

BEAM

AXLE - front

1шт.

2

K949447

TRUNNION

PIN - axle pivot

1шт.

3

K15264

O-RING,1.109" ID x 1.387" OD x 0.139"

- trunnion seal

2шт.

4

K949448

WASHER

- special thrust

2шт.

5

K623774

PIN

- mills, 1/4" x 3"

1шт.

6

K11598

BUSHING

- trunnion

3шт.

7

K628100

PLUG

- special, 7/16"-14 NC

1шт.

9

K14508

O-RING,1.975" ID x 2.395" OD x 0.12"

RING - sealing, plug

1шт.

10

K621331

BUSHING

- upper

2шт.

11

K621367

BUSHING

- lower

2шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

13

K951372

PIN

BOSS - king pin

1шт.

14

K964909

SHAFT

SPINDLE AND KING PIN - L.H.

1шт.

15

K964902

SHAFT

SPINDLE AND KING PIN - R.H.

1шт.

16

K24764

O-RING

- king pin seal

2шт.

17

K620180

THRUST BEARING

BEARING - thrust

2шт.

18

K626692

DISC

WASHER - thrust

4шт.

19

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- king pin

2шт.

20

K951964

LEVER

ARM - steering

1шт.

21

K15595

WASHER

- special, 5/8"

2шт.

22

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

K908071

BALL JOINT

ASSEMBLY - tie rod, Inlcudes: Ref. 25 - 28

2шт.

THE LONG END HAS 3/4" RH THREAD. SHORT END HAS 1/2" THREAD. PART WITH LH THREAD IS K955528

1шт.

25

NSS

NOT SOLD SEPARAT

BALL JOINT - tie rod

1шт.

26

K622500

LOCK NUT

- special jam

1шт.

27

K961701

BOOT

COVER - rubber boot

1шт.

28

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, lock, 1/2"-20 NF

1шт.

29

K951335

ROD

- tie

1шт.

30

K910429

SPACER

SEAL - dirt

2шт.

31

K910428

RING RACE

SLEEVE - grease seal

2шт.

32

K623419

OIL SEAL

- grease

2шт.

33

K19186

BEARING, ROLLER

BEARING - inner

2шт.

34

K916377

HUB

- front wheel

2шт.

35

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

36

K19085

TAPERED BEARING,38.1mm ID x 72.02mm OD x 17.02mm W

BEARING - outer

2шт.

37

K626673

WASHER

- special, 3/4"

2шт.

38

K617157

NUT

- slotted, 3/4"-16 NF

2шт.

39

132-7

COTTER PIN,1/16" x 3/4"

PIN, Split (Cotter), 1/16" x 3/4"

2шт.

40

K908913

CAP

- hub

2шт.

41

K15344

GASKET,0.25mm Thk

- cap

2шт.

42

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

6шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

44

K600875

BOLT

- wheel, special tapered head

12шт.
