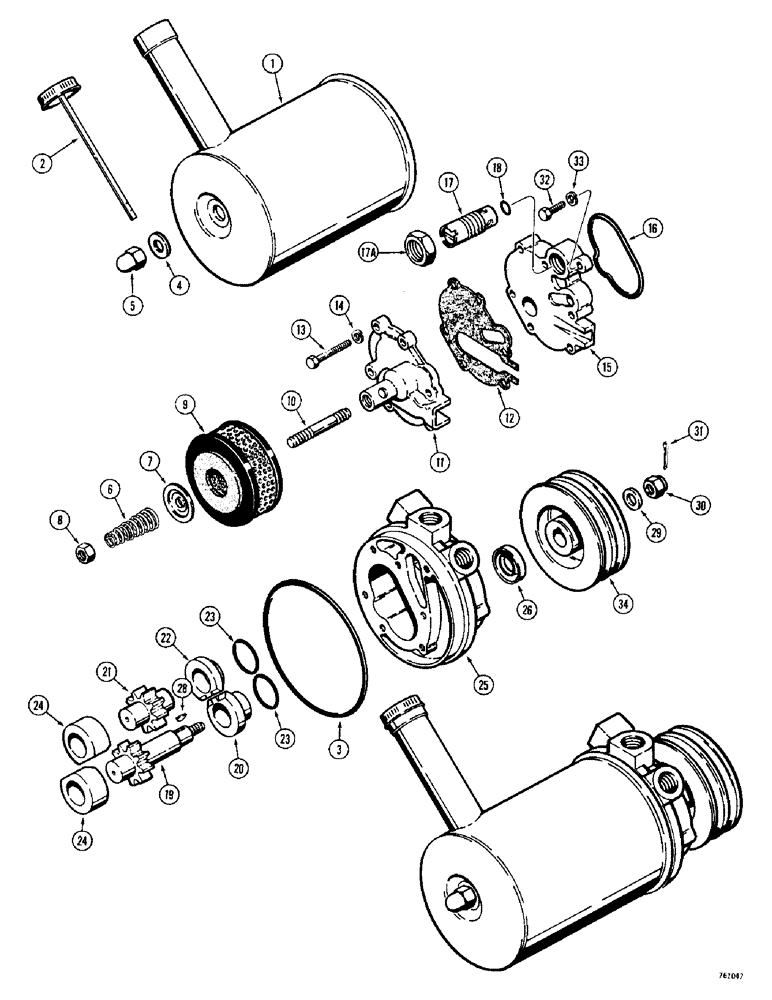

Запчасти Case 380CK (062) - STEERING PUMP (05) - STEERING
№
Артикул
Название
Примечание
Количество
K947345
PUMP
ASSEMBLY - power steering, Inlcudes: Ref. 1 - 33
1шт.
1
A35951
RESERVOIR
- oil
1шт.
2
A35967
GAUGE
CAP - reservoir, includes dipstick
1шт.
2
A35967AM
DIPSTICK
CAP - reservoir, includes dipstick
1шт.
3
A35965
O-RING,2.87mm Thk x 120.27mm ID
GASKET - reservoir
1шт.
4
A42164
WASHER,9.93mm ID x 25.4mm OD x 2.31mm Thk
- reservoir nut
1шт.
5
129-525
CROWN NUT,Crown, 3/8"-16
- acorn 3/8"-16 NC
1шт.
6
A35963
SPRING
- element tension
1шт.
7
A35962
CAP
SEAT - element spring
1шт.
8
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex, jam, 3/8"-16 NC
1шт.
9
A42242
FILTER, ELEMENT
ELEMENT - filter
1шт.
10
A35952
STUD
- 3/8" NC x 2-3/8"
1шт.
11
A35950
COVER
- pump, rear
1шт.
12
A35966
GASKET
- rear cover
1шт.
13
26-426
BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 8
- 1/4"-20 NC x 1-5/8", grade 8
6шт.
14
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
6шт.
15
A35949
COVER
- pump, intermediate
1шт.
16
A35959
O-RING,2.55" ID x 2.756" OD x 0.103"
O-RING - cover
1шт.
17
K964621
VALVE, PRESSURE RELI
VALVE ASSEMBLY - relief
1шт.
17a
K964592
NUT - lock, relief valve
1шт.
18
A42187
O-RING,0.426" ID x 0.566" OD x 0.07"
- relief valve
1шт.
19
A25593
GEAR
- driven
1шт.
20
A35957
BEARING
- gear, front
1шт.
21
A35954
GEAR
- idler
1шт.
22
A35955
BEARING
- idler gear front
1шт.
23
A35958
O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro
- body
2шт.
24
A35956
BEARING
- rear
2шт.
25
A35948
BODY
- front
1шт.
26
A50421
OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk
- oil
1шт.
28
126-109
WOODRUFF KEY,#3, 1/8" x 1/2", HT
1шт.
29
195-25
WASHER,3/8"
- flat, 3/8"
1шт.
30
F18390
NUT
- special, 3/8"-24 NF
1шт.
31
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
1шт.
32
26-414
BOLT,Hex, 1/4" - 20 x 7/8", Gr 8
HHCS - 1/4"-20 NC x 7/8", grade 8
1шт.
33
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
34
K947346
PULLEY
- steering pump
1шт.
Выбрано товаров: 36
