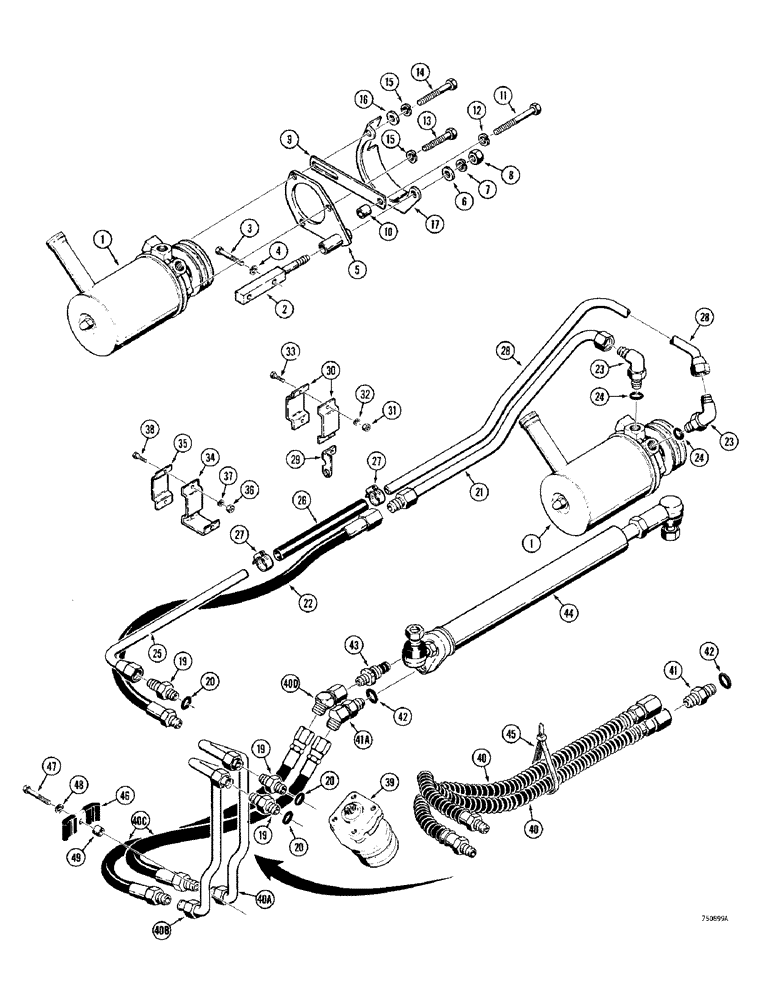

Запчасти Case 380CK (060) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

K947345

PUMP

- steering, parts list Figure 62

1шт.

2

K947348

SUPPORT

-, Serial Range: pump-engine

1шт.

3

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

HHCS - 3/8"-16 NC x 1-3/8", support mounting

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

K949042

MOUNTING PARTS

PLATE - pump mounting

1шт.

6

95-8

WASHER,1/2"

flat 1/2"

1шт.

7

92-8

LOCK WASHER,1/2"

1шт.

8

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

9

K947349

STRAP

- adjusting

1шт.

10

K627038

BUSHING

SPACER -, Serial Range: strap-engine

1шт.

11

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

12

92-5

LOCK WASHER,5/16"

1шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

14

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

16

195-104

WASHER,3/8"

- flat, , plated 3/8"

1шт.

17

K952370

GUARD

- pump pulley

1шт.

19

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

FITTING - straight connector, Inlcudes: Ref 20

3шт.

21

K949308

PIPE

TUBE - pressure, from pump

1шт.

22

K763069

HOSE

-, Serial Range: pressure,-valve

1шт.

23

K622114

FITTING

- 90 degrees adjustable, at pump, Inlcudes: Ref. 24

2шт.

25

K949306

PIPE

TUBE - return, from valve

1шт.

26

K949342

CONNECTOR, ELEC

HOSE - 1/2" (13 MM) x 9" (229 MM)

1шт.

27

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

28

K949309

PIPE

TUBE -, Serial Range: return,-pump

1шт.

K949654

CLAMP

ASSEMBLY - front, Inlcudes: Ref. 29 - 33

1шт.

29

K949655

BRACKET

- clamp

1шт.

30

K949304

PIPE

CLAMP - half

2шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

33

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

34

K949305

CLIP

CLAMP - half, rear, Serial Range: attaches-engine

1шт.

35

K949304

PIPE

CLAMP - half, rear clamp

1шт.

36

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

38

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

39

REF

INSTRUCTION

VALVE - steering, see Figures 56 and 58

1шт.

40

K945756

HOSE

- to cylinder, 32" (813" MM) Long, if used

2шт.

40a

K953208

PIPE

TUBE - from upper valve port, if used

1шт.

40b

K953207

PIPE

TUBE - from lower valve port, if used

1шт.

40c

K953206

HOSE

- to cylinder, 22" (559 MM) If used

2шт.

40d

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

FITTING - 45 degrees adjustable, if used

2шт.

41

K626039

FITTING

- straight connector, if used

1шт.

41a

K617750

FITTING

- 45 degrees, if used, Inlcudes: Ref. 42

1шт.

43

K945714

VALVE

- line, parts list Figure 64

1шт.

44

K945702

CYLINDER

- steering, parts list Figure 64

1шт.

45

K19928

CLIP

STRAP - tie

1шт.

46

R17319

CLAMP

- tube, if used

1шт.

47

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16"-18 NC x 1-1/4", if used

1шт.

48

92-5

LOCK WASHER,5/16"

if used 5/16"

1шт.

49

D33551

BUSHING

SPACER - tube clamp, if used

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

42

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- K626039 and K617750 fittings

1шт.
