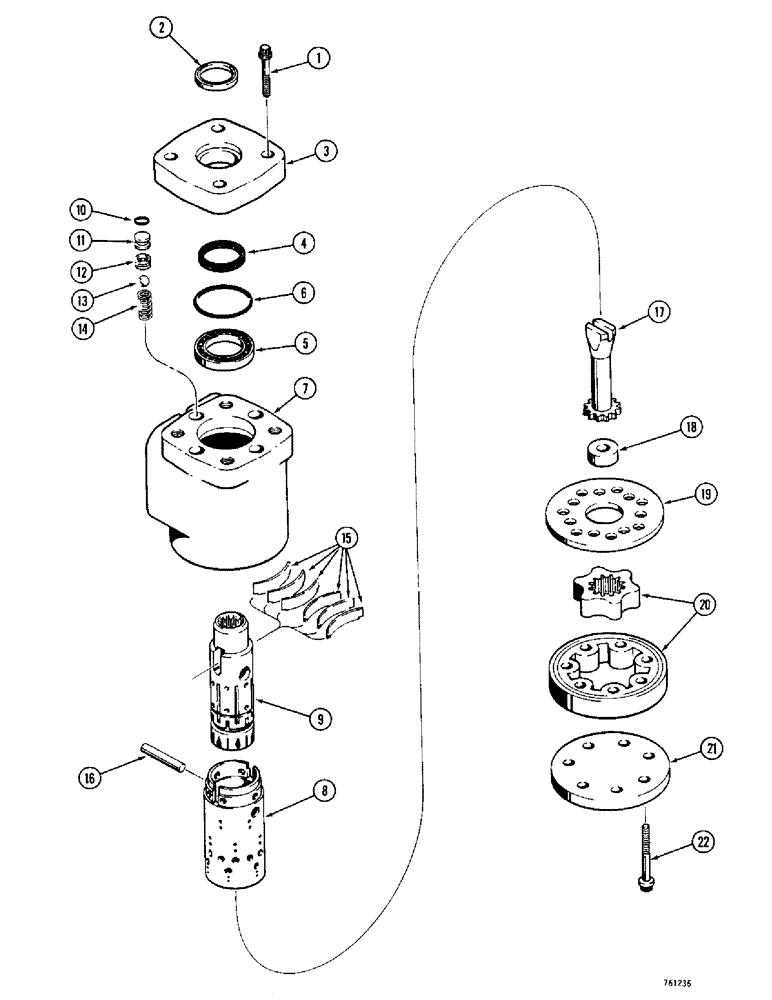

Запчасти Case 380CK (058) - K964189 STEERING VALVE (05) - STEERING

K964189

MOTOR

VALVE ASSEMBLY - steering, Char Lynn, Inlcudes: Ref. 1 - 22

1шт.

For models with Danfoss steering valve, see Figure 056 parts list.

1шт.

1

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

SCREW - flanged, 12 point, 5/16-18 NC x 5/8"

4шт.

2

A28211

OIL SEAL

- end plate

1шт.

Part of Steering Valve Seal Kit P/N H588830

1шт.

3

D46317

PLATE ASSY.

PLATE - shaft end

1шт.

4

A72029

RING

SEAL - quad ring

1шт.

Part of Steering Valve Seal Kit P/N H588830

1шт.

5

L35676

BEARING ASSY

BEARING ASSEMBLY - needle, complete

1шт.

6

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

- end plate to housing

1шт.

Part of Steering Valve Seal Kit P/N H588830

1шт.

L30884

CONTROL

PARTS KIT, Inlcudes: Ref. 7 - 16

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - valve

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

10

L30893

O-RING,1/16" Thk x 5/16" ID

- check valve, 7/16 x 5/16 x 1/16 in

1шт.

Part of Steering Valve Seal Kit P/N H588830

1шт.

11

L30892

PLUG

- check valve

1шт.

12

L30891

SEAT

- check valve

1шт.

13

211-101

BALL,1/4" Dia, Stainless

1шт.

14

L30890

VALVE SPRING

SPRING - check valve

1шт.

15

L30889

SPRING

- centering

6шт.

16

L30888

PIN

- centering

1шт.

17

L30878

DRIVE SHAFT

SHAFT - drive

1шт.

18

K964246

SPACER

- rotor set

1шт.

19

A72026

PLATE

- valve

1шт.

20

K964248

ROTOR SET - steering valve

1шт.

21

A43585

CAP

PLATE - closed end

1шт.

22

H189555

BOLT,M6 x 20mm, Cl 8.8

SCREW - flanged, 12 point, 5/16"-24 NF x 1-5/8"

7шт.

H588830

SEAL ASSY.

SEAL KIT - steering valve, Includes: Ref. 2, 4, 6 and 10

1шт.
