Запчасти Case 380CK (056) - K946083 STEERING VALVE (05) - STEERING

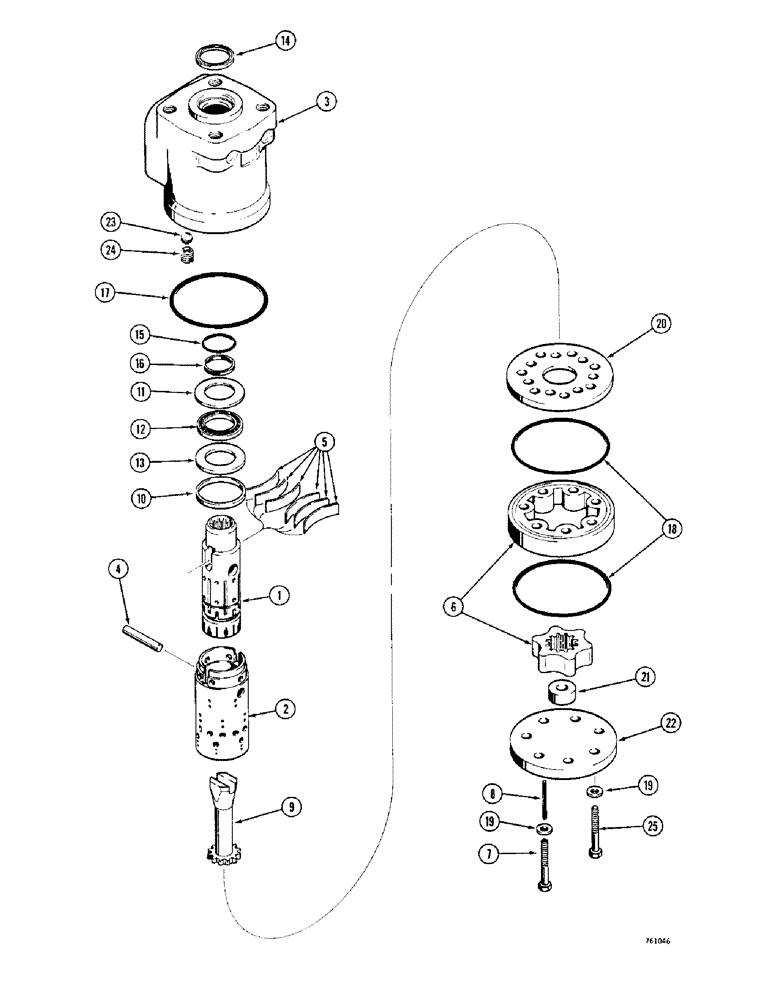

Схема запчастей Case 380CK - (056) - K946083 STEERING VALVE (05) - STEERING

Артикул

Название

Примечание

Количество

K946083

VALVE

ASSEMBLY - steering, DanfossWASHER - lock, 3/16", Inlcudes: Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL - selector

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - spool

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

4

K964161

PIN

- cross

1шт.

5

K964157

SPRING

- centering

6шт.

6

K964186

ROTOR SET - steering valve

1шт.

7

K964166

BOLT,M10 x 1.25 x 35mm, Cl 8.8

SCREW - special, drilled

1шт.

8

K964163

PIN

- roll, used with K964166 screw

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - drive

1шт.

10

K964156

RING

- retaining

1шт.

11

K964158

BEARING WASHER

WASHER - thrust

1шт.

12

K964159

BEARING

- needle

1шт.

13

K964160

BEARING

RACE - needle bearing

1шт.

K962387

GASKET KIT

KIT - seal, pump repair, Inlcudes: Ref. 14 - 19

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - shaft, outer

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - shaft, inner

1шт.

16

NSS

NOT SOLD SEPARAT

RING - Ken

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: housing-plate

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - rotor set

7шт.

19

NSS

NOT SOLD SEPARAT

WASHER - special sealing

6шт.

20

K964165

PLATE

- valve

1шт.

21

K964187

SPACER - rotor set

1шт.

22

K964164

COVER

CAP - end

1шт.

23

K964162

BALL

- check

1шт.

24

K964257

BUSHING - special, drilled plug

1шт.

25

K964259

SCREW - special

6шт.

Выбрано товаров: 27
