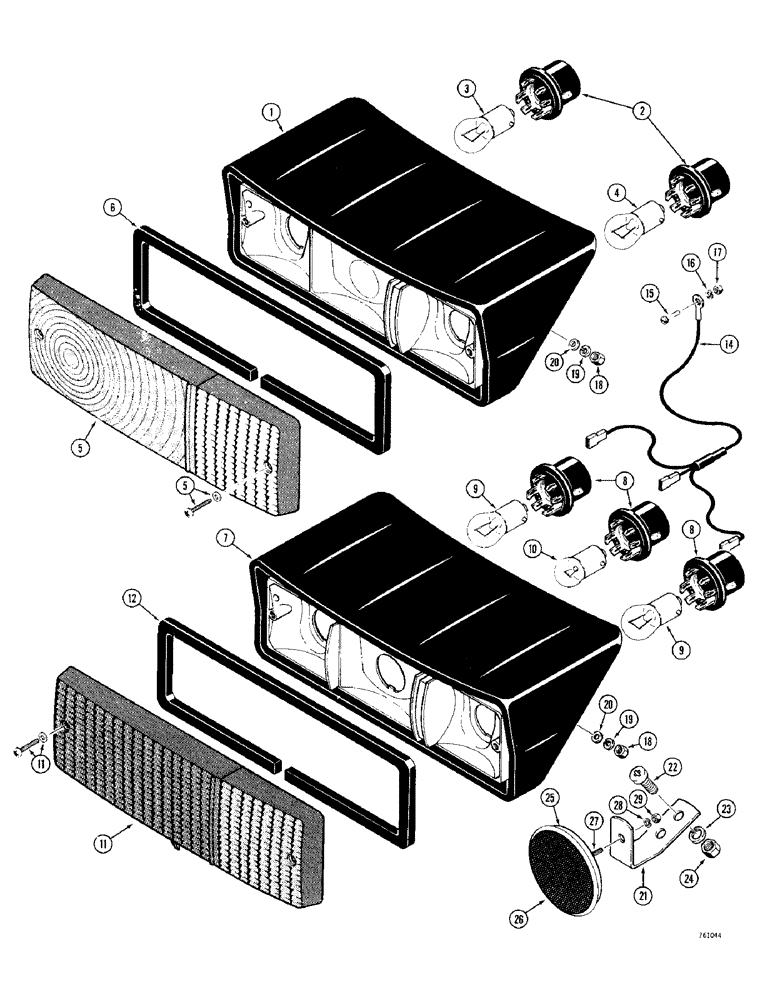

Запчасти Case 380CK (052) - SIDE AND FLASHER LIGHTS (04) - ELECTRICAL SYSTEMS

K948813

INDICATOR LIGHT

LAMP - side and flasher, R.H., Includes: Ref. 1 - 6

1шт.

K948814

WARNING LIGHT

LAMP - side and flasher, L.H., Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

K963508

ADAPTER

SOCKET - bulb

2шт.

3

K962762

BULB

- flasher, 12V 21W

1шт.

4

K962763

BULB

- side light, 12V 5W

1шт.

5

K963518

LENS

- R.H., includes washers and screws

1шт.

5

K963519

LENS

- L.H., includes washers and screws

1шт.

6

K963507

GASKET

GASKER - lens

1шт.

K948815

WARNING LIGHT

LAMP - stop, tail and flasher, R.H., Includes: Ref. 7 - 12

1шт.

K948816

LAMP

- stop, tail and flasher, L.H., Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

8

K963508

ADAPTER

SOCKET - bulb

3шт.

9

K962762

BULB

- brake and flasher, 12V 21W

2шт.

10

K962763

BULB

- tail, 12V 5W

1шт.

11

K963516

LENS

- R.H., includes washers and screws

1шт.

11

K963517

LENS

- L.H., includes washers and screws

1шт.

12

K963507

GASKET

- lens

1шт.

13

RESERVED

1шт.

14

K963509

CABLE

WIRE - ground

4шт.

15

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- pan head, no. 10-24 NC x 1/2", plated

4шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

17

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10-24 NC, plated

4шт.

18

K617080

NUT

- lamp to fender, no. 10-32 NF, plated

8шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

8шт.

20

K626310

WASHER

- flat, 3/16", plated

8шт.

21

K929468

BRACKET

- rear reflector

2шт.

22

K603924

SCREW

- Phillips head, 1/4"-20 NC x 1/2", plated

4шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

24

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

25

K964716

REFLECTOR

ASSEMBLY - service

2шт.

26

NSS

NOT SOLD SEPARAT

REFLECTOR, Includes: Ref. 27 - 29

1шт.

27

K603911

SCREW

- no. 8-32 NC x 3/4", plated, not serviced on original equipment reflectors

1шт.

28

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

29

129-16

NUT,#8-32

1шт.
